Brother DCP-8250DN Service Manual

3-38
Confidential
9.9.8 ADF separation pad spring / ADF separation pad
 Legal model

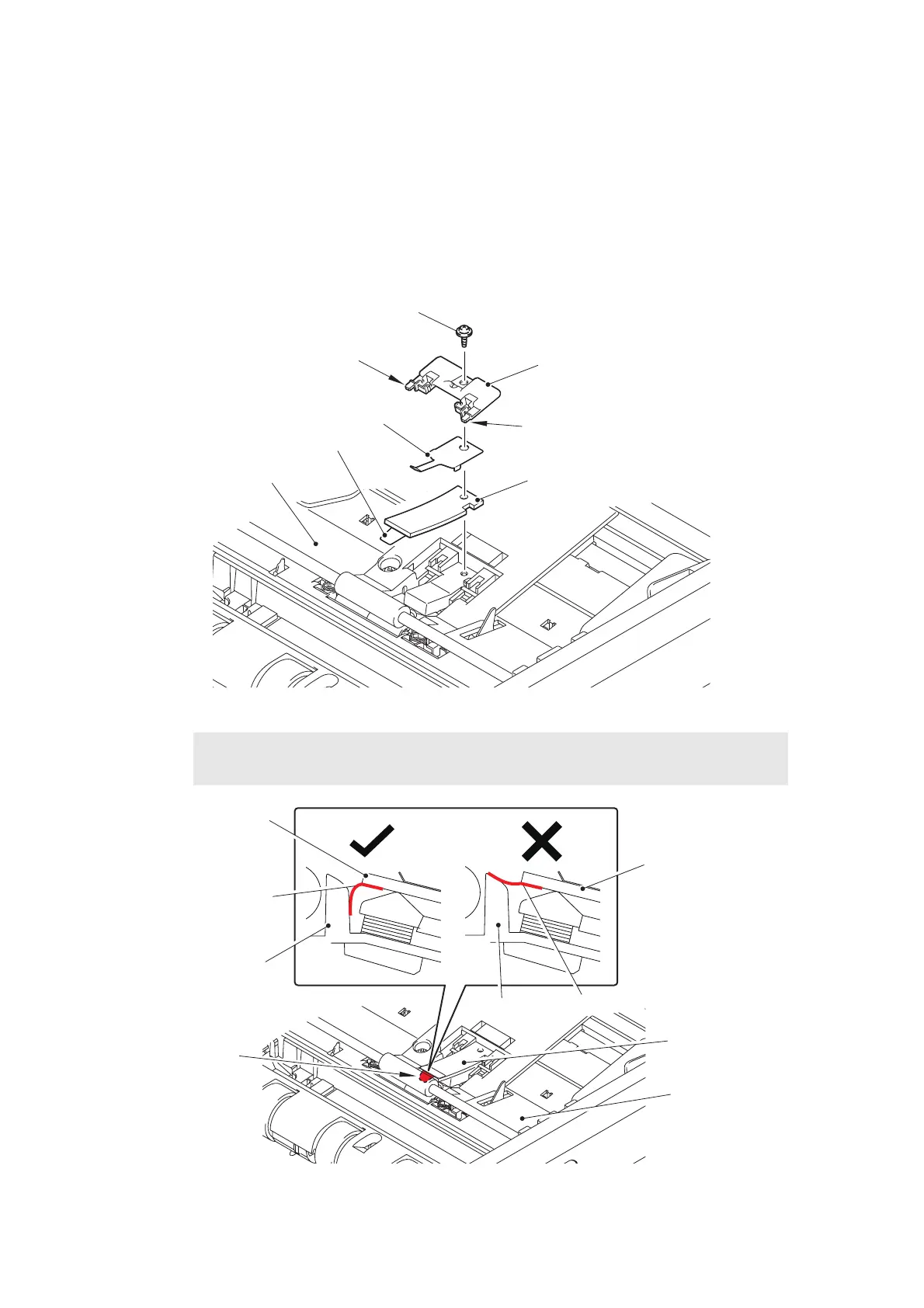

(1) Remove the taptite cup B M3x10 screw from the upper ADF chute.
(2) Release the two hooks, and remove the ADF separation pad holder from the upper ADF
chute.
(3) Remove the separation support film and the ADF separation pad from the upper ADF
chute.
Fig. 3-38
Fig. 3-39
Assembling Note:
• Noise may occur if the tip of the support film comes out of the upper ADF chute.
ADF separation pad
Upper ADF chute
Hook
ADF separation pad holder
Separation support film
Hook
Taptite cup B M3x10
Support film
ADF separation pad
ADF separation pad
Support film
Upper ADF chute
Support film
Upper ADF chute
ADF separation pad
Upper ADF chute
Support film
