Brother DSMOBILE 600 User Manual

Windows
®
Operation
8
1
INSTALLING HARDWARE
Do not connect the scanner to your computer until instructed to do so by the driver installation software. When
instructed to do so, connect the scanner cable as shown below and follow the instructions.
After you have installed the software, follow the steps below. Then, proceed to Calibration.

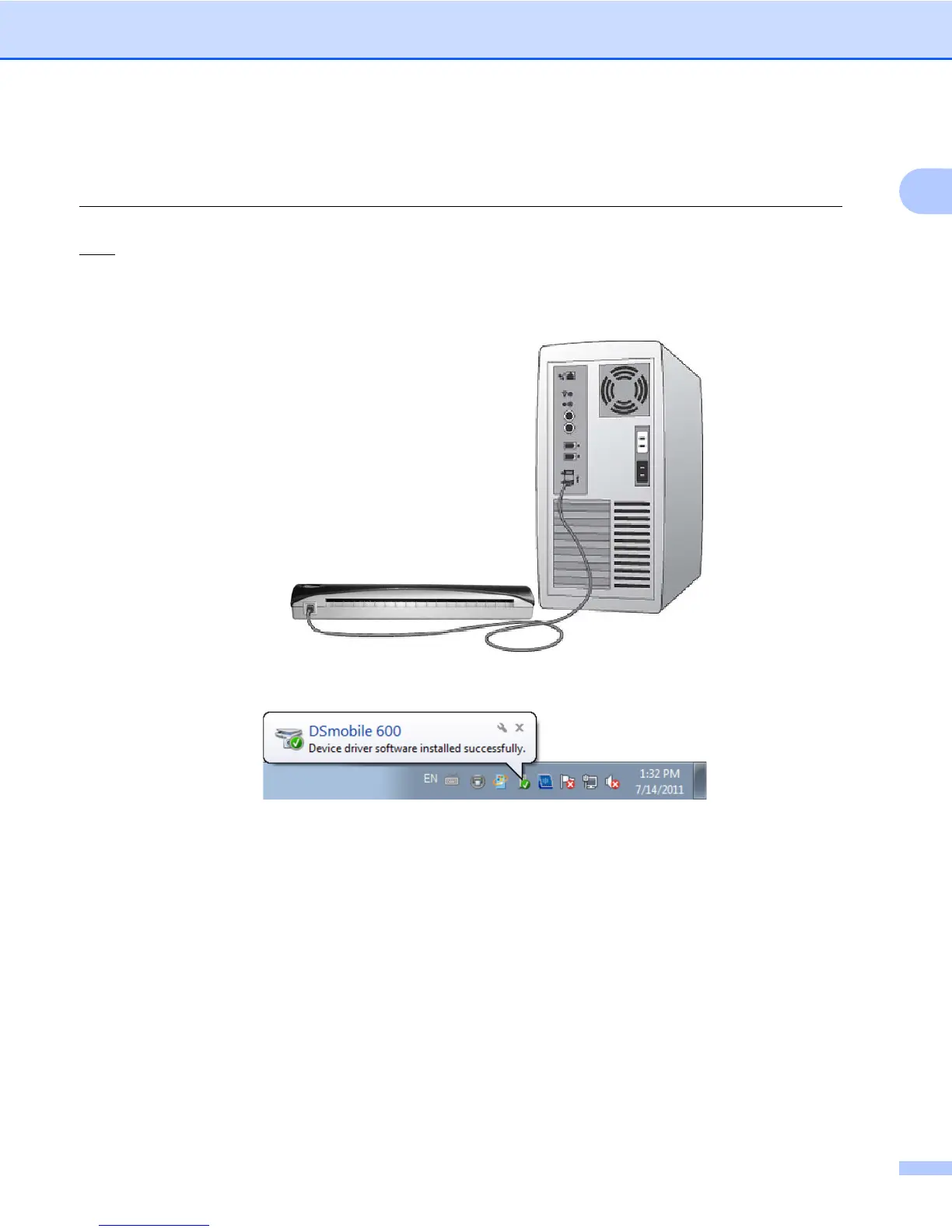

a Connect the USB cable to the scanner and to a USB port on your computer as shown below (either to a
desktop or laptop computer). If necessary, please check your computer’s user guide to identify the USB
ports available and their locations.
b The following message will be displayed, and the computer will automatically detect the new hardware
device installed and it will be ready for use.

Brother DSMOBILE 600 Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	8
Input color depth	48 bit
Maximum scan size	216 x 356 mm
Optical scanning resolution	6400 x 9600 DPI
Scanner type	Sheet-fed scanner
Safety	FCC Class B, CE
Dimensions (WxDxH)	51 x 279 x 38 mm
Sensor type	CMOS CIS
USB version	2.0
Standard interfaces	USB 2.0
Minimum RAM	128 MB
Minimum processor	Pentium 2
Minimum storage drive space	200 MB
Minimum system requirements	VGA USB 2.0 Cd-ROM
Compatible operating systems	Windows Vista, XP, 2000, ME, 98 SE
Power consumption (off)	0.02 W
Power consumption (standby)	0.2 W
Power consumption (typical)	2 W
Certification	RoHS, WEEE

Weight and Dimensions

Weight	345 g
