Brother HE-800A Service Manual

3. ASSEMBLY
HE-800A
52

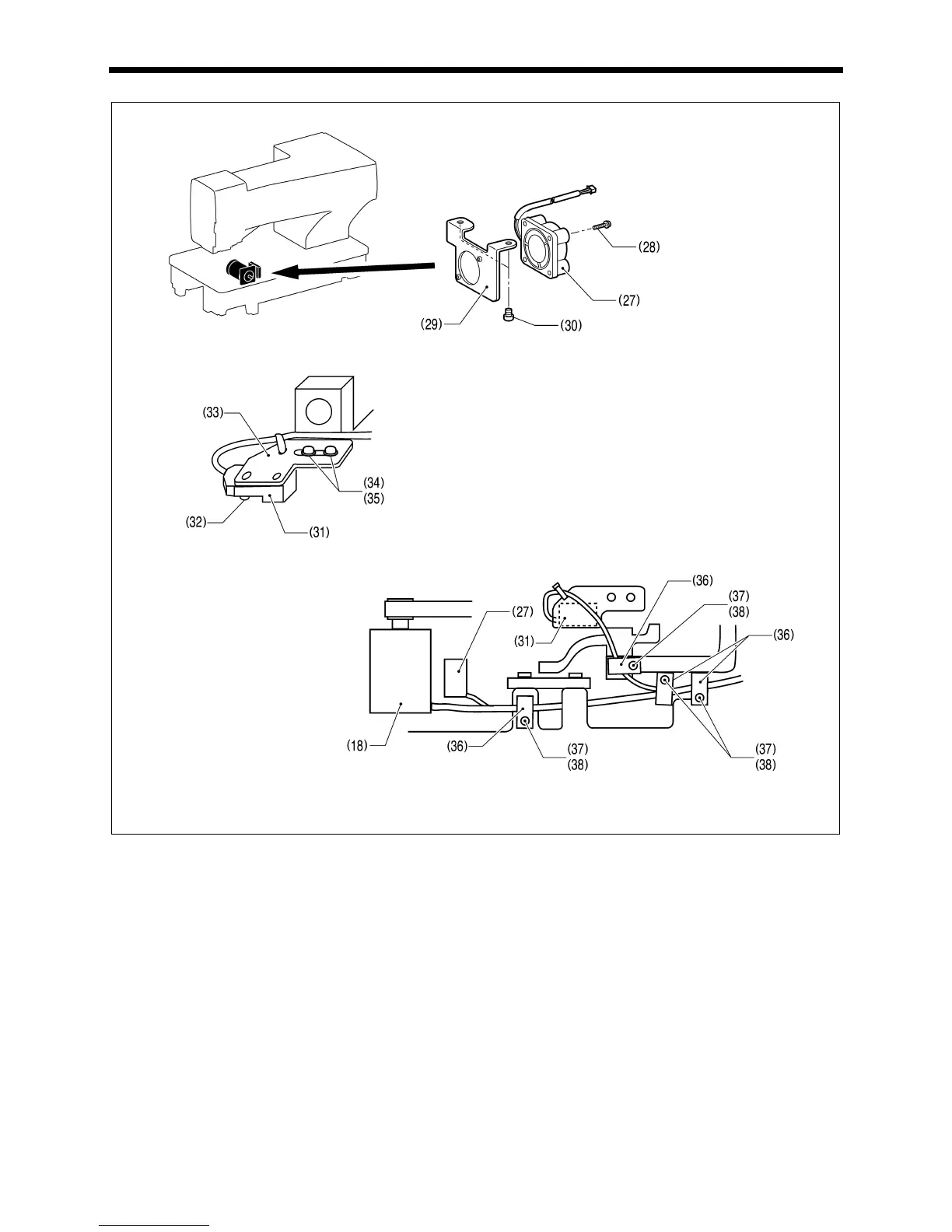

16. Install the DC fan motor 40 assembly (27) to the feed motor cover (29) with the two screws (28).
17. Install the feed motor cover (29) to the bed with the two screws (30).
18. Install the feed home position sensor (31) to the feed sensor support plate (33) with the screw (32).
19. Install the feed sensor support plate (33) to the bed with the two screws (34) and plain washers (35).
20. Pass the cords for the feed pulse motor (18), DC fan motor 40 assembly (27) and feed home position sensor
(31) through the four cord holders (36), and secure to the bed with the four screws (37) and the two plain
washers (38).
4192Q
4191Q
4193Q
