14
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

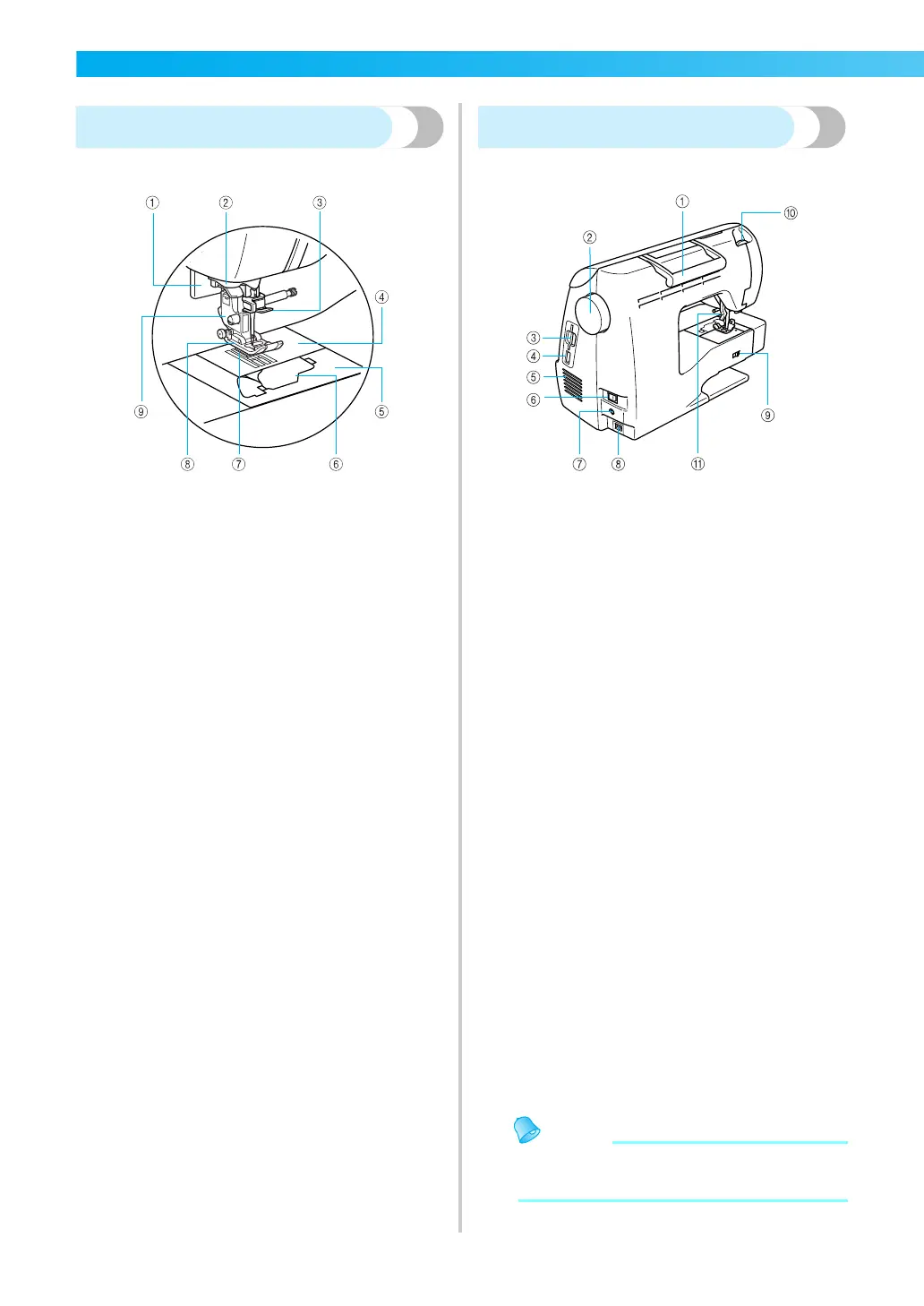

Needle and presser foot section
a Buttonhole lever
The buttonhole lever is used with the one-step
buttonhole foot to create buttonholes.
b Thread guide disk
Pass the thread through the thread guide disk when
using the needle threader to thread the needle.
c Needle bar thread guide
Pass the upper thread through the needle bar thread
guide.
d Needle plate
The needle plate is marked with guides to help sew
straight seams.
e Needle plate cover
Remove the needle plate cover to clean the bobbin case
and race.
f Bobbin cover
Open the bobbin cover to set the bobbin.
g Feed dogs
The feed dogs feed the fabric in the sewing direction.
h Presser foot
The presser foot applies pressure consistently on the
fabric as sewing takes place. Attach the appropriate
presser foot for the selected stitch.
i Presser foot holder
The presser foot is attached onto the presser foot holder.
Right-side/rear view
a Handle
Carry the sewing machine by its handle when
transporting the machine.
b Handwheel
Turn the handwheel toward you to raise and lower the
needle. The handwheel should be turned towards you
(counterclockwise).
c Embroidery card slot
Insert the embroidery card.
d USB port (for a USB flash drive (USB flash memory))
In order to import patterns from a USB flash drive (USB
flash memory), plug the USB media directly into the
USB port.
e Air vent
The air vent allows the air surrounding the motor to
circulate. Do not cover the air vent while the sewing
machine is being used.
f Main power switch
Use the main power switch to turn the sewing machine
ON and OFF.
g Foot controller jack
Insert the plug on the end of the foot controller cable
into the foot controller jack.
h Power supply jack
Insert the plug on the power cord into the power supply
jack.
i Feed dog position switch
Use the feed dog position switch to lower the feed dogs.
j Presser foot pressure dial
Use the presser foot pressure dial to adjust the amount
of pressure that the presser foot applies.
k Presser foot lever
Raise and lower the presser foot lever to raise and lower
the presser foot.
z Refer to pages 13 through 16 while you are
learning to use your machine.
