Make sure all tools and materials necessary are within reach to install the edge in maximum safety, according to regulations in force. The following figure illus-
trates the minimum equipment for the installer.
Before proceeding with the installation, it is necessary to:
• Make sure the area selected for the mounting of the base and for the unit itself presents no hazards;
• Provide for suitable omnipolar disconnection device with more than 3 mm between contacts to section power supply;
• Connections inside the case made for protection circuit continuity are allowed as long as they include additional insulation with respect to other internal drive
parts;
• Install suitable tubes and ducts for electric cable passage to guarantee protection against mechanical damage;
Installation must be carried out by expert qualified personnel and in full observance of regulations in force.
5 Installation

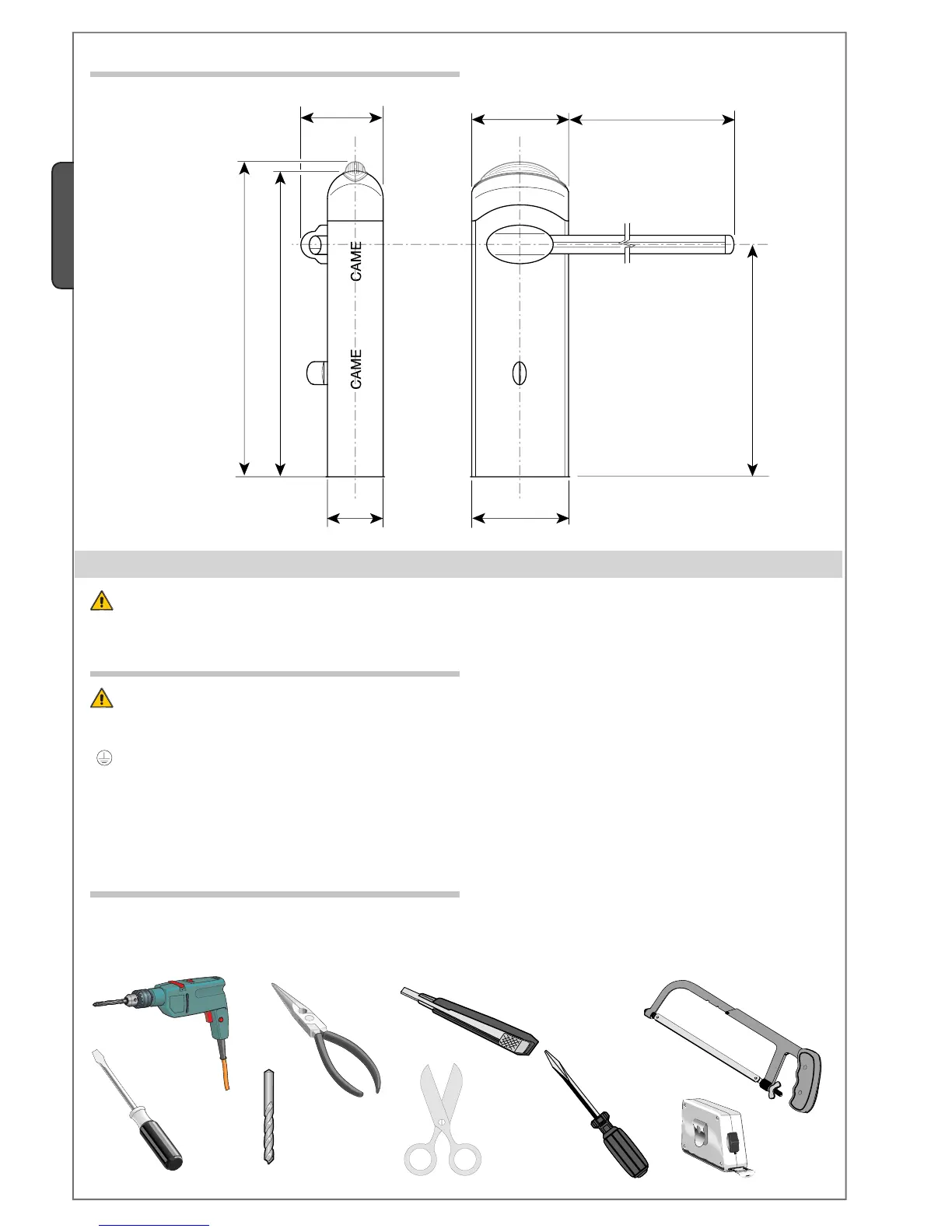

4.4 Size measurements
Measurements in mm
5.1 Preliminary checks
5.2 Tools and materials
