Page 22 - Manual FA01625-EN - 02/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

PROGRAMMING

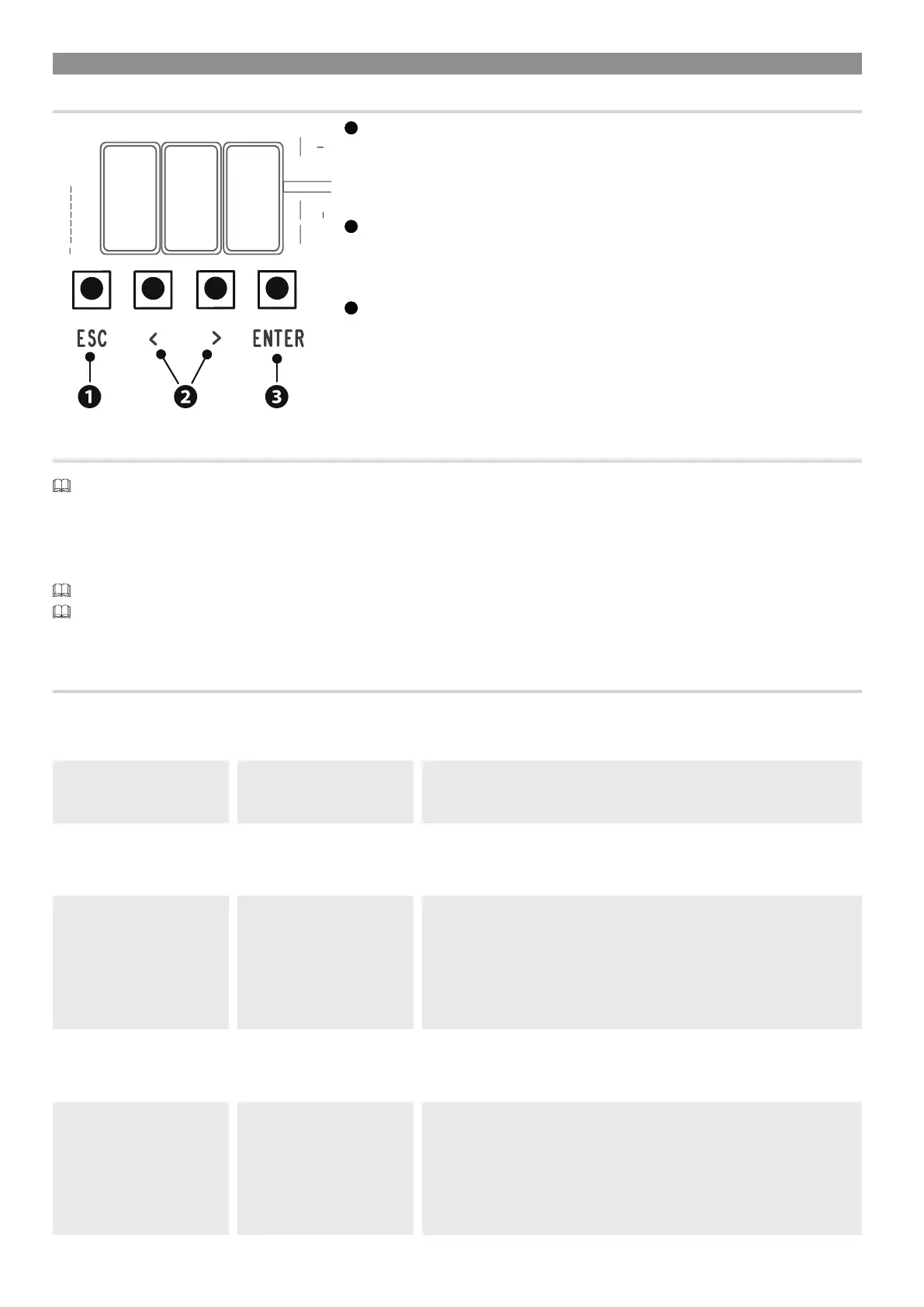

Programming button functions

ESC button

The ESC button is used to perform the operations described below.

Exit the menu

Delete the changes

Go back to the previous screen

< > buttons

The <> buttons are used to perform the operations described below.

Navigate the menu

Increase or decrease values

ENTER button

The ENTER button is used to perform the operations described below.

Access menus

Confirm choice

Getting started

Once the electrical connections have been made, proceed with commissioning. Only skilled and qualified staff may perform this operation.

Check the warning and safety devices are working properly.

Make sure that there are no obstacles in the way.

Power up and proceed with the operations indicated below.

F1 Total stop

After powering up the system, the first manoeuvre is always to open the gate Wait for the manoeuvre to be completed.

Press the ESC button or STOP button immediately in the event of any faults, malfunctions, strange noises or vibrations, or unexpected behaviour in the system.

At the end of commissioning, check the correct operation of the device using the buttons near the display. Check that the accessories also work correctly.

Functions menu

Total stop

This stops the boom and excludes automatic closing. Use a control device to resume movement.

F1 Total stop 0 =Deactivated (Default)

1 = Activated

CX input

Associate a function with the CX input.

F2 CX input 0 =Deactivated (Default)

1 = C1 = Reopening while closing (Photocells)

4 = C4 = Obstacle wait (Photocells)

5 = C5 = Immediate closing at the opening travel end

9 = C9 = immediate closing at the travel end during opening with obstacle waiting, during
