FINAL OPERATIONS

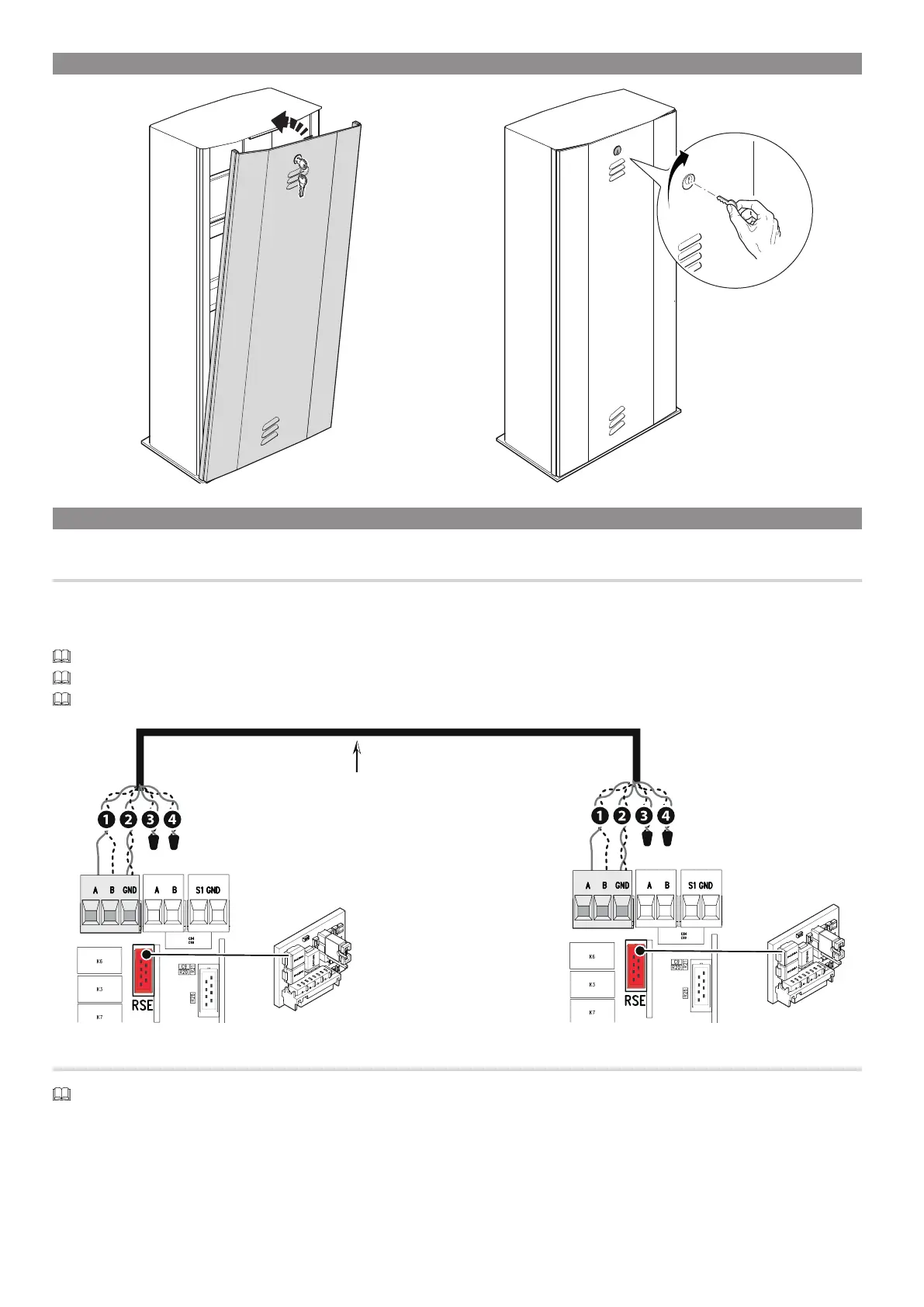

PAIRED OPERATION
Two connected operators are controlled with one command.
Electrical connections
Connect the two electronic boards with a UTP CAT 5 cable.
Fit an RSE card on both control boards using the RSE connector.
Connect up the electrics for the devices and accessories.
For information on connecting the electrics for the devices and accessories, please see the “ELECTRICAL CONNECTIONS” section.
The devices and accessories must be connected to the control board which will be set as the MASTER.
Deactivate function F19 on the SLAVE operator control panel.
UTP CAT 5 (max 1000 m)
RSE
RSE
Programming
All programming operations described below must be performed only on the control board set as the MASTER.
Select function F49.
Press ENTER to confirm.
Select 1.
Select function F52.
Select 1.
