FUSE TABLE
To protect: Fuse rating:
Control board (line) 1,6A-F
Accessoriesi 1,6A-F

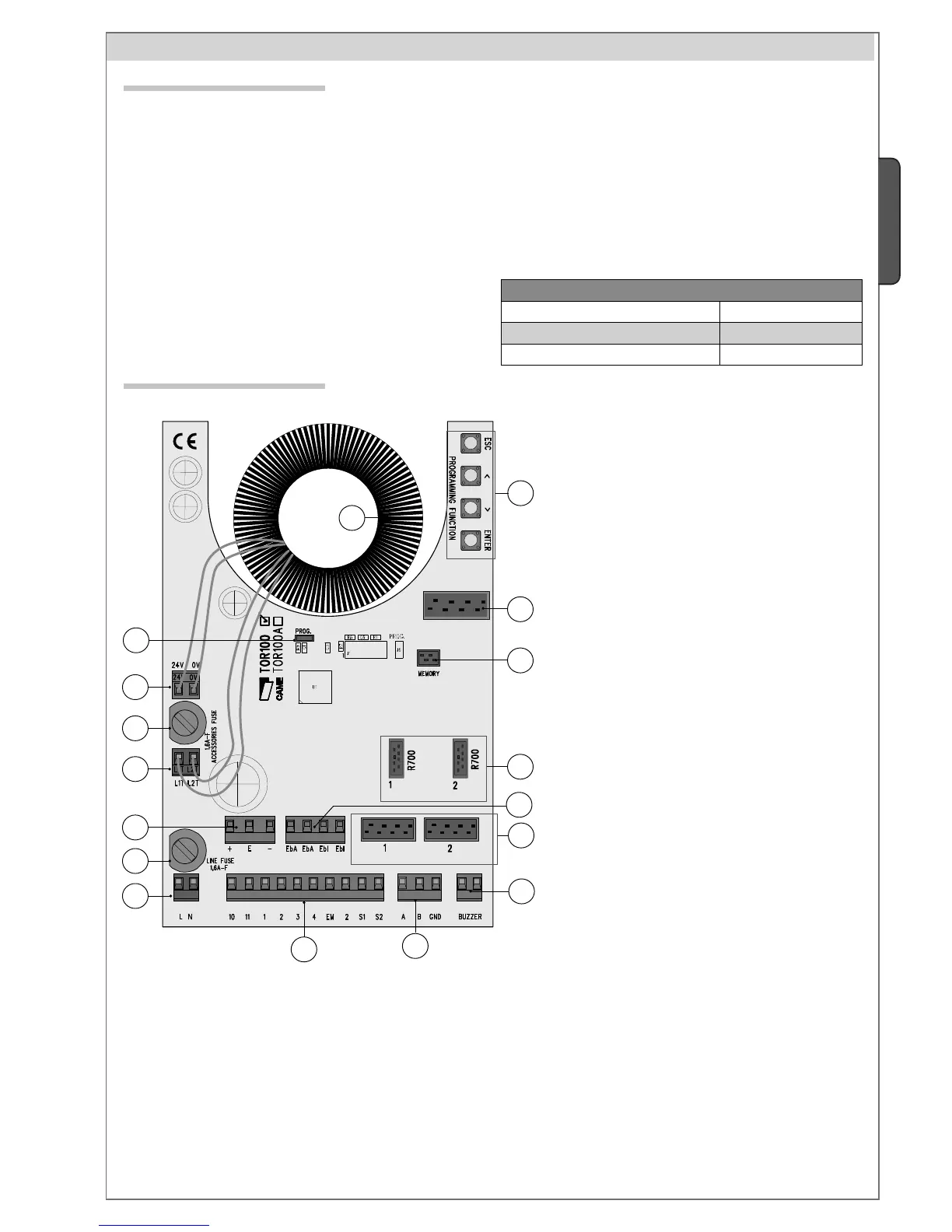

8.2 Main Components
Transformer1.
Transformer connection terminals2.
1.6A accessories Fuse3.
Endpoint connection terminal4.
1.6A line fuse5.
230 V AC control board power terminals6.
Terminals for connecting accessories and com-7.
mand systems.
electro-block connection terminal board8.
Not used terminal board 9.
Transponder connection terminals10.
R700 board connectors11.
Memory roll board connectors12.
Traffic-light display connection terminal13.
Functions programming buttons14.
RBM84 connection terminal15.
Signal LED16.
The control panel is powered by 230 V AC on terminals L-N, with
max frequency of 50/60Hz
The 24 V power supply is of the SELV type.
The command and control devices and accessories are 24 V D.C.
Warning! The accessories must not comprehensively exceed
35W.
All connections are quick-fuse protected, see table.
The functions and user interface are set and displayed on the
software-managed display.
8.1 General description
8 Control panel
The defi nable command and control functionalities are:
- clock-wise activation;
- counter clock-wise activation;
- Stop command;
- emergency command.
WARNING: before doing any work inside the equipment, cut the
power mains.
