2. Installation and Connections
Connecting an External Monitor
AUDIO IN
AUDIO OUT
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN-1
DIGITAL IN /
ANALOG IN-2
ANALOG IN 1
AUDIO IN
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN

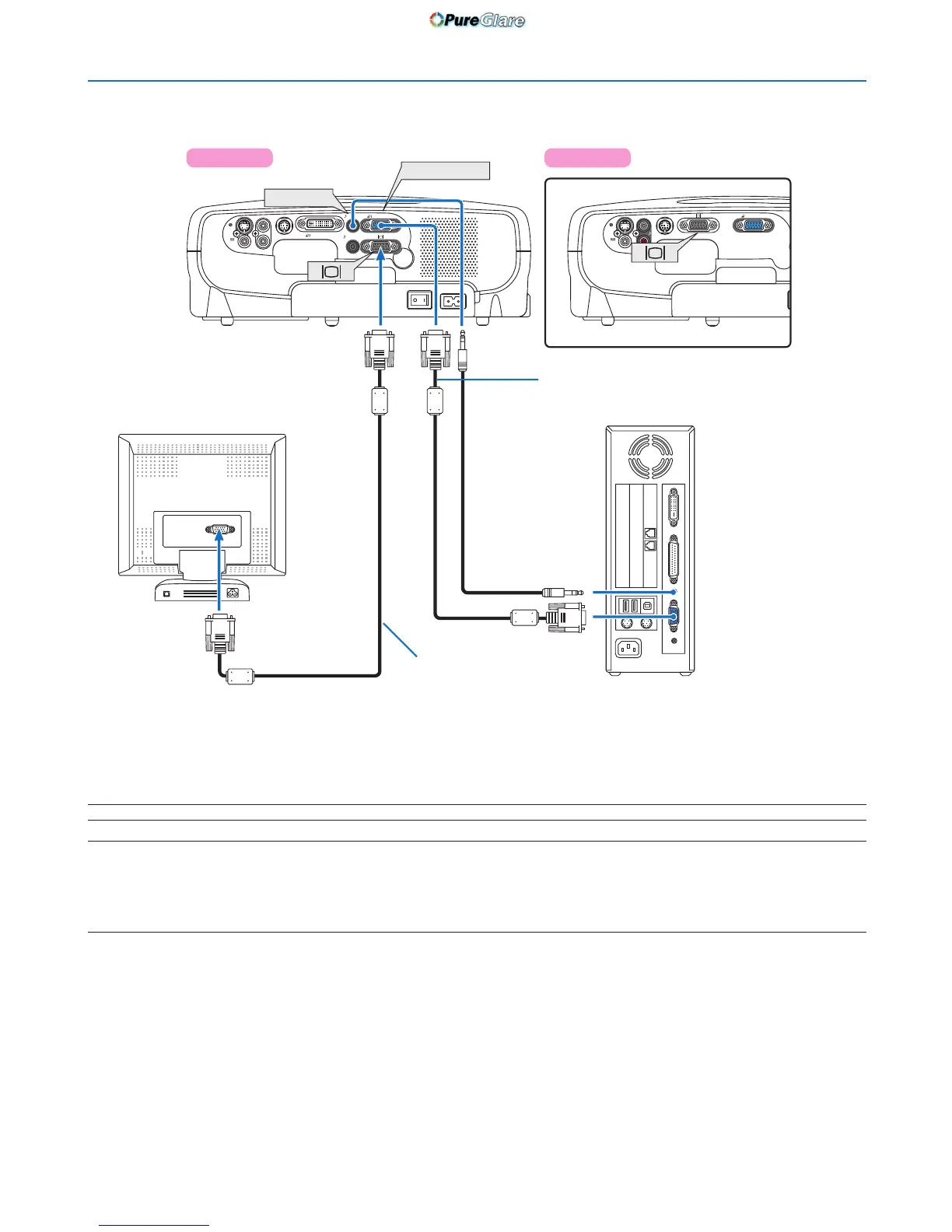

You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB ana-
log image you're projecting.
NOTE: Daisy chain connection is not possible.
NOTE:
• The signal from the DIGITAL IN/ANALOG IN-2 connector cannot be output from the Monitor Output connector on LV-7265.
• When the Computer 2 (Digital) signal is selected, no signals will be output from the Monitor Output connector on LV-7265.
• The LV-7260 and LV-X7 do not have the AUDIO OUT connector.
• Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
VGA cable (supplied)
VGA cable (not supplied)
LV-7260/LV-X7 LV-7265
