Canton Smart Amp 5.1 User Manual

80
English

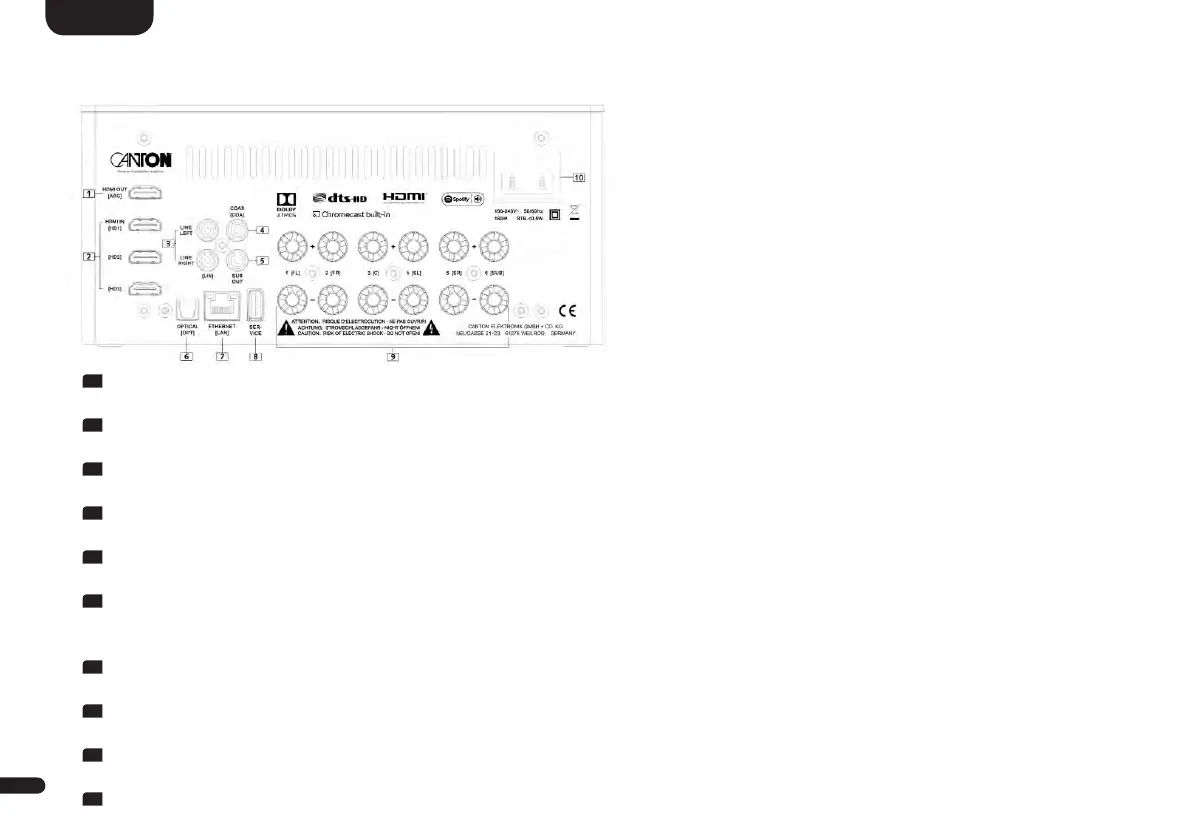

Connection Terminal
1
HDMI
®
Output (ARC) - (Audio Return Channel)
For the connection with the HDMI
®
(ARC) input of your TV (supports 3D/ 4K / ARC / HDCP 2.2 / CEC).
2
HDMI
®
Input - HD1 / HD2 / HD3
For the connection with the HDMI
®
Output of your digital source device (supports 3D / 4K / HDCP 2.2 / CEC).
3
LINE L/R (AUX)
For the connection with the analogue line output of your source device (2x RCA, max. 2Vrms).
4
COAXIAL (COA) Input
For the connection with your (digital) coax audio output of your TV or digital source device (2x RCA, max. 96kHz).
5
SUB OUT
For connection with an active subwoofer (RCA, max. 2Vrms).
6
OPTICAL IN (OPT)
For the connection with your (digital) optical audio output of your TV or digital source device (TOSLINK, max.
96kHz).
7
ETHERNET (LAN)
For the connection with a network router via ethernet cable (RJ45 Socket, 8-pole).
8
SERVICE CONNECTOR
Used for the Canton customer service only (USB A Socket, covered, no audio, no charging).
9
Speaker Terminal
For the connection with passive loudspeakers (Music Ouput 2x 180W / 4x 150 Watt / 6x 100Watt).
10
POWER INPUT
For connection with the Mains (IEC C18, 100-240V~, 50/60Hz, 400W).

Canton Smart Amp 5.1 Specifications

General

Video in	3x HDMI
Video out	1x HDMI
Ethernet LAN (RJ-45) ports	1
Speakers connectivity type	-
Product color	Black
Volume control	Touch
Cables included	AC
Treble adjustment	Yes
Connectivity technology	Wired & Wireless
Audio decoders	DTS-HD, Dolby Atmos
Audio output channels	- channels
Peak power per channel	600 W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	- %

Weight and Dimensions

Depth	154 mm
Width	245 mm
Height	120 mm
Weight	5240 g
