52
10.1 Packaging
Packaging for the Paragon screw compressor utilizes a
wooden pallet and shrink-wrap plastic.
10.2 Shipping
All compressors that are shipped within the U.S. or inter-
nationally will be unstacked (single layer).
10.3 Storage
Although the Paragon compressors are painted to meet
the 500 hours salt spray requirement, it is preferable to
store the compressors indoors where they are shielded
from the weather. Outdoor storage is permissible as long
as temperatures stay within a temperature range of 40°F
to 176°F (40°C to 80°C).

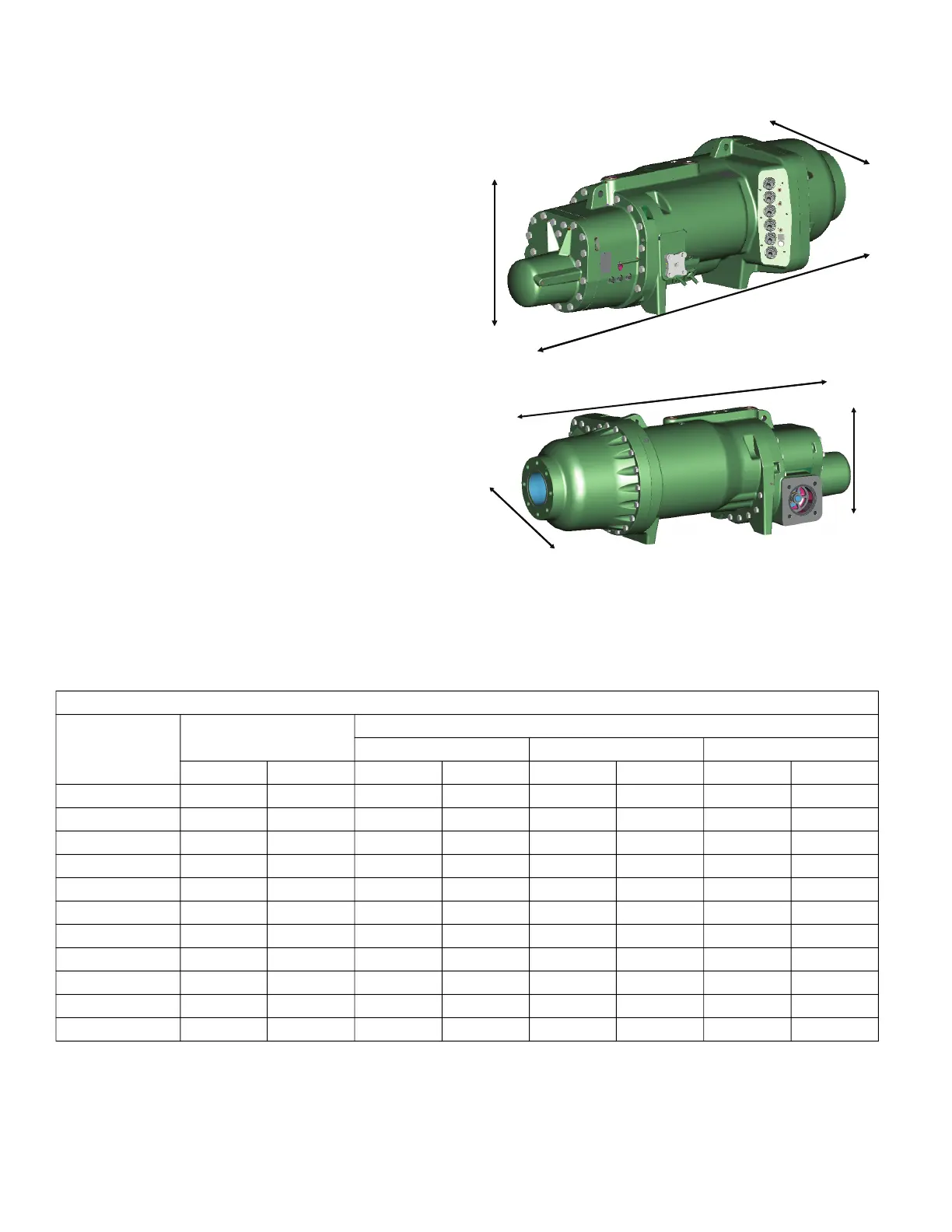

10.4 Weights and Dimensions
Compressor weights and dimensions are shown in
Table 29. See also Fig. 34.
Table 29 — Basic Compressor Weight and Dimensions (Without Electrical Box and Oil Separator)
W
L
H
DISCHARGE SIDE VIEW
W
L
H
DISCHARGE SIDE VIEW
Fig. 34 — Compressor Dimensions
W
L
H
ECONOMIZER SIDE VIEW
W
L
H
ECONOMIZER SIDE VIEW
a06-1675
a06-1676
BASIC COMPRESSOR WEIGHT AND DIMENSIONS (WITHOUT ELECTRICAL BOX AND OIL SEPARATOR)
MODEL
WEIGHT
DIMENSIONS
HEIGHT ‘H’ WIDTH ‘W’ LENGTH ‘L’
lb kg in. mm in. mm in. mm
06TS-137--- 814 369 16 412 19 480 41 1029
06TS-155--- 830 376 16 412 19 480 41 1047
06TS-186--- 867 393 16 412 19 480 43 1091
06TT-266--- 1352 613 19 481 21 536 50 1276
06TT-301--- 1389 630 19 481 21 536 51 1299
06TT-356--- 1460 662 19 481 21 536 53 1347
06TU-483--- 2018 915 21 531 23 591 58 1466
06TU-554--- 2108 956 21 531 23
591 60 1514
06TV-680--- 2585 1173 23 583 24 608 68 1731
06TV-753--- 2608 1183 23 583 24 608 68 1731
06TV-819--- 2626 1191 23 583 24 608 68 1731
10.0 Packaging and Storage Requirements
