3

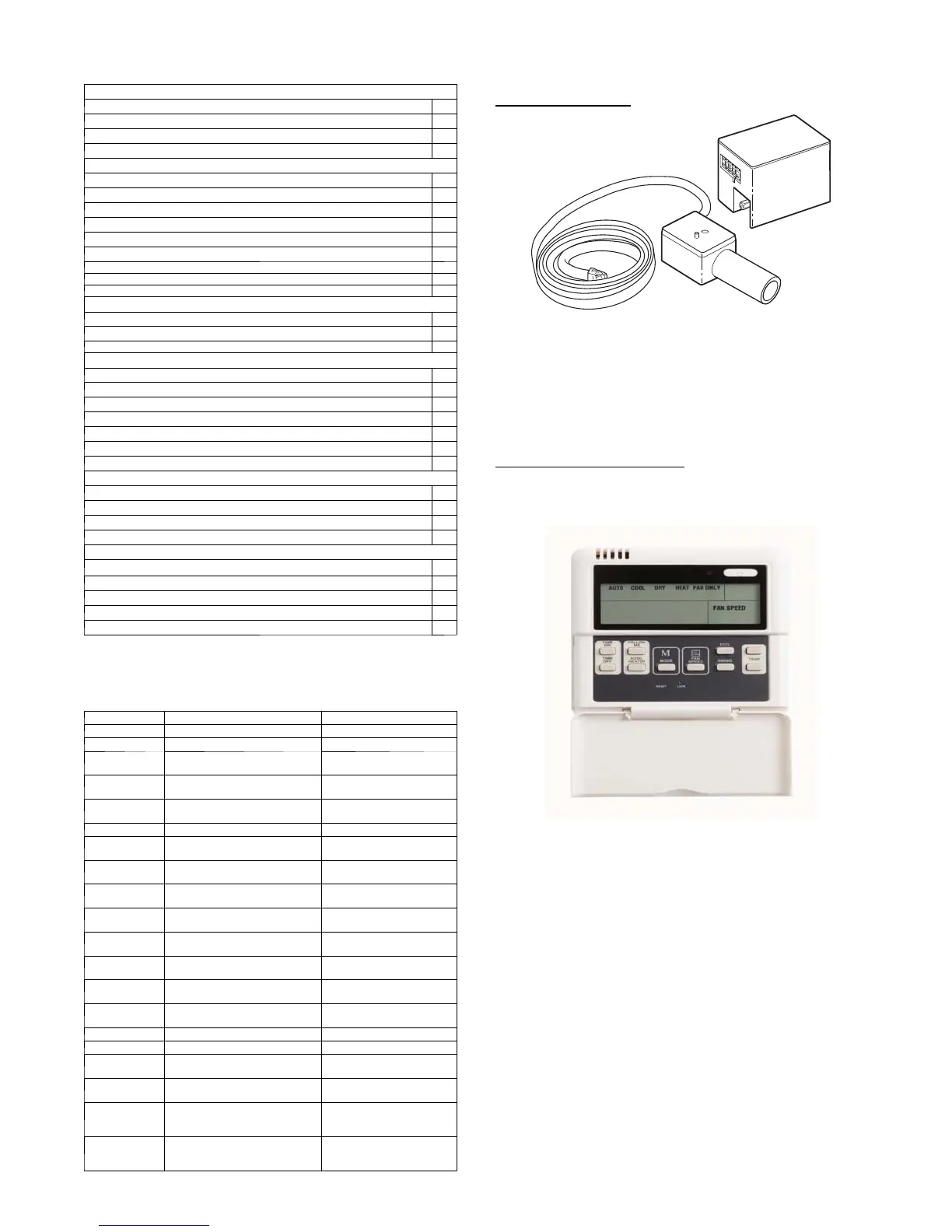

STANDARD FEATURES AND ACCESSORIES
Table 1—Standard Features
Ease Of Installation
Indoor and Outdoor Compact Size S
Outdoor Unit Wall Mounting Kit A
Outdoor Unit Stacking Kit A
Indoor Mounting Bracket S
Comfort Features
Microprocessor Controls S
Wireless Remote Control S
Automatic Air Sweep S
Air Direction Control S
Auto Restart Function S
Cold Blow Protection On Heat Pumps S
Turbo Mode S
Silence Mode S
Follow Me S
Energy Saving Features
Sleep Mo de S
Stop/Start Timer S
46 ° F Heating Mode (Heating Setback) S
Safety And Reliability
3 Minute Time Delay For Compressor S
Over Current Protection For Compressor S
Crankcase Heater (stand ard on size 30 Heat Pump ) A
Indoor Coil Freeze Protection S
Indoor Coil High Temperature Protection On Heat Pumps S
Condenser High Temperature Protection On Heat Pumps S
Accumu lator On Heat Pumps S
Ease Of Service And Maintenance
Cleanable Filters S
Diagnostics S
Liquid Line Pressure Taps S
Suction And Discharge Pressure Taps S
Application Flexibility
Low Ambient Controls ( --20_ F) (--28.9 _C)
A
3--Phase on size 32 (Cooling Only) S
Wind Baffles A
Condensate Pumps A
Wired Controls A
Legend
SStandard
A Accessory
Table 2—Accessories
Part Number Description For Models
KSA C N 0101A A A W i r ed Remot e Contr ol Only Siz es 18, 22
53DS--900------1 18 Condens a t e Pump (230v) All Sizes
KA AVC0101A A A
Controls Kit (Required on High W alls
Cooli ng Only units)
40MK C
KH AVC0101A A A
Controls Kit (Required on High W alls
Heat Pump units)
40MK Q
KSA LA0801A A A Low Ambie nt Control (f or cooling --20F)
24AHA4/25HHA4
/124ANS/224A N S (208/ 230V )
KSA LA0901A A A Low Ambie nt Control (f or cooling --20F) 24AHA4 /124ANS (460V--3)
KAACH1401AAA Crankcase Heater
24AHA4/124AN S Size s 18--36
(208/ 230V )
KAACH1501AAA Crankcase Heater
24AHA4/124AN S Siz e 36
(460V--3)
KAACH1701AAA Crankcase Heater
25HHA4/224AN S Siz e 24
(208/ 230V )
KA AWS0101AAA
Winter Start Kit (for low ambient on
cooli ng only systems)
24AHA4/124ANS All Sizes
KHAIR0201AAA
Is olation Rel a y (Re qui red whe n using
Low Ambient cooling with HP)
25HHA4/224ANS All Sizes
KSA HS1501AAA Hard Start Kit (Capacitor & Relay)
24AHA4/25HHA4
/124ANS/224A N S (208/230V--1)
53DS--900------087 Wind Baffle
24AHA4/124AN S Siz es 18 & 24;
25HHA4/224AN S Siz e 24
53DS--900------071 Wind Baffle
24AHA4/124AN S Siz es 30 -- 36;
25HHA4/224AN S Siz e 30
53DS--900------075 Stacking Kit 24AHA4/124AN S Siz es 18, 24
53DS--900------076 Stacking Kit 24AHA4/124AN S Siz es 30, 36
53DS--900------077 W a l l Mount K it
24AHA4/25HHA4/124ANS / 224A
NS Siz es 18, 24
53DS--900------078 W a l l Mount K it
24AHA4/25HHA4
/124ANS/224A N S Si z es 30, 36
KAALS0201LLS Li qui d Line Sol enoid for Cooli ng Only
24AHA4/124ANS All Sizes --
Requi red for L ong Line
Appli cat ions
KHALS0401LLS Li qui d Line Sol enoid for He a t Pump
25HHA4 /224ANS All Sizes --
Requi red for L ong Line
Appli cat ions
INDOOR UNIT ACCESSORIES
Condensate Pump
A07892
Fig. 1 – Condensate Pump Accessory
On high wall fan coils, the condensate pump has a lift capability of
12 ft (3.6 m) on the discharge side with the pump mounted in the
fan coil or 6 ft (1.8 m) on the suction side if the pump is remote
mounted. The pump is recommended when adequate drain line
pitch cannot be provided, or when the condensate must move up to
exit.
Wired Remote Controller
For applications where the use of wireless remote control is not
desired, the MK units can be controlled by means of a wired
wall-- mounted control with an LCD display.
Fig. 2 – Wall Mounted Control with LCD Display
