DIMENSIONS -- INDOOR
W
H
D
A08447

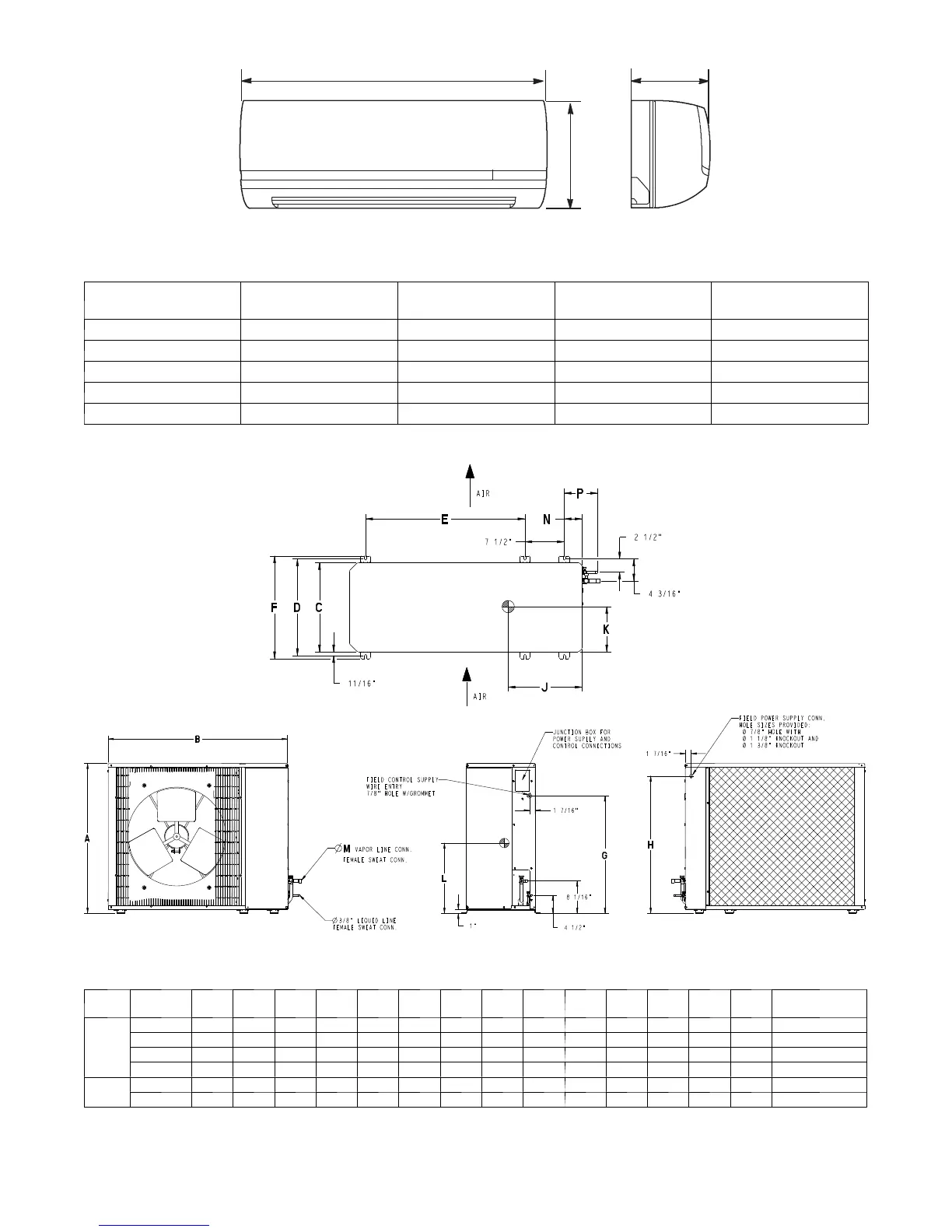

Fig. 3 – 40MKC**B, 40MKQ**B Unit Dimensions
Table 4—Dimensions Indoor
High wall Indoor Unit size
(BTU/Hr)
Height (H)
in. (mm)
Width (W)
in. (mm)
Depth ( D)
in. (mm)
Operating Weight
lb (kg)
AC
18K and 22K 13.39 (343) 46.69 (1186) 10.16 (258) 17 (7.71)
28K and 32K 13.38 (340) 57.09 (1450) 10.43 (265) 25 (11.34)
HP
24K and 28K 13.38 (340) 57.09 (1450) 10.43 (265) 25 (11.34)
DIMENSIONS -- OUTDOOR
Fig. 4 – Outdoor Unit Dimensions
Table 5—Outdoor Dimensions Indoor
UNIT SIZE A B C D E F G H J K L M N P
OPERATING
WEIGHT lbs
Cooling
Only
18 31.1 36.9 14.6 16.0 23.4 17.2 23.1 28.1 13.0 6.6 11.3 0.6 2.9 5.8 146.0
24 31.1 36.9 14.6 16.0 23.4 17.2 23.1 28.1 14.0 6.8 11.6 0.8 2.9 5.8 148.0
30 37.1 44.5 17.1 18.4 30.5 19.6 29.1 34.1 13.7 8.1 15.9 0.8 3.4 6.4 183.0
36 37.1 44.5 17.1 18.4 30.5 19.6 29.1 34.1 13.7 8.1 15.9 0.9 3.4 6.4 184.0
Heat
Pump
24 31.1 36.9 14.6 16.0 23.4 17.2 23.1 28.1 14.0 6.8 11.6 0.8 2.9 4.9 161.0
30 37.1 44.5 17.1 18.4 30.5 19.6 29.1 34.1 13.7 8.1 15.9 0.8 3.4 5.5 196.0
NOTE: Dimensions shown in feet--inches. Dimensions in ( ) are millimeters.
