TROUBLESHOOTING
Safety
Electricity power is kept in capacitors even if the power supply is shut off.
NOTE: Remember to discharge the electricity power in capacitor.

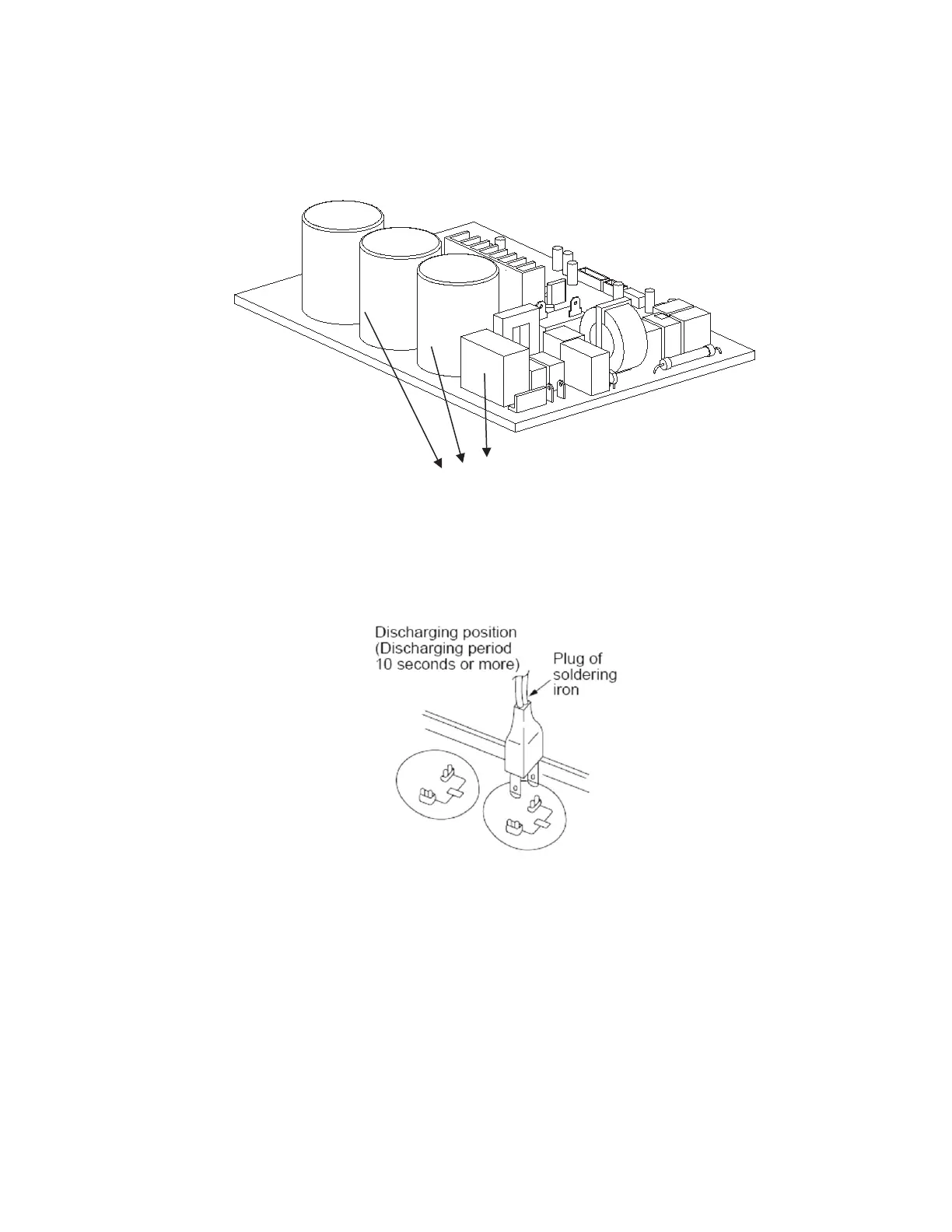

Fig. 31 —Electrolytic Capacitors
For other models, connect the discharge resistance (approximately 100 40W) or a soldering iron (plug) between the +, - terminals of the
electrolytic capacitor on the contrary side of the outdoor PCB.
Fig. 32 —Discharge Position
NOTE: Fig. 32 is for reference only. The plug on your unit may differ.
(HIGH VOLTAGE! CAUTION!)
