12 Specifications subject to change without notice. SG-38MHRC-01
WIRING DIAGRAMS (HEAT PUMP)

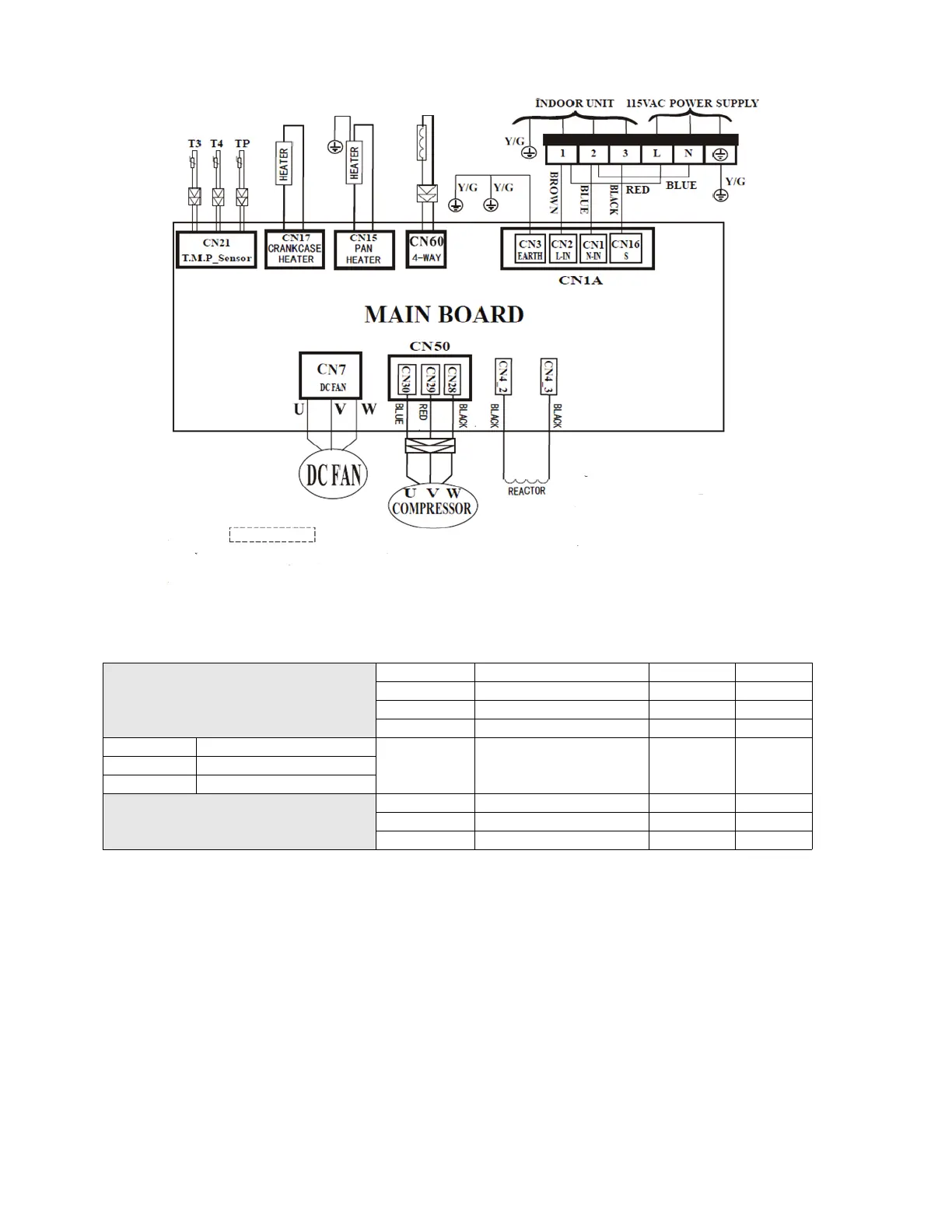

Fig. 9 — Wiring Diagram Size 12K (115V)
Table 8 — Wiring Diagram Size 12K (115V)
CN1A INPUT 115V AC
CN4_2/4_3 INPUT 115V AC
CN7 OUTPUT 0-310V AC
CN60 OUTPUT 115V AC
T3 Condenser TEMP. Sensor
CN21 OUTPUT 0-5V DCT4 Ambient TEMP. Sensor
TP Discharge TEMP. Sensor
CN15 OUTPUT 115V AC
CN17 OUTPUT 115V AC
CN50 OUTPUT 0-310V AC
This symbol indicates that
the element is optional.
The actual shape shall prevail.
