14 Specifications subject to change without notice. SG-38MHRC-01
WIRING DIAGRAMS (CONT)

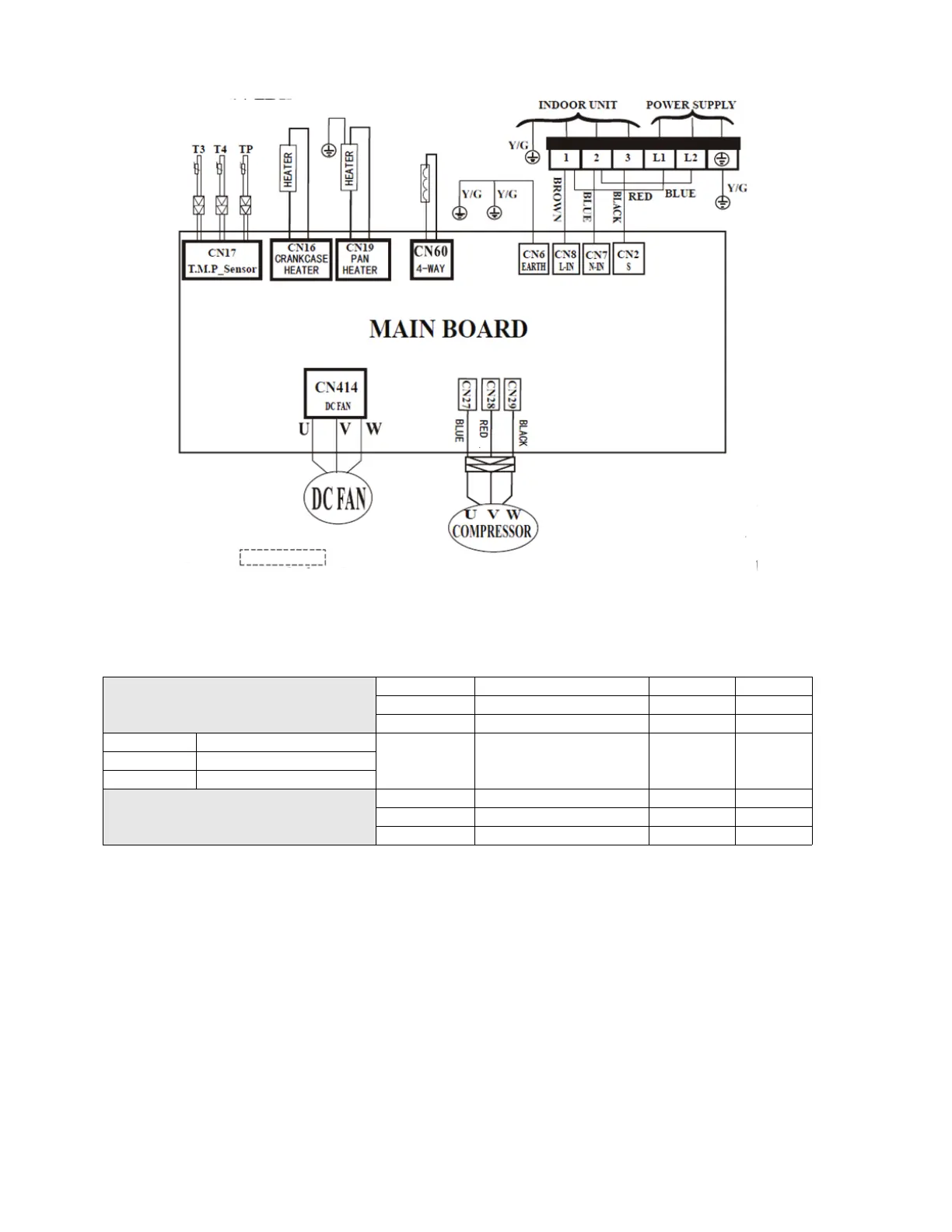

Fig. 11 — Wiring Diagram Size 24K (208-230V)
Table 10 — Wiring Diagram Size 24K (208-230V)
CN2/7/8 INPUT 230V AC
CN414 OUTPUT 0-310V AC
CN60 OUTPUT 230V AC
T3 Condenser TEMP. Sensor
CN17 OUTPUT 0-5V DCT4 Ambient TEMP. Sensor
TP Discharge TEMP. Sensor
CN16 OUTPUT 230V AC
CN19 OUTPUT 230V AC
CN27/28/29 OUTPUT 0-310V AC
This symbol indicates that
the element is optional.
