3

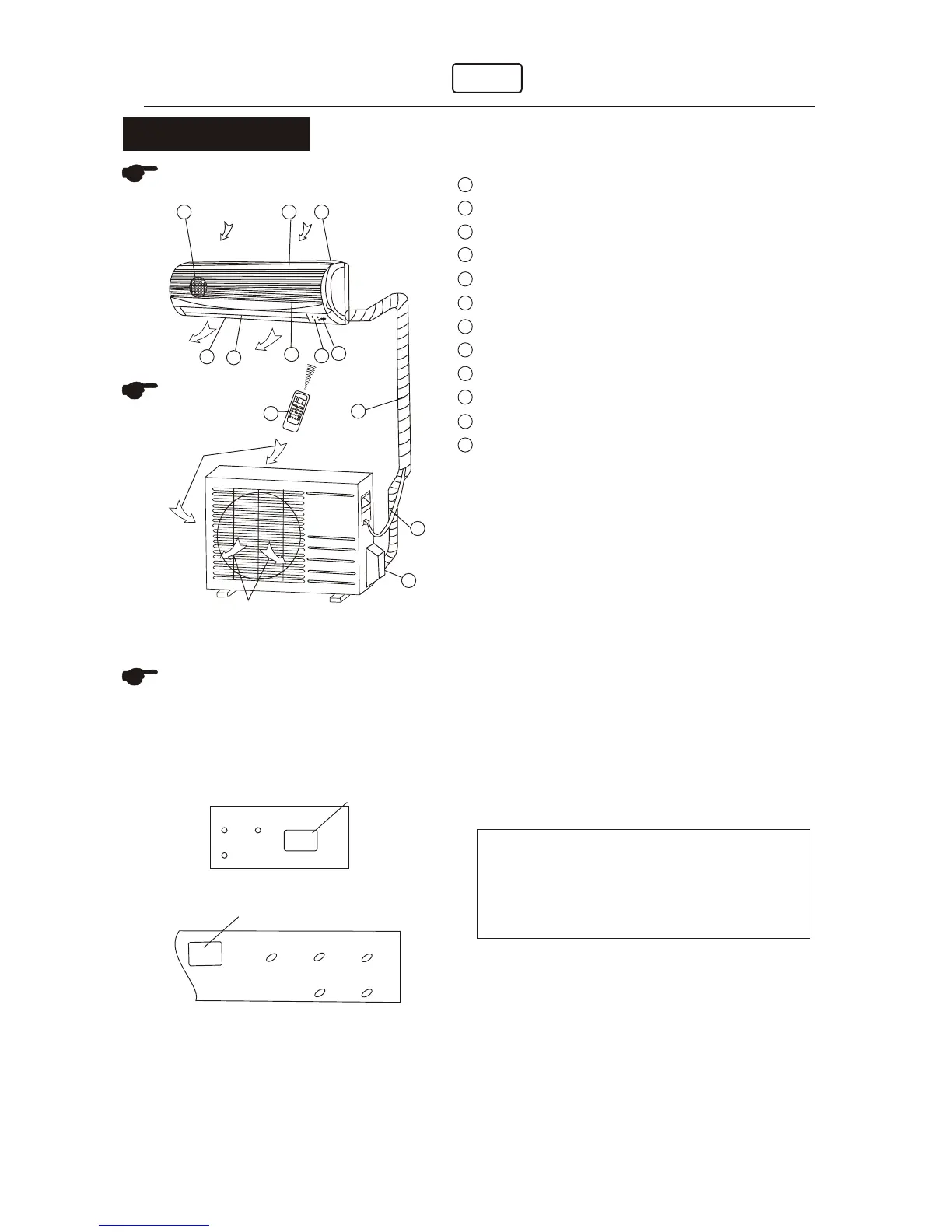

PARTS NAMES
INDOOR UNIT
DISPLAY PANEL
Air outlet
Air outlet
Air inlet
TIMER
OPERATION
PRE-DEF
Air inlet
3
10
11
12
8
7
4
5
6
9
2 1
DISPLAY PANEL
INDOOR UNIT
Front panel frame
Front panel
Air filter
Horizontal air flow grille
Vertical air flow louver
Room temperature sensor
Display panel
Infrared signal receiver
Remote controller
Drain hose, refrigerant connecting pipe
Connective cable
Stop valve
OPERATION indicator:
The indicator flashes once every second
after power is on and illuminates when the
air conditioner is in operation.
TIMER indicator:
The indicator illuminates when TIMER is set ON.
PRE-DEF. Indicator (For cooling& heating model only):
The air conditioner starts defrosting automa-
tically if outdoor unit frosts in heating operating.
At this time, PRE.-DEF. Indicator illuminates.
AUTO indicator:
This indicator flashes when the air conditioner
is in AUTO operation.
ECON indicator:
This indicator illuminates while the air conditioner
is in economic operation.
1
3
4
5
6
7
8
9
10
11
12
2
Infrared signal receptor
OPERATION
TIMER
PRE-DEF
AUTO
ECON
Infrared signal receptor
NOTE:
The display panel on the indoor unit
would look like one of following:
Note:
All the pictures in this manual are for explanation
purpose only. They may be slightly different from
the air conditioner you purchased. The actual
shape shall prevail.
42HQE009/012
R-407C
OURDOOR UNIT
