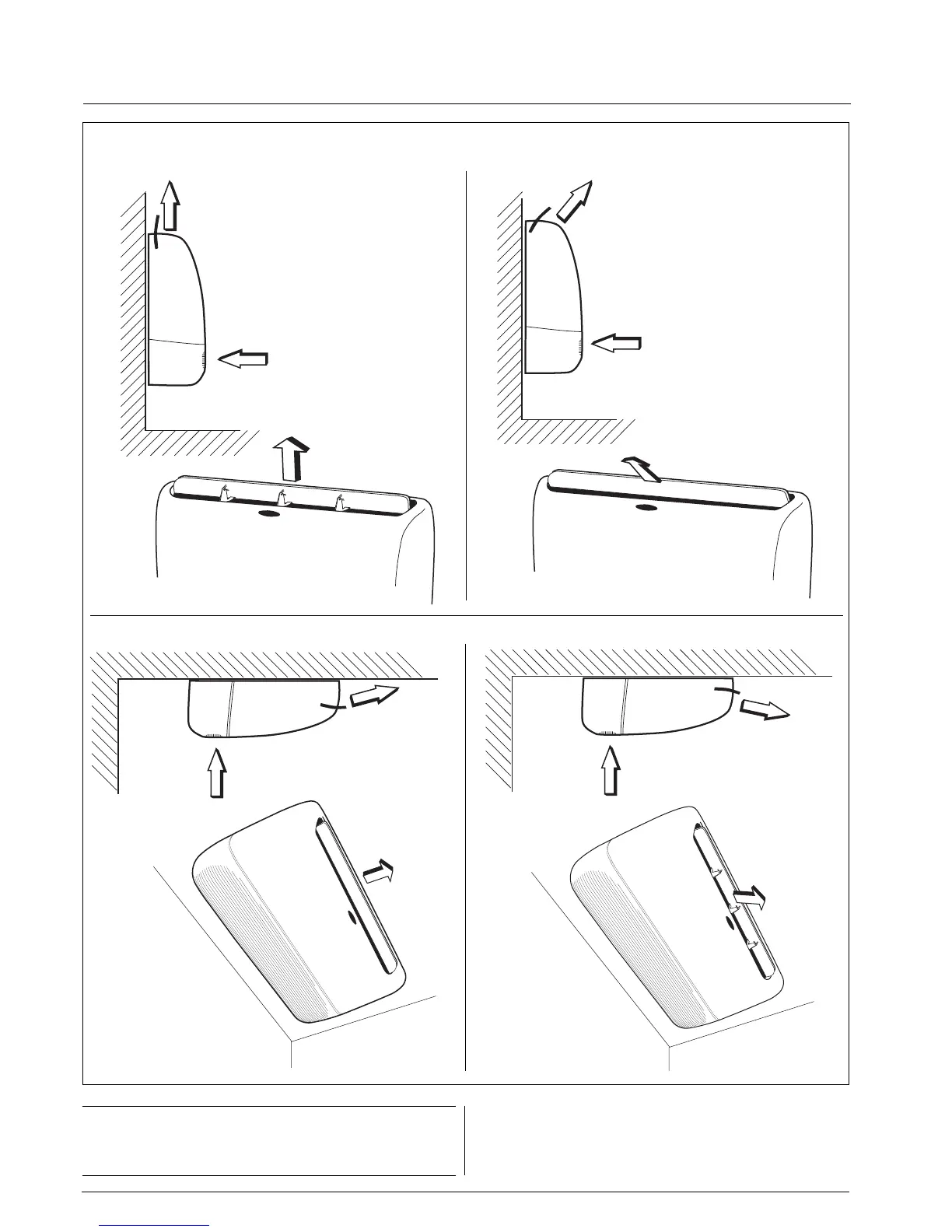

Ceiling installation, cooling Ceiling installation, heating
IMPORTANT:
Air is supplied into the room through the grilles located on
top of the cabinet; air from the room is drawn into the unit
through the grilles and filter at the bottom of the unit.
“No draught”
(guide vane fully open)
(position recommended for
ceiling installation in cooling
mode, to avoid draughts)
Make absolutely sure that the above parts are not
obstructed (even partially).
Air delivery direction
Wall installation, heating
Wall installation, cooling
Air delivery
