11
SYSTEM CONFIGURATION
VENTILATION CONTROL
The ventilation control lever is located at left side of
unit, behind front panel.
NOTE: The vent door shipping hardware must be
removed before using vent control lever. See
Installation Instructions.
When set at CLOS E, only the air inside the room is
circulated and filtered.
When set at OPEN, some outdoor air will be drawn
into room. This will reduce heating or cooling
efficiency.
En erg y Ti p : K eep t he ven t con t rol at CL OS E . Room
air will be filtered and circulated.
Open
Close
Vent Control
(Pull lever through label
to operate.)
A07068

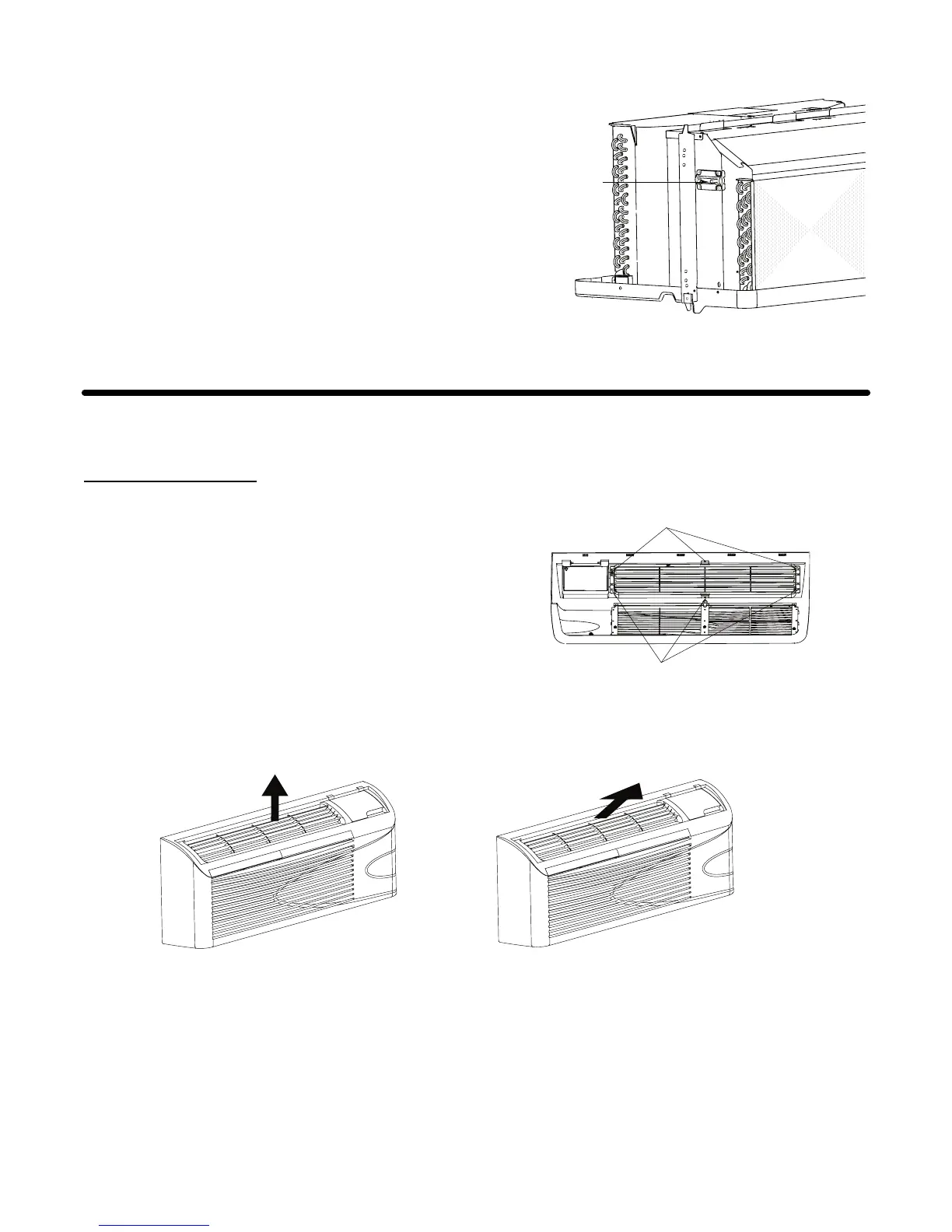

Fig. 17 – Ventilation Control Location
ADJUSTING AIR DIRECTI ON
To adjust air direction:
1. Remove front panel. See Fig. 11.
2. Remove louver screws that hold louver insert in
place (from back side of front panel). See Fig.
18.
3. Turn louver insert and rotate 180_. See Fig. 19.
4. Replace louver insert.
5. Replace screws and front panel.
Louver screws
Louver screws
A07069
Fig. 18 – Backside of Front Panel
Air discharge upward
Air discharge outward (Default)
A07070
Fig. 19 – Adjusting Louvers
