RETROFIT SLEEVE PREPARATION
IMPORTANT: Inspect wall sleeve thoroughly
prior to in s tallation. Manufacturer does not
assume responsibility for costs or damages due to
defects in sleeve or for improper installation.
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury
or death.
Disconnect all power to unit to avoid possible electrical shock
during installation.
!
WARNING
Remove any existing foam baffles that are installed
on competitive outdoor grille, if present. See F ig. 5.
GE Sleeves
Only
GE Meta l Wall S l eeve -- Remove metal clip on
mounting rail located on left, inside bottom, of metal
sl eeve and d i s card. See Fi g . 6.
GE Plastic Sleeve -- Remove bottom seal from
pl ast i c s l eeve. See Fi g . 7.
INSTALLATION OF A CARRIER WALL
SLEEVE USING A NON--CARRIER
GRILLE
This application has become more common due to
pre--manufactured windows with built -- in grilles or
renovations where a Carrier sleeve is used with an
existing non --Carrier grille.
Use of a Carrier wall sleeve with a non-- Carrier grille
requires installation of an Accessory Baffle Kit (see
Fig. 8), which ensures a good seal between the unit
and exterior grille to prevent air recirculation. Air
recirculation is a large contributor to performance
loss and premature damage to major components.
BAFFLES
A07054

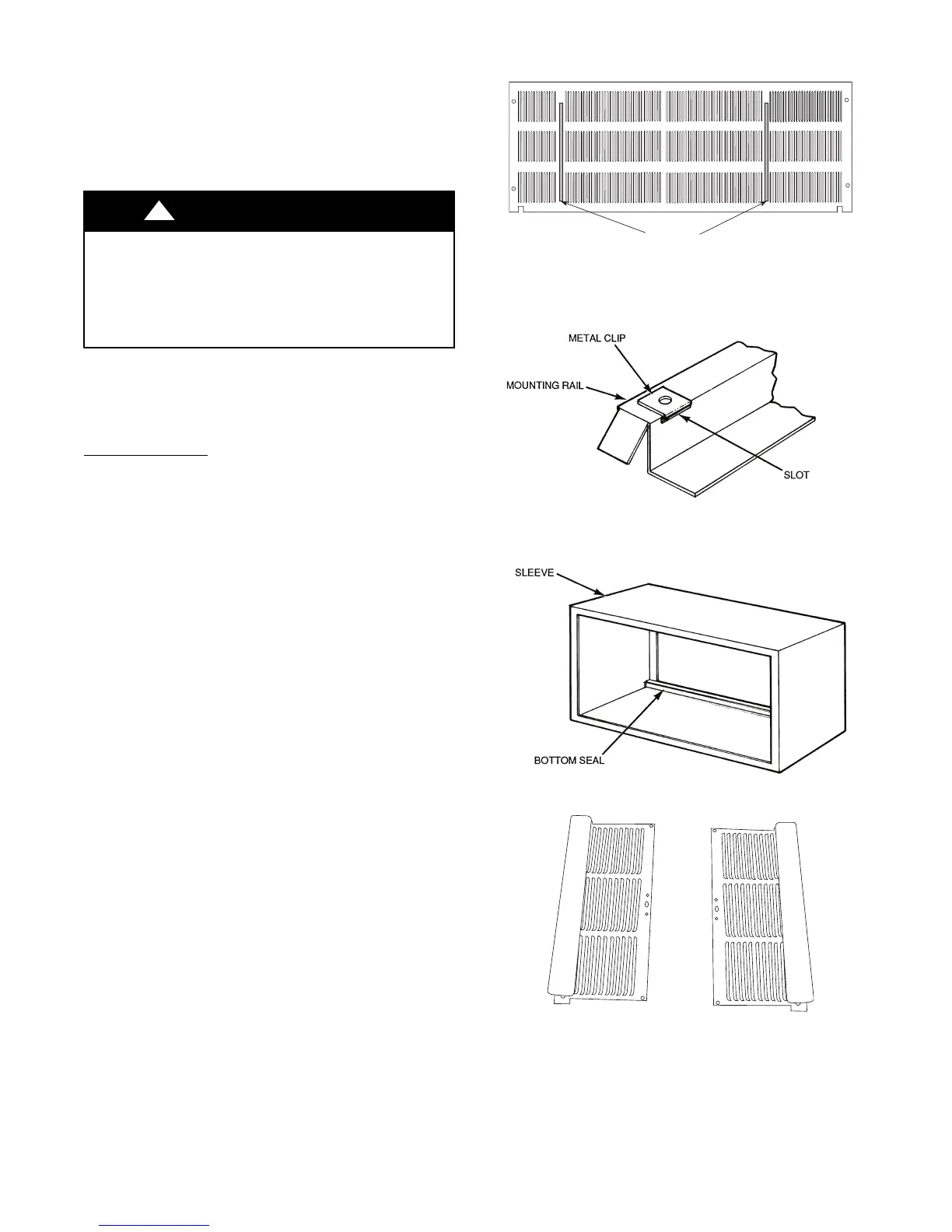

Fig. 5 – Remove Existing Outdoor Grille Baffles on
Competitive Grille
A07055
Fig. 6 – Remove Metal Clip on GE Metal Sleeve
A07056
Fig. 7 – Remove Bottom Seal From GE Plastic Sleeve
A07275
Fig. 8 – Accessory Baffle Kit
