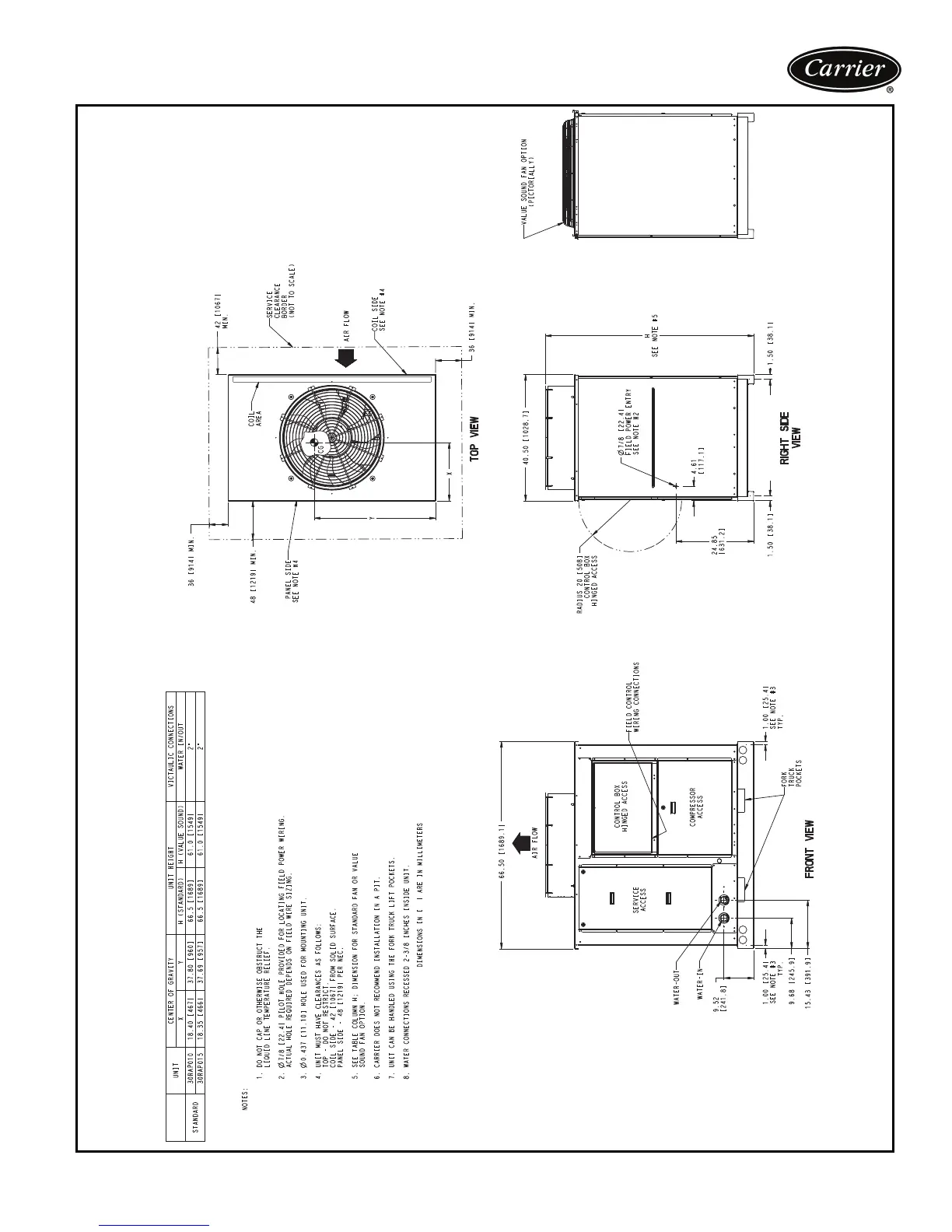

40.50 [1028.7]
FIELD POWER ENTRY
SEE NOTE #2
7/8 22.4[]
24.85
631.2[]
4.61
117.1[]
SEE NOTE #3
TYP.
1.00 25.4[]
SEE NOTE #3
TYP.
1.00 25.4[]
9.68 245.9[]
15.43 391.9[]
9.52
241.8[]
48 [1219] MIN.
36 [914] MIN.
42 [1067]
MIN.
36 [914] MIN.
66.50 [1689.1]
RADIUS 20 [508]
CONTROL BOX
HINGED ACCESS
1.50 38.1[]1.50 38.1[]
Y
X
H
SEE NOTE #5
UNIT
CENTER OF GRAVITY UNIT HEIGHT VICTAULIC CONNECTIONS
X Y H (STANDARD) H (VALUE SOUND) WATER IN/OUT
STANDARD
30RA010
18.40 [467] 37.80 [960] 66.5 [1689] 61.0 [1549] 2"
30RA015
18.35 [466] 37.69 [957] 66.5 [1689] 61.0 [1549] 2"
RIGHT SIDE
VIEW
CONTROL BOX
HINGED ACCESS
NOTES:
1. DO NOT CAP OR OTHERWISE OBSTRUCT THE
LIQUID LINE TEMPERATURE RELIEF.
2. 7/8 [22.4] PILOT HOLE PROVIDED FOR LOCATING FIELD POWER WIRING.
ACTUAL HOLE REQUIRED DEPENDS ON FIELD WIRE SIZING.
3. 0.437 [11.10] HOLE USED FOR MOUNTING UNIT.
4. UNIT MUST HAVE CLEARANCES AS FOLLOWS:
TOP - DO NOT RESTRICT.
COIL SIDE - 42 [1067] FROM SOLID SURFACE.
PANEL SIDE - 48 [1219] PER NEC.
5. SEE TABLE COLUMN H; DIMENSION FOR STANDARD FAN OR VALUE
SOUND FAN OPTION.
6. CARRIER DOES NOT RECOMMEND INSTALLATION IN A PIT.
7. UNIT CAN BE HANDLED USING THE FORK TRUCK LIFT POCKETS.
8. WATER CONNECTIONS RECESSED 2-3/8 INCHES INSIDE UNIT.
DIMENSIONS IN [ ] ARE IN MILLIMETERS
COMPRESSOR
ACCESS
COIL
AREA
AIR FLOW
AIR FLOW
FRONT VIEW
PANEL SIDE
SEE NOTE #4
COIL SIDE
SEE NOTE #4
SERVICE
ACCESS
SERVICE
CLEARANCE
BORDER
(NOT TO SCALE)
TOP VIEW
CG
VALUE SOUND FAN OPTION
(PICTORIALLY)
FIELD CONTROL
WIRING CONNECTIONS
WATER-IN
WATER-OUT
FORK
TRUCK
POCKETS
9. DIMENSIONS ARE IN INCHES.
