Torque to
115-125 ft.-lbs.
(155-170 Nm)

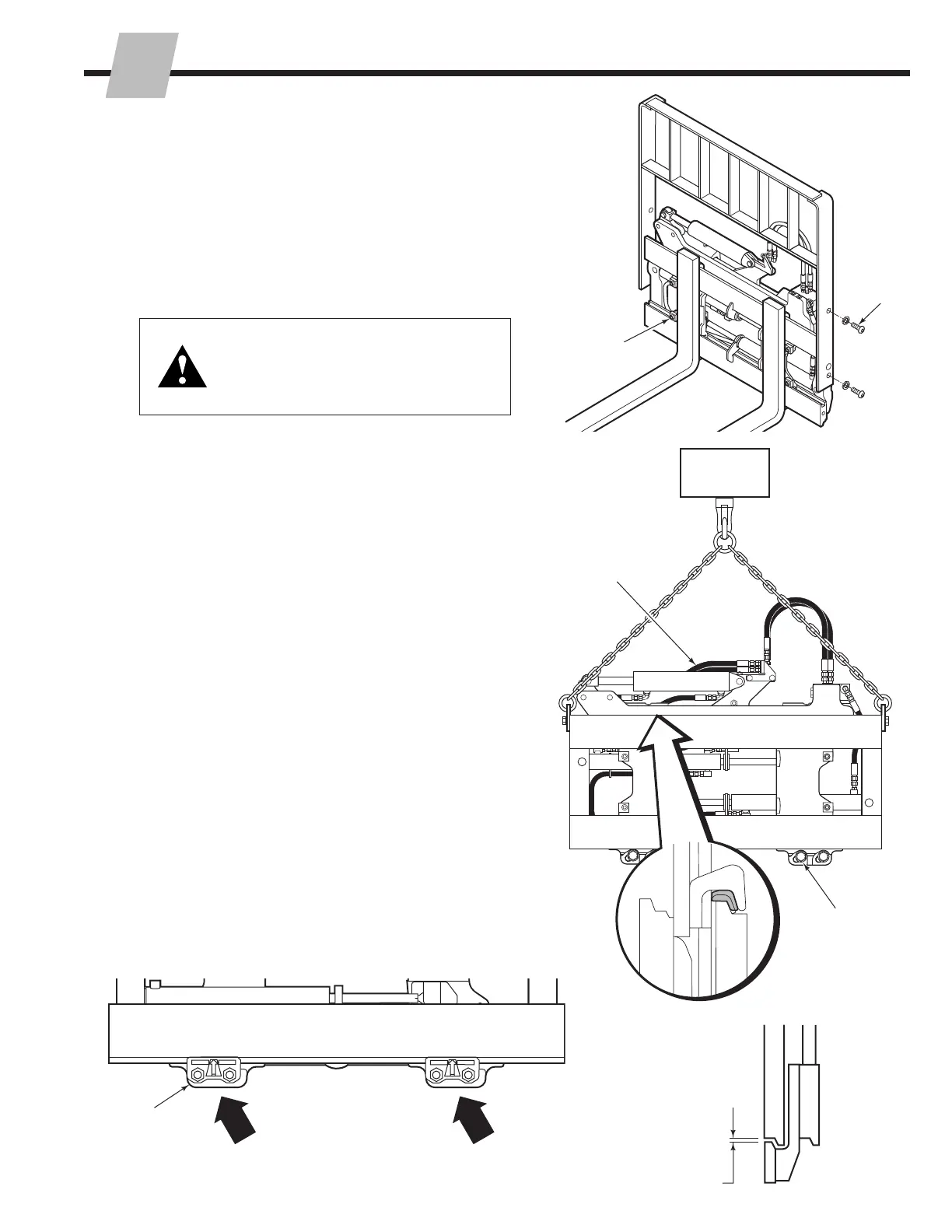

5.1 Attachment Removal
1 Remove the backrest. For reassembly tighten the cap-
screws to a torque of 145 ft.-lbs. (195 Nm) for Cascade
backrests only. Consult the lift truck service manual if
equipped with truck manufacturer’s backrest.
2 Remove the fork stops from the fork carrier. Remove the
forks.
6
Clearance
.09 in. (2.3 mm)
WARNING: Before removing any hoses,
relieve pressure in the hydraulic system.
Turn the truck off, then actuate the
truck control valve several times in both
directions.
3 Disconnect the attachment supply hoses. Tag the
hoses for reassembly.
4 Remove the lower mounting hooks.
5 Attach a 1000 lb. (450 kg) capacity overhead hoist.
Remove the attachment from the truck carriage.
6 For installation, reverse the above procedures except
for the following special instructions:
• Clean the upper bearings and upper hook bearing
areas.
• Locate the upper bearings in the anchor bracket
cutouts.
• Install the lower mounting hooks up tight against the
carriage bar then back off on rib position. Tighten
the capscrews to a torque of 115-125 ft.-lbs.
(155-169 Nm).
6
4
3
1
2
1000 lb
(450 kg)
