PECIFICATIONS
S
29
208743 Rev. 1
6.1-3 Truck Carriage
The truck carriage must conform to ISO dimensional
standard 2328, equivalent to Industrial Truck Association
(ITA) dimensions shown.
Make sure the truck carriage is clean and the notches are
undamaged.

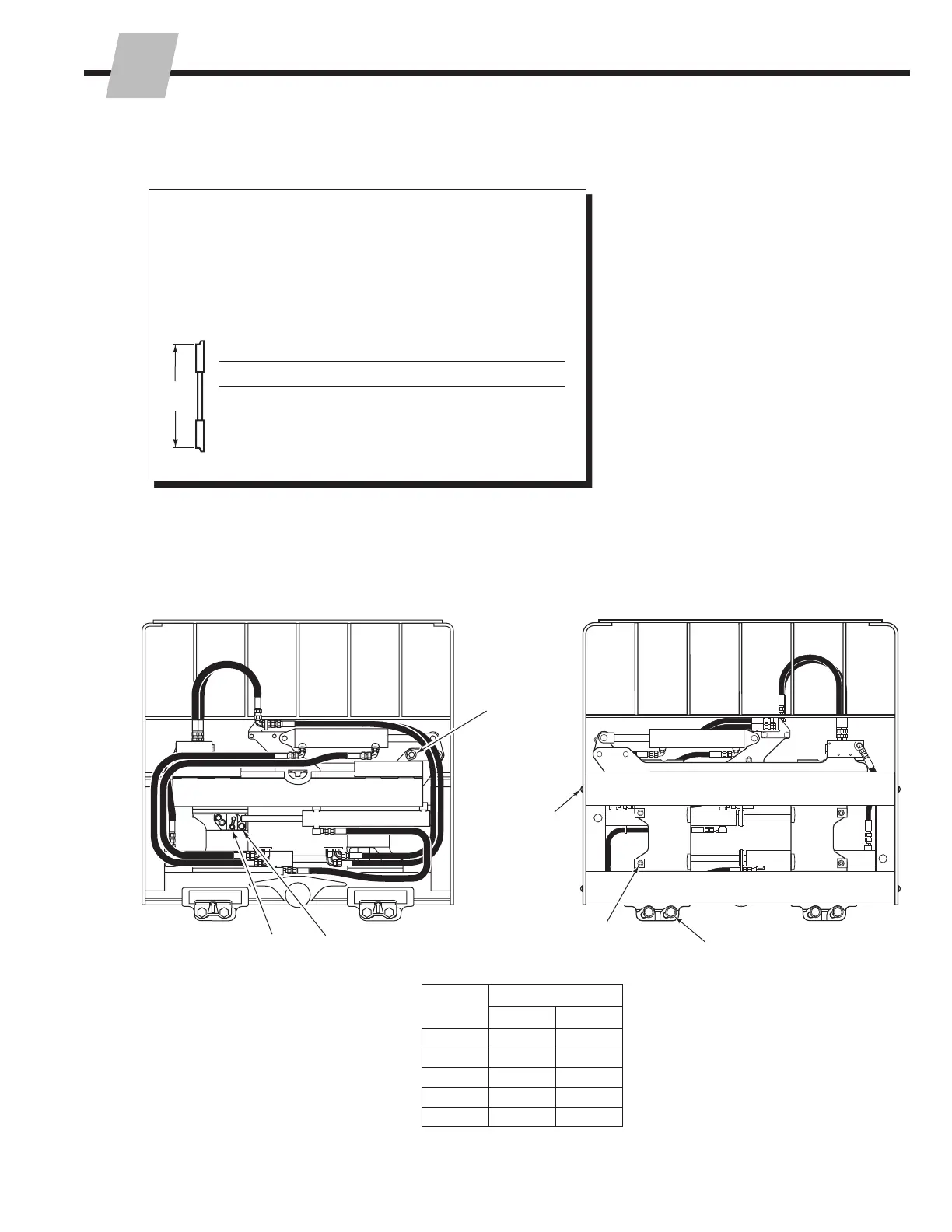

6.1-4 Torque Values
Dimension A − ITA (ISO)
Mounting Minimum Maximum
Class II
14.94 in. (380.0 mm) 15.00 in. (381.0 mm)
Class III
18.68 in. (474.5 mm) 18.74 in. (476.0 mm)
Class IV
23.44 in. (595.5 mm) 23.50 in. (597.0 mm)
1
1
2
3
4
5
Ref. No.
Torque Values
Ft.-lbs. (Nm)
1▲ 29-37 40-50
2 55-60 75-80
3 148-162 200-220
4 7-9 10-12
5 16-18 22-25
▲ Cascade backrests only.
For other backrests see OEM
recommendations.
