No. Code No. Parts Name Specification Q'ty
Q1 2200 3577 Transistor 2SA1015
GR,O,Y
1
ZD1 2310 8879 Zener diode RD18EB1 1
D6,D7 2301 0011 Diode 1S2471 2
C5 2804 5476 Electrol
tic capacitor 50RE47 1
R2,R3,R5 2600 7313 Carbon film resistor R-25-10K-J 3
R1 2600 5612 Carbon film resistor R-25-2K-J 1
6221 4218 Connector sub assembly E311294-1(#22) 1
2. OPTION SPECIFICATIONS
2-1. Ink roll: IR-92
2-2. Waterproofing cover: WT-70
2-3. Roll paper: P-4575 (45×12×75D)
2-4. Electric power supply for an emergency: B-6
The parts for adding B-6 are not equipped. They should be ordered separately from service department.
The following parts are necessary to add B-6.
2-5. Keyboard Conversion Kit: CVK-S2/-L2/-LLL2/-FS2
2-6. Ink for supplement Super ink K
3. INSTALLATION

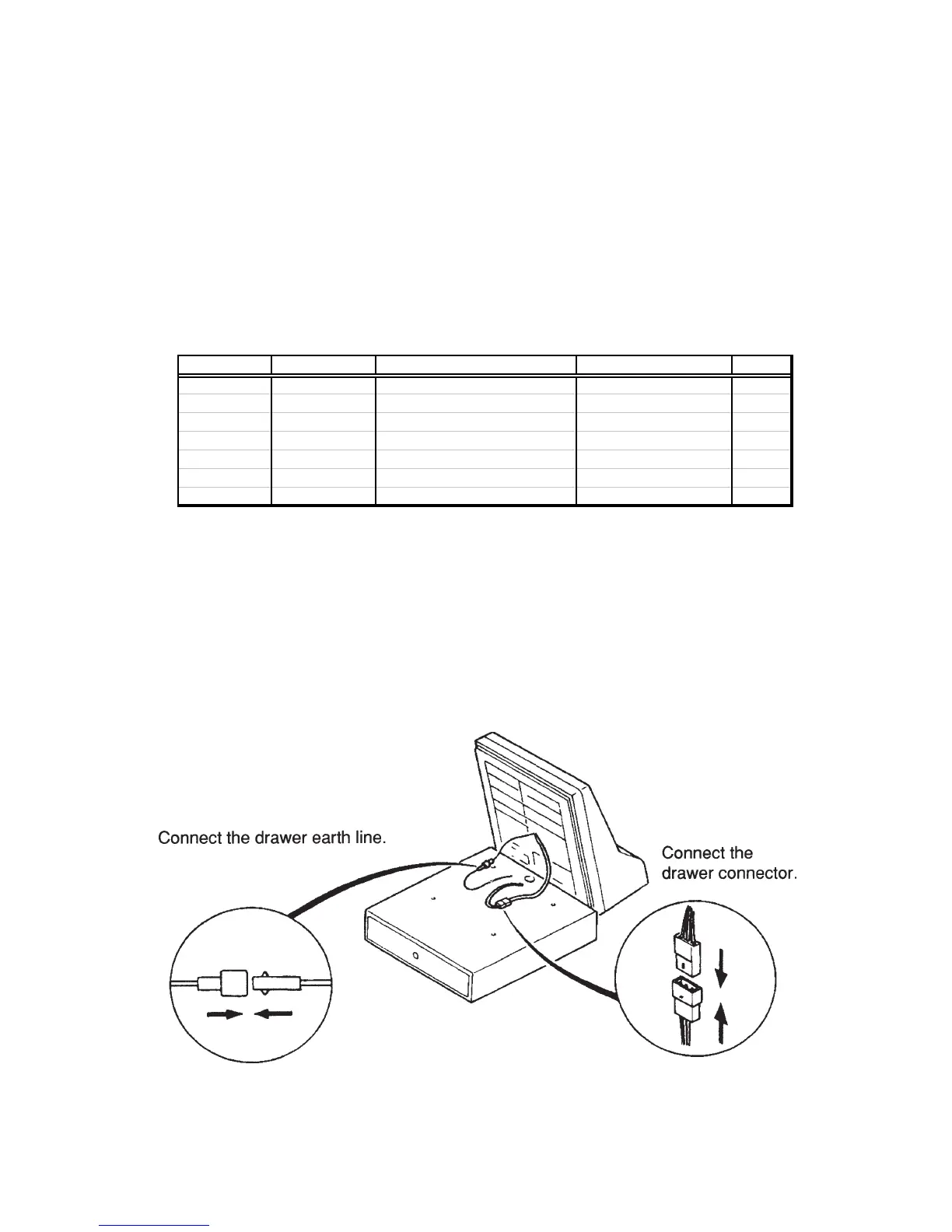

Connection is done of earth-line of drawer and main frame like lower chart.
To Next Page
