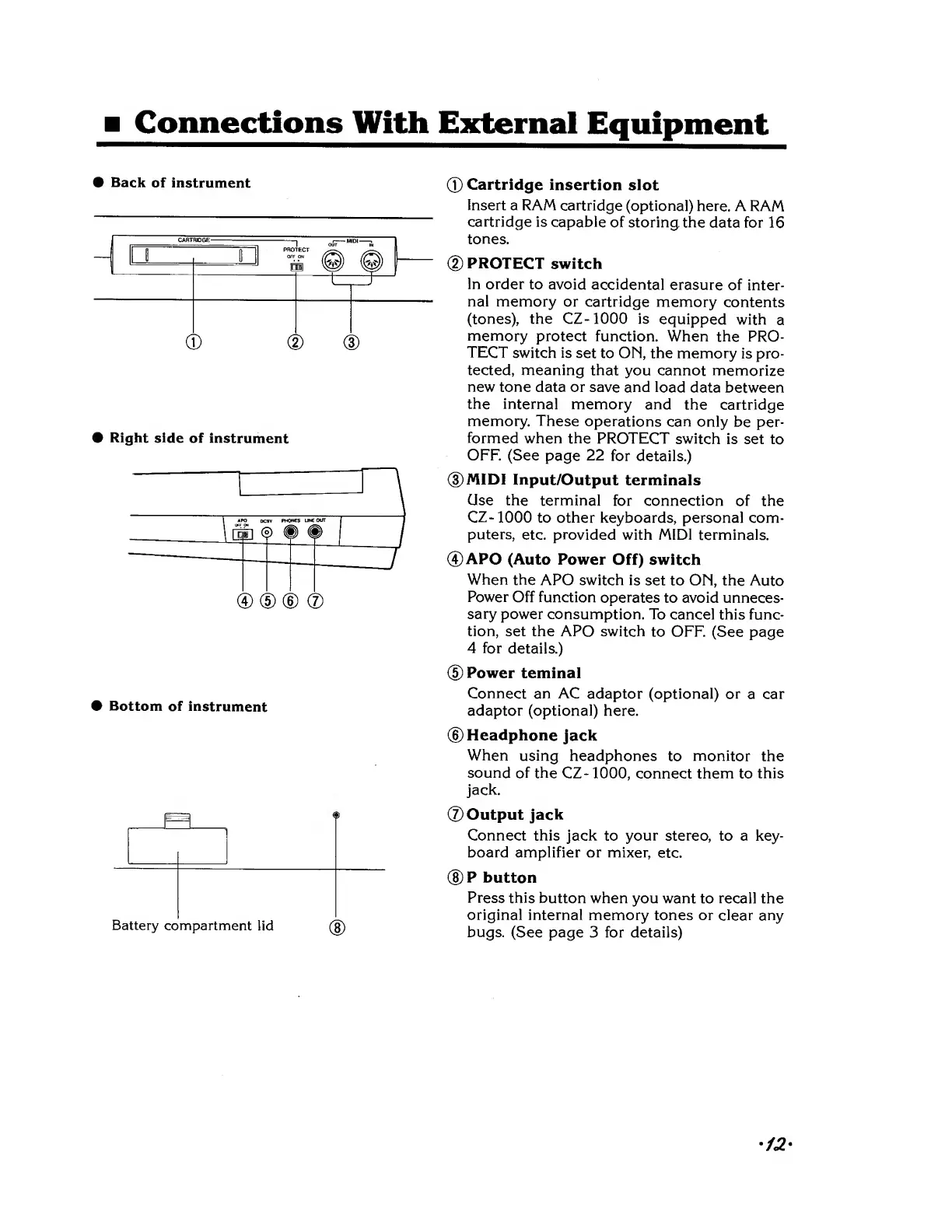

Casio CZ-1000 User Manual

Connections
With External
Equipment
•
Back
of instrument
®
® ®
•
Right
side
of
instrument
h
«
9V
PMC
UTS
LINE
® ® ® ®
•
Bottom
of
instrument
f
Battery compartment
lid
(J)
®
Cartridge
insertion slot
Insert a RAM cartridge
(optional)
here. A
RAM
cartridge
is
capable of
storing, the
data for
16
tones.
©
PROTECT
switch
In order
to avoid
accidental
erasure
of inter-
nal memory
or
cartridge
memory
contents
(tones), the CZ-1000 is
equipped
with
a
memory
protect function.
When
the
PRO-
TECT
switch is set
to ON, the memory
is pro-
tected, meaning
that
you cannot
memorize
new tone
data or save and
load
data between
the
internal
memory and
the
cartridge
memory. These
operations
can
only be
per-
formed when
the
PROTECT
switch
is set to
OFF. (See
page
22
for details.)
(3) MIDI
Input/Output
terminals
Use the
terminal
for connection of the
CZ-1000
to other
keyboards, personal com-
puters,
etc.
provided
with MIDI terminals.
®
APO
(Auto Power
Off) switch
When
the
APO
switch
is
set to ON, the
Auto
Power
Off function
operates
to avoid unneces-
sary
power consumption.
To cancel this
func-
tion,
set the APO switch
to OFF.
(See page
4 for
details.)
®
Power
teminal
Connect
an
AC
adaptor (optional) or
a car
adaptor
(optional) here.
©Headphone
jack
When
using headphones
to
monitor
the
sound
of the
CZ-
1000,
connect them to
this
jack.
©Output jack
Connect this jack
to
your stereo,
to a key-
board amplifier or mixer,
etc.
®P
button
Press this
button when
you
want
to
recall
the
original internal
memory tones or
clear any
bugs.
(See page 3 for details)
