— 3 —
2-1. C-In line (ECR to ECR)

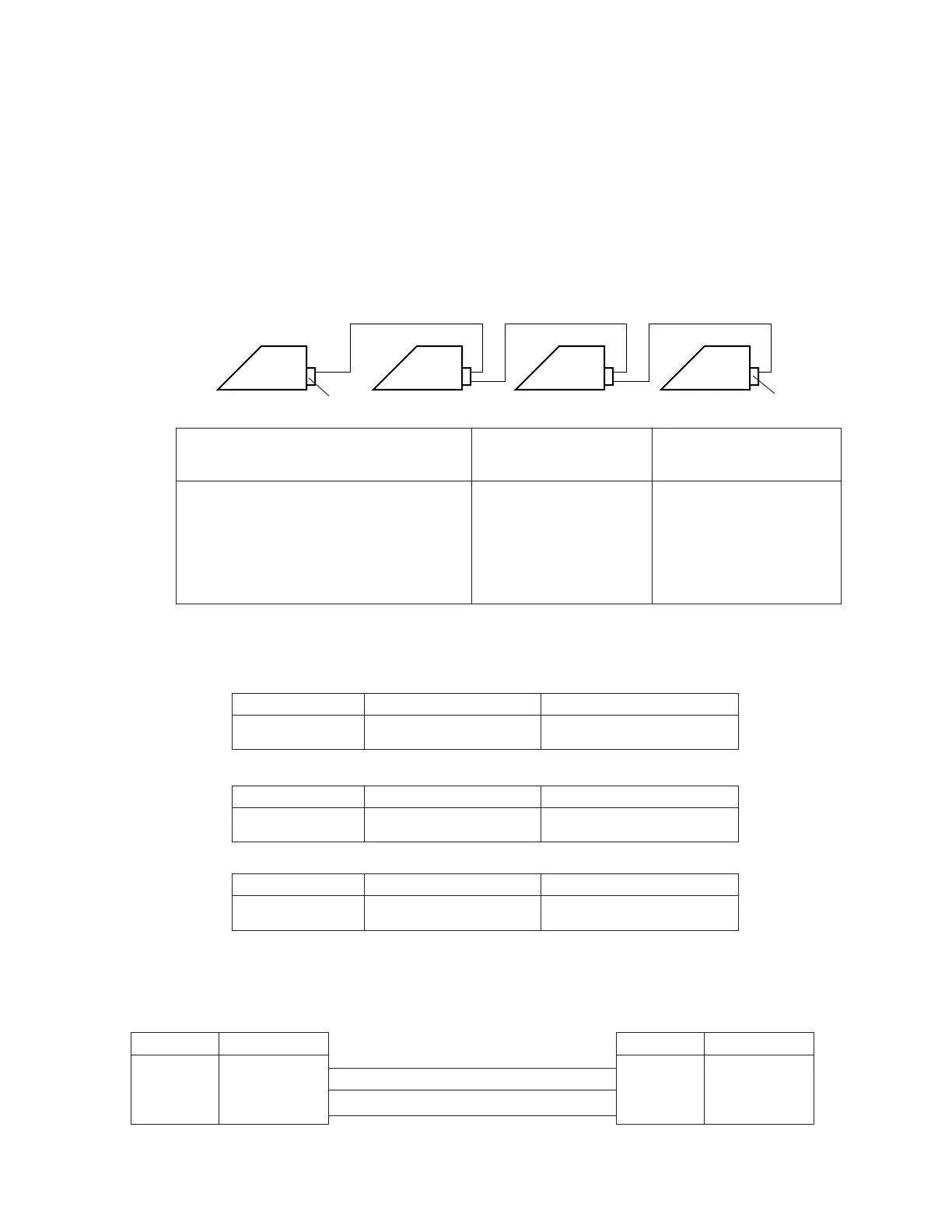

1) C-In line connection diagram
The maximum C-In line cable length and the maximum connection unit will be
varied by the in-line communication speed as shown below list.
Total cable length is max. A m
[C-In line cable wiring]
Master Satellite SatelliteSatellite
Terminater (100 ohms)
Terminater (100 ohms)
2) C-In line cable, Connector, and Terminater
C-In line cable
Code No. Parts name Specification
1904 4023 In-line cable IPEV-SLA0.5x1P
C-In line connector
Code No. Parts name Specification
3500 5820 In-line connector kit XLP-KIT-1
Terminater
Code No. Parts name Specification
2600 2516 Carbon film resistor R-25-100-J
3) Cable connection diagram
Signal Pin Signal Pin
SD 1 SD 1
RD 2 RD 2
FG FG plate FG FG plate
(Master side) (satellite side)
2. INTERFACE
C-In line communication speed Maximum Maximum
(Baud rate) connection unit cable length A ( m )
1.25 M bps 8 86
625 K bps 12 200
312.5 K bps 20 430
156.25 K bps 32 890
To Next Page
