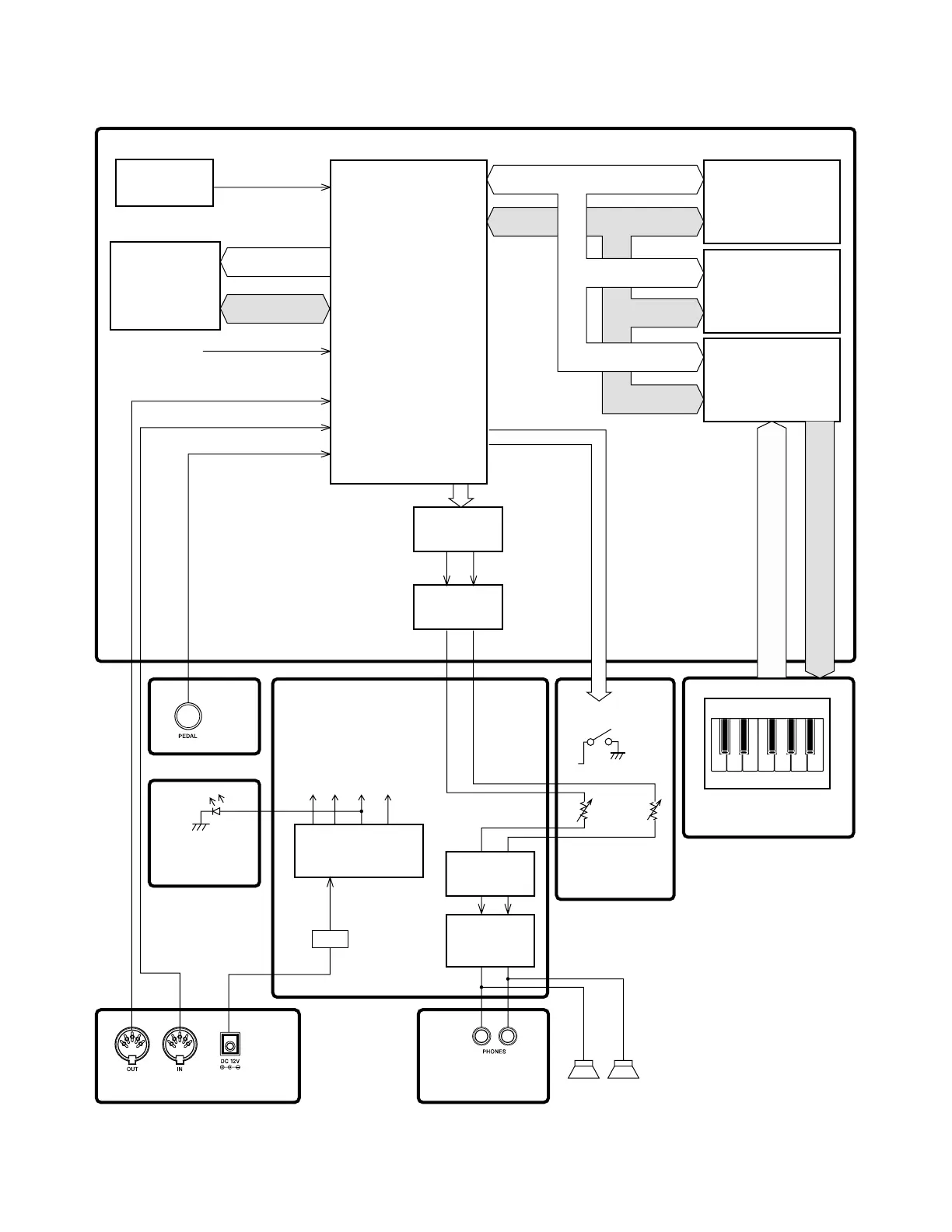

BLOCK DIAGRAM
RAM (1Mbit)
IC3
CY62128DV30LL
Reset IC
IC5
R1151N001C-TR
RESET
16.384MHz
EA0 ~ EA15,EA18
ED12 ~ ED19
MA0 ~ MA20
MD0 ~ MD7
Power Amplifier
IC201
LA4636
Filter
IC8, IC13
Filter
IC205
DAC IC15
µPD63200GS-E1
RAM (1Mbit)
IC4
CY62128DV30LL
ROM (64Mbit)
IC1
MR27V6402G19RTN03D
MA0 ~ MA20
MD0 ~ MD15
MA0 ~ MA3
MD0 ~ MD15
KEY CONTROLLER
IC14
TC190C020AF-001
Keyboard
Power Supply Circuit
IC202,Q206,Q207,
D206,D207
(12V)
VA12
(5V)
VD5
(5V)
VA5
(5V)
VI5
MA0 ~ MA16, 25
Speakers
(L)
(R)
Main
Volume
CONSOLE PCB
(M406-CNA1)
CONSOLE PCB
(M406-CNA3)
Keyboard PCB
(MCPZ-KYA1/KYB2/KYA3)
SUB PCB
(M404-PSA1)
CONSOLE PCB (M406-CNA4)
CONSOLE PCB
(M406-CNA2)
MAIN PCB (M404-MDA1)
MPU
IC7
uPD914AGM-JED
Buttons
SI0 ~ SI7 FI0 ~ FI7
LOUT ROUT
D201
KC0 ~ KC7
