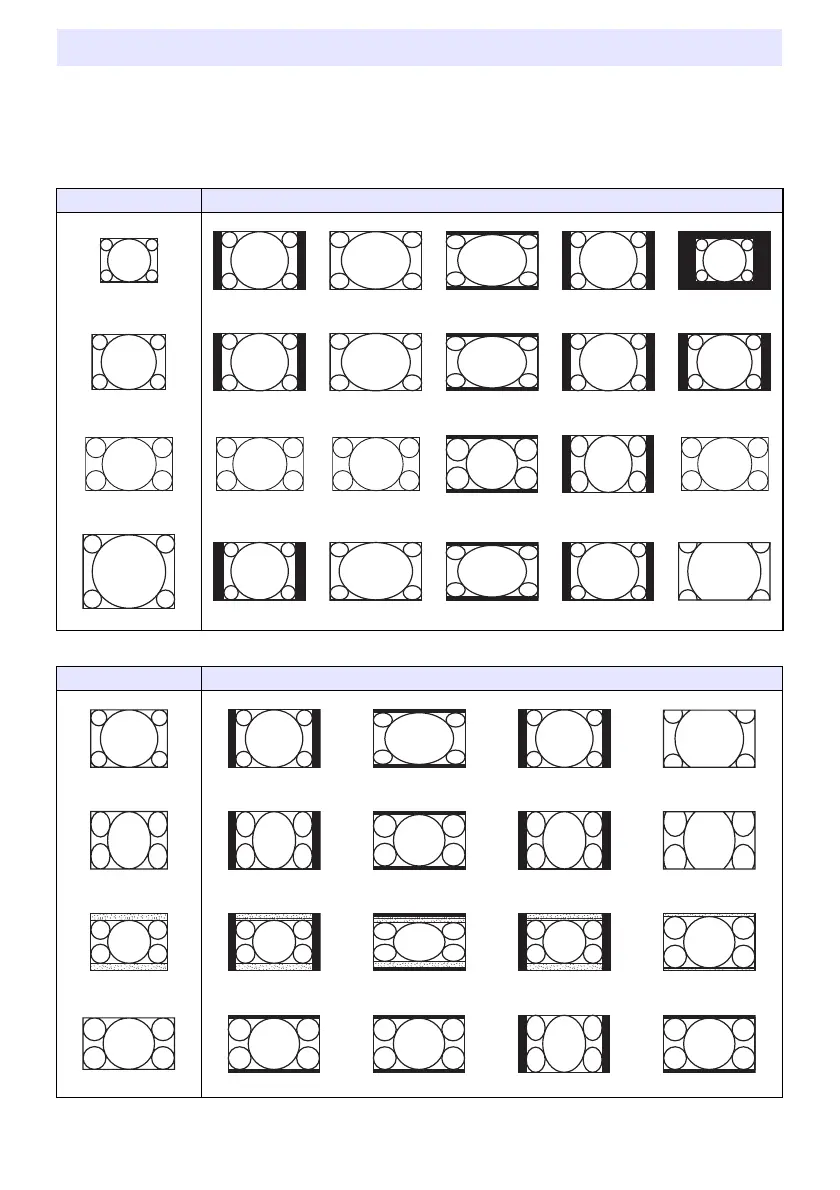

The following shows how images are projected in accordance with the type of the input signal and the

aspect ratio setting of the projector.

XJ-A242/XJ-A247/XJ-A252/XJ-A257/XJ-M241/XJ-M246/XJ-M251/XJ-M256

Input source: RGB or HDMI (PC)

Input source: Video, component or HDMI (DTV)

Aspect Ratio Setting and Projection Image

Input Signal Normal Full 16:9 4:3 True

SVGA (800 × 600)

XGA (1024 × 768)

WXGA (1280 × 800)

SXGA (1280 × 1024)

Input Signal Normal 16:9 4:3 Letter Box

4:3 Aspect Image

Squeezed Image

Letter Box Image

16:9 Aspect Image

Table of Contents3
Projector Features and Main Functions7
Features Common to All Models7
USB Model Features7
Other Model-Specific Features8
Getting Ready9
Setting up the Projector9
Setup Precautions10
Connecting Projector Cables11
Remote Controller12
To Load Remote Controller Batteries13
To Replace Remote Controller Batteries13
Projecting an Image14
Selecting the Input Source14
To Select the Input Source15
Resolution15
Input Mode (XJ-M Series Only)16
Entering the 3D Input Mode16
Returning to the Normal Input Mode from the 3D Input Mode17
Horizontal Flipping in the 3D Input Mode17
To Swap the Left and Right Images17
Projecting with File Viewer (USB Model Only)18
File Viewer Overview18
Projecting Files Located in Projector Internal Memory18
To Copy Files from a Computer to Projector Internal Memory19
Starting Projection of Files Located in Projector Internal Memory21
To Format Projector Internal Memory (Windows Users Only)22
Projecting Files from a Memory Device Connected by USB23
To Connect a USB Flash Drive to the Projector23
To Connect a Memory Card to the Projector24
To Connect a Digital Camera to the Projector24
To Start Projection of Files that Are on a Memory Device Connected Via USB25
Projecting Files27
To Project a Presentation File27
To Project a PDF File28
To Project an Image File29
To Project a Movie File29
File Menu Operations31
To Toggle the File Menu between the List View and Icon View31
To Scroll the File Menu31
To Open a Folder31
To Exit the Current Folder and Move up to the Next Level31
To Return to the Main Screen from the File Menu31
Configuring File Viewer Settings32
To Configure File Viewer Settings32
Autorun34
To Auto Project Images Files or a Movie File from a USB Flash Drive34
To Auto Project Images Files or a Movie File from Projector Internal Memory35
File Viewer Troubleshooting36
File Viewer Error Messages37
Using EZ-Converter FA to Convert Powerpoint Files to ECA or Ptg Files38
To Convert a Powerpoint File to an ECA File or Ptg File39
To Specify the Screen Resolution of the ECA File or Ptg File41
To Specify the Maximum Animation Display Time41
To Play Back an ECA File or Ptg File on Your Computer41
Projecting with the USB Display Function (USB Model Only)43
USB Display Function Overview43
Projecting Computer Screen Contents over a USB Connection43
To Project Windows Computer Screen Contents over a USB Connection for the First Time44
To Project Mac os Computer Screen Contents over a USB Connection for the First Time45
To Project Computer Screen Contents over a USB Connection after the First Time47
Projecting the Screen Image of a Graphing Calculator (USB Model Only)48
To Project the Screen Image of a Graphing Calculator48
Operating the Projector49
Output Image and Audio Operations49
To Use Manual Keystone Correction (KEYSTONE)49
To Zoom an Image (D-ZOOM)49
To Adjust the Volume Level (VOLUME)49
To Mute the Audio (VOLUME)50
To Momentarily Blank the Image and Mute the Audio (BLANK)50
To Freeze an Image (FREEZE)50
To Auto Adjust an Image (AUTO)50
To Change the Aspect Ratio of the Projected Image (ASPECT)51
To Adjust Image Brightness (FUNC)52
To Change the Color Mode (FUNC)52
Eco Mode (ECO)53
To Select the Eco Mode53
Using the Presentation Timer (TIMER)54
To Display the Timer54
To Display the Timer Function Menu54
To Configure Timer Settings55
To Start a Countdown Timer Operation55
To Pause the Timer Countdown56
To Resume a Paused Timer Countdown56
To Reset the Timer to Its Start Time56
Using the Setup Menu (MENU)57
Basic Setup Menu Operations57
Setup Menu Settings57
Password Protection62
Using the Password Feature62
To Change the Password63
To Change the Power on Password Setting64
To Change the Projector Internal Storage Function Password64
Control Panel Lock65
To Lock the Control Panel65
To Unlock the Control Panel65
Cleaning the Projector66
Cleaning the Projector Exterior66
Cleaning the Lens66
Cleaning Vents66
Troubleshooting67
Indicators67
Error Indicators and Warning Messages68
Projector Troubleshooting70
Appendix72
Connecting to a Component Video Output72
Connecting to a Composite Video Output or S-Video Output (XJ-M Series Only)73
Updating Firmware and Transferring a User Logo74
To Connect the Projector's LOGO Port with a Computer's USB Port74
Hanging the Projector from a Ceiling75
Projection Distance and Screen Size76
Aspect Ratio Setting and Projection Image78
Supported Signals80
Projector RS-232C Control83
To Establish a Serial Connection between the Projector and a Computer83
