This section explains how to establish a component video connection between the projector and a
video device.
 Component video output terminals come in 3-terminal sets: Y·Cb·Cr or Y·Pb·Pr. Be sure to match
the colors of the plugs on a component video cable with the colors of the terminals (Green: Y;
Blue: Cb/Pb; Red: Cr/Pr).
 Note that connection only to an analog component video output terminal is supported.
Connection to a digital output terminal is not supported.
XJ-V Series

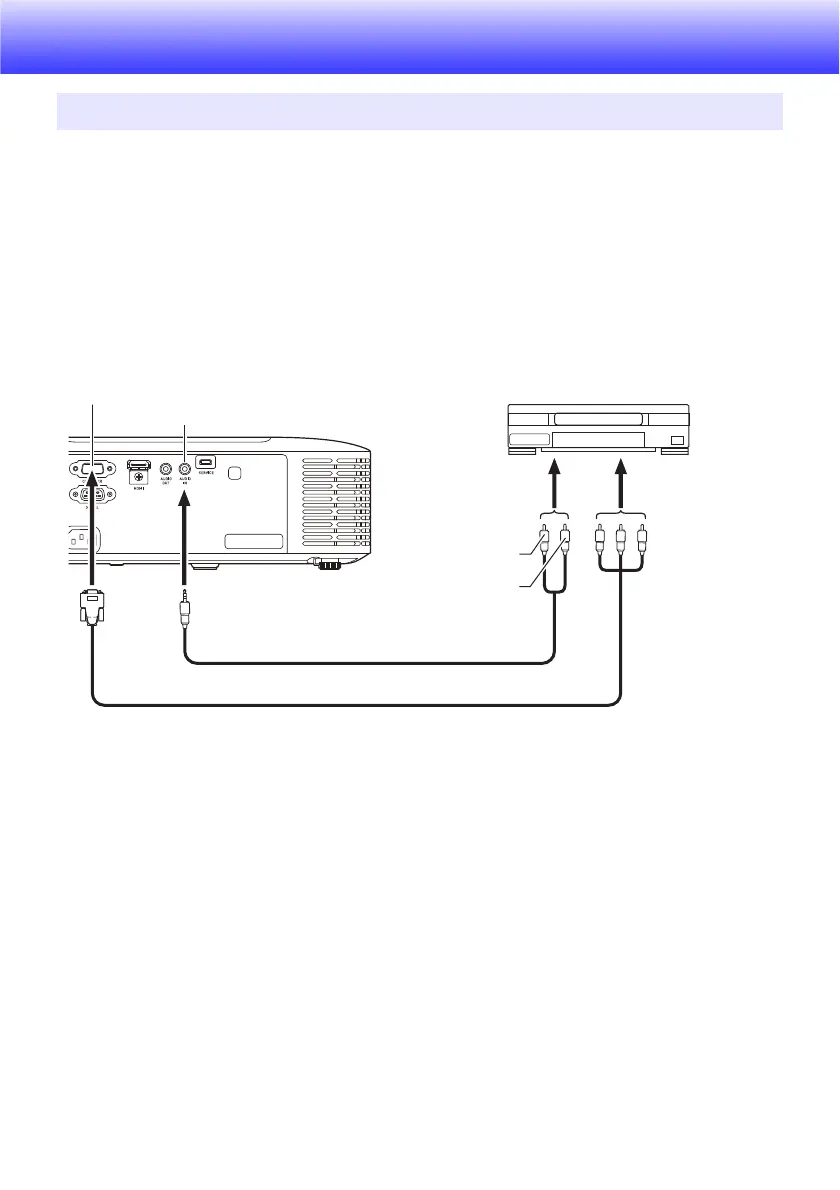

Connecting to a Component Video Output
Projector
Stereo mini plug

Pin plug type audio cable
(commercially available)
To component video
output terminals
Component video cable (commercially available)
To audio output terminals
White
Red
COMPUTER terminal
AUDIO IN terminal
Video device
