Note
 Note that regardless of whether the image being projected is being input via the projector’s
S-VIDEO terminal or VIDEO terminal, the projector outputs audio that is input via the
projector’s AUDIO IN L/R terminals.

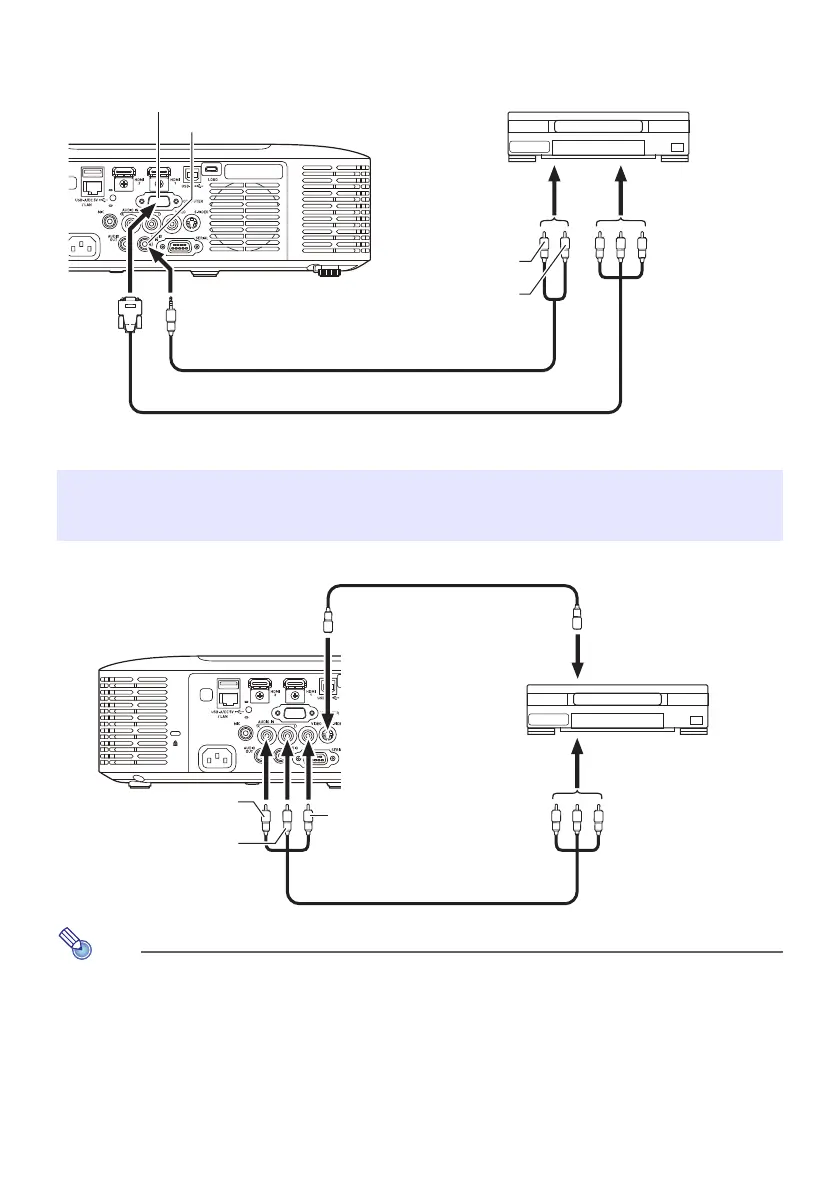

Connecting to a Composite Video Output or S-Video
Output (XJ-F Series Only)
Projector
Video device
Stereo mini plug  Pin plug type audio cable
(commercially available)
To component video
output terminals
Component video cable (commercially available)
To audio output terminals
White
Red
COMPUTER terminal
AUDIO IN terminal
To S-video output terminal
To video/audio output terminal
Yellow: To VIDEO terminal
To S-VIDEO terminal
Red: To AUDIO IN R terminal
White: To AUDIO IN L terminal
Projector
Video device
S-video cable (commercially available)
Pin plug type video/audio cable
(commercially available)
