How to Install the Hob
How to install the hob:
Overall dimensions of the hob: width 900mm depth 350mm
Worktop cut-out dimensions: width 880mm depth 335mm

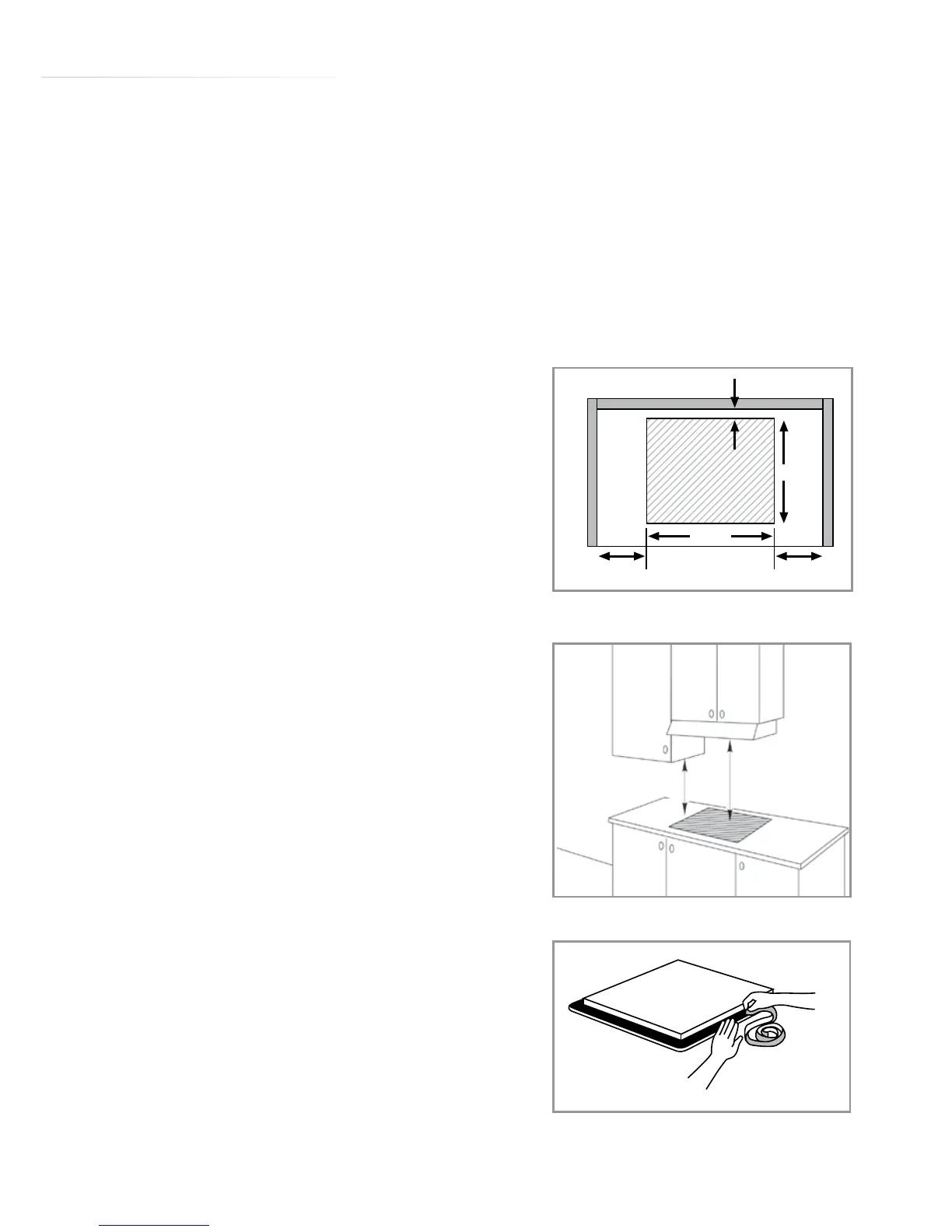

1. Make the required hole in the
worktop. Before doing this, you must
check the instructions supplied with
any cooker hood to ensure that you
will have the required clearance.
The cut-out (Fig. 7) shows a 60mm
gap from the wall to the cut-out
edge. This makes the distance from
the hob, when fited, to the back
wall 50mm. If a splashback/worktop
upstand is to be fitted, take this
into account when cutting the hole.
The minimum distance that the hob
should be positioned away from the
rear wall or splashback is 50mm.
2. Position the hob seal, as shown in
Fig. 9, ensuring that the ends meet
without overlapping. Do not use
silicone type sealant.
65mm
470mm
550mm
150mm150mm
Fig. 7
>60mm
880mm
335mm
180mm180mm
Fig. 8
400mm
650mm
Fig. 9
