Fitting the decor door
Where non-standard decor doors are to be used, additional fitting
instructions are required to ensure compatibility with this product.
The appliance is supplied with a fitting template and these instructions
should be followed as normal.
However, the fitting template needs to be located lower down the

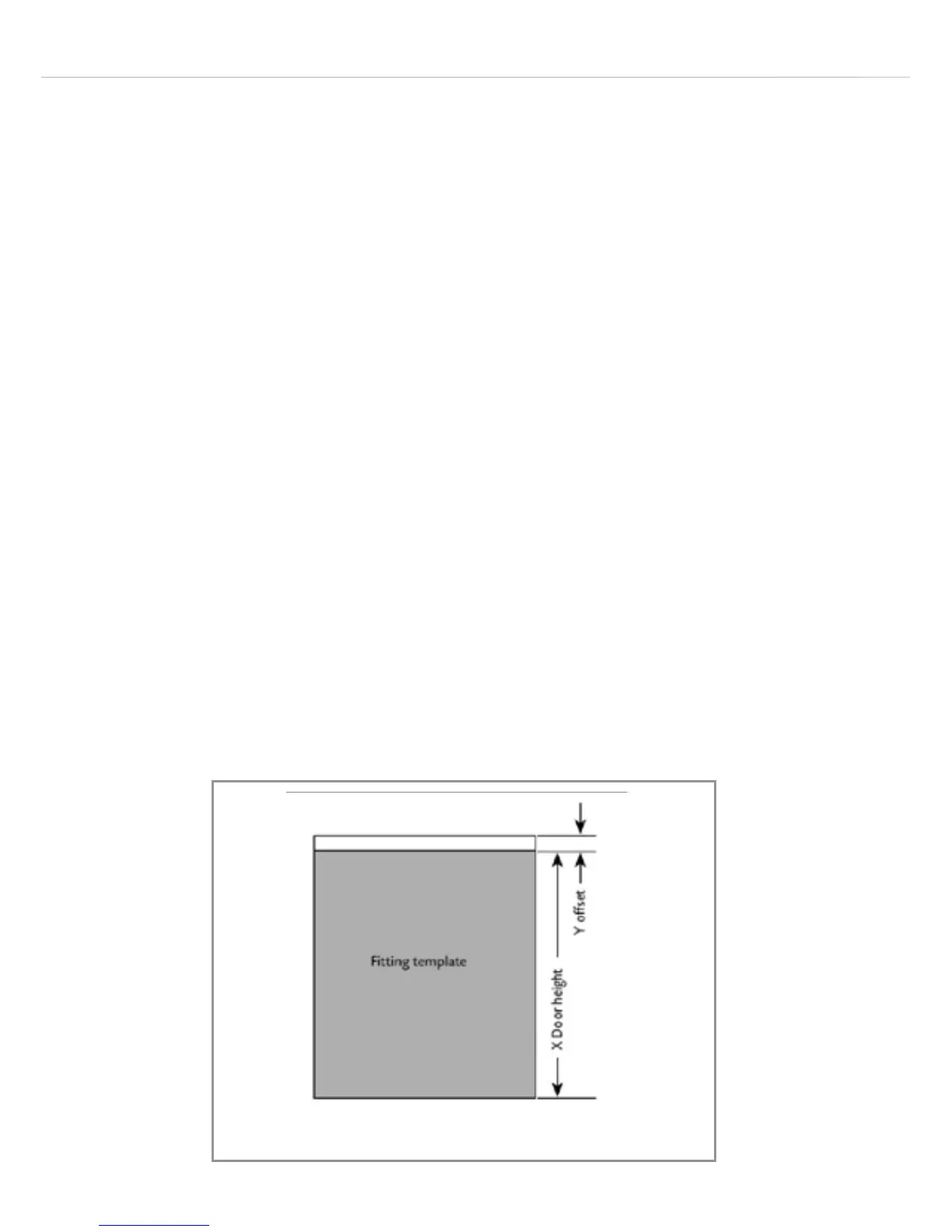

fascia door. This is shown below:
The amount of oset, Y, depends upon the height of the fascia door
and can be calculated as X = 723mm.
For example, if you have a 731mm tall fascia door and are fitting a
door to your dishwasher, then Y = 731-723 = 8mm.
Ensure that the hinge tensioners are adjusted to balance the weight
of the door.
