79022791 B Rev. A-17
SAFETY

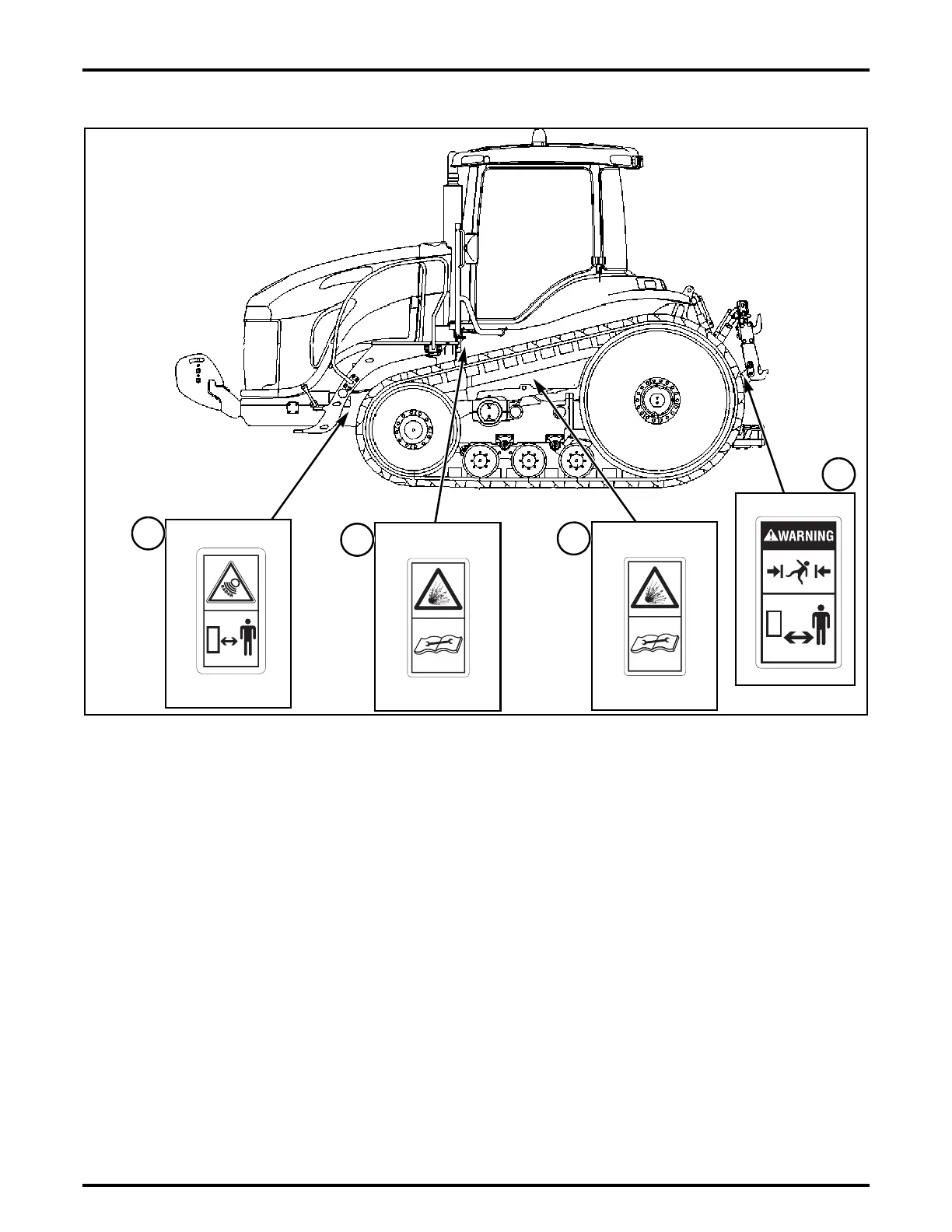

Side View
FIG. 10: Side View
(1) 501262D1 Accumulator Warning.
The safety sign is located on the accumulator for the
Service Brakes and on the track tensioner guard on both
sides of the tractor.
Hydraulic accumulator contains gas and oil under high
pressure. Improper removal or repair procedures could
cause severe injury. To remove or repair, instructions in
the service manual must be followed. Special equipment
is required for testing and charging.
(2) 501263D1 Radar Unit.
The safety sign is located on the outside of the frame rails
on both sides.
Do not look directly into the face of the ground speed
sensor while in operation. Eye injury may occur from the
low intensity microwave signal emitted.
(3) 501254D1 Three Point Hitch.
The
safety signs are located on the draft arms for the
Three Point on each side.
Do not stand between the implement and the tractor
when attaching to the implement. Standing between the
implement and the tractor during attachment can result in
personal injury or death.
FIG. 10
501262D1 1
501254D1 1
501262D1 1
501263D1 1
1
1
3
2
ch-0026
501254D1
501262D1
501262D1
501263D1
