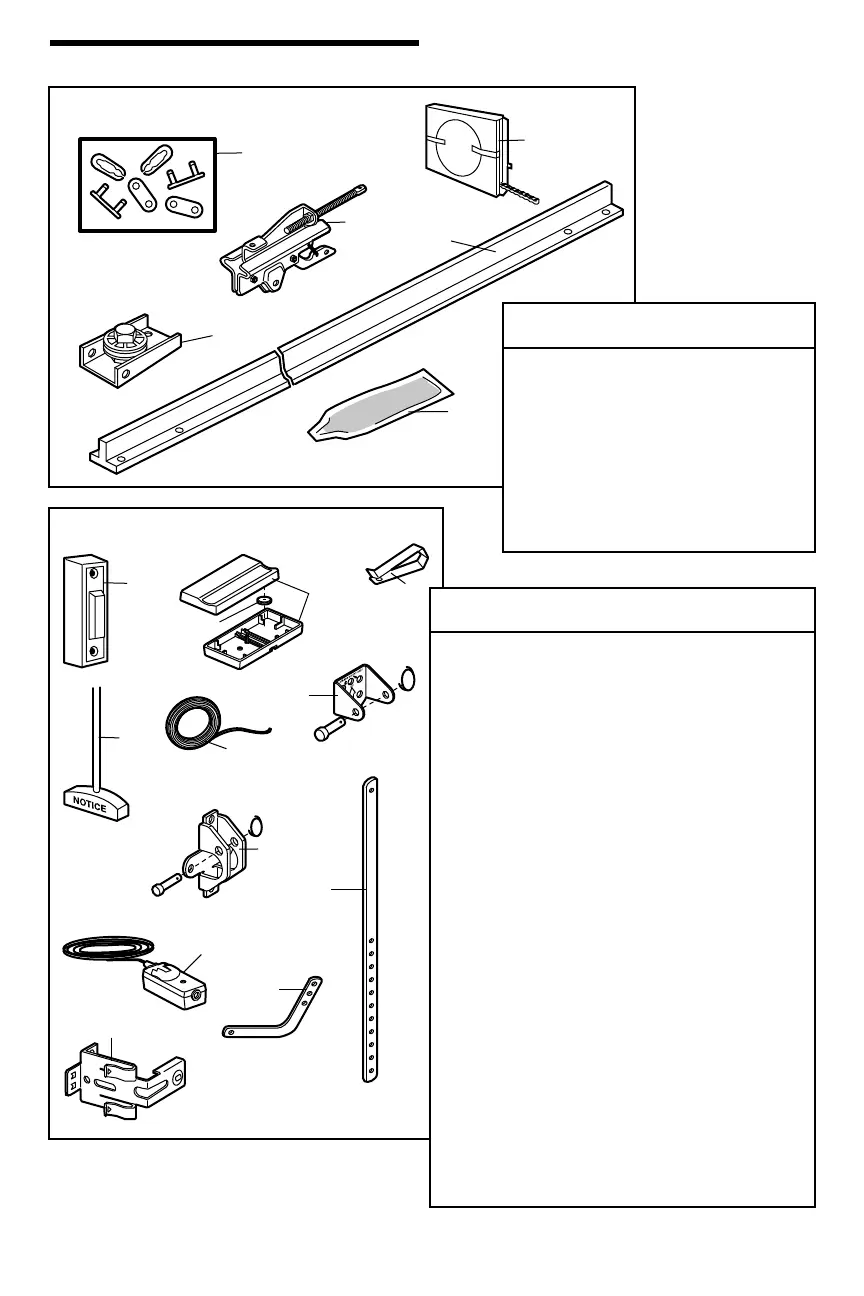

Installation Parts
REPAIR PARTS
KEY PART
NO. NO. DESCRIPTION
1 41A4166 Door control button
2 371LM Single-button remote control
3 10A20 3V2032 Lithium battery
4 29B137 Remote control visor clip
5 41A2828 Emergency release rope & handle
assembly
6 41B4494-1 2-conductor bell wire – white
& white/red
7 41A4353 Header bracket with clevis pin
& fastener
8 41A5047 Door bracket with clevis pin
& fastener
9 41A5034 Safety reversing sensor kit
(receiving and sending eyes) with
3 feet (.9 m) 2-conductor bell wire
attached
10 178B34 Straight door arm section
11 178B35 Curved door arm section
12 41A5266-1 Safety reversing sensor
brackets (2)
NOT SHOWN
41A2770-6 Installation hardware bag
(see page 6)
114A4261 Owner’s manual
114A4261SP Owner’s manual - Spanish
Rail Assembly Parts
KEY PART
NO. NO. DESCRIPTION
1 4A1008 Master link kit
2 41A4813 Chain pulley bracket
3 41A3489 Complete trolley assembly
4 1707LM 7 foot (2.1 m) complete rail
1708LM 8 foot (2.4 m) complete rail
1710LM 10 foot (3 m) complete rail
5 41D3484 Full chain assembly
6 83A11 Rail grease
1
3
5
4
6
2
1
3
2
4
7
6
10
8
9
12
11
5
