Chamberlain 1356M User Manual

38

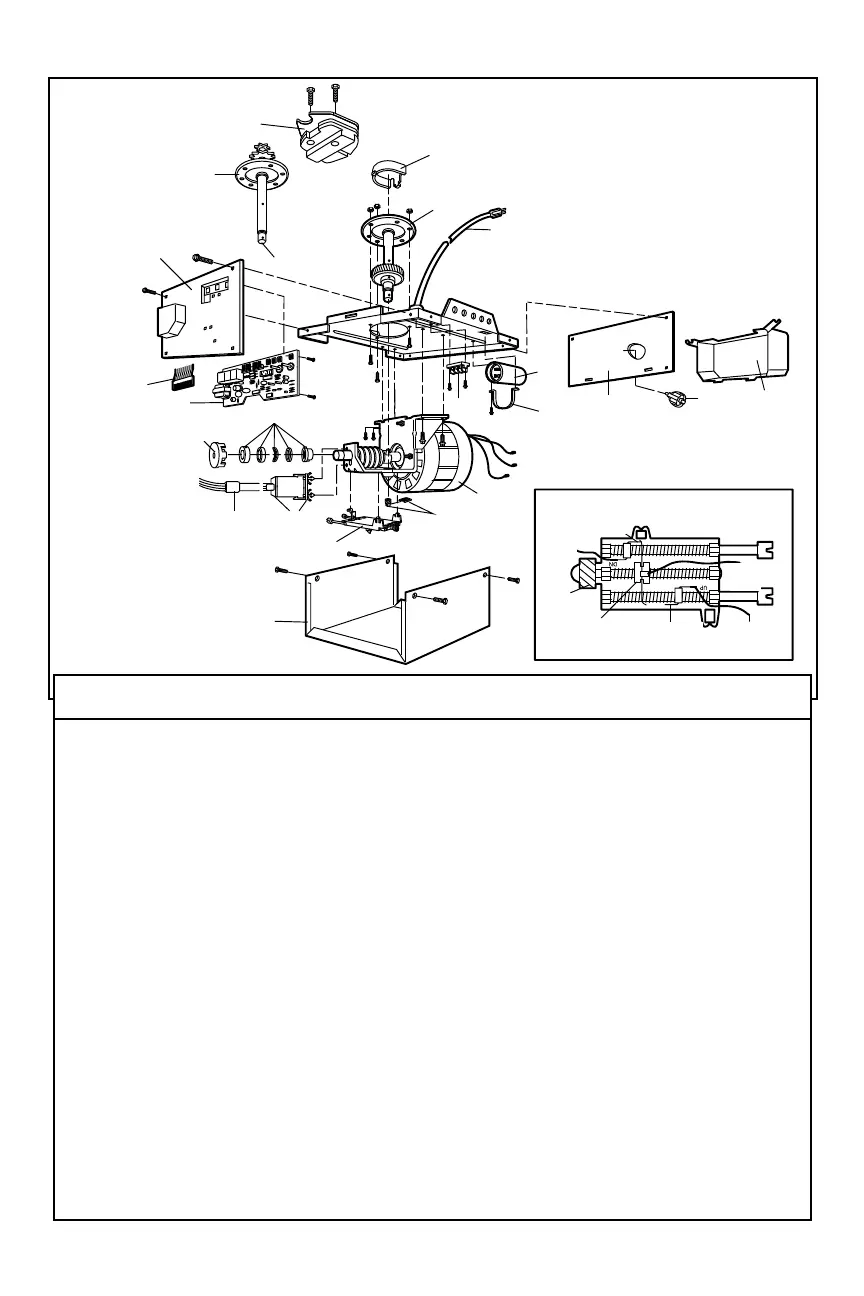

Motor Unit Assembly Parts
KEY PART
NO. NO. DESCRIPTION
1 41A4208-2 Chain spreader with screws
(1356M, 1346M)
1A 31D380 Sprocket cover
(1355M, 1345M)
2 41C4206 Gear and sprocket assembly
(1356M, 1346M)
2A 41C4220A Gear and sprocket assembly
(1355M, 1345M)
Complete with: Spring washer,
Thrust washer, Retaining ring,
Bearing plate, Roll pins (2), Drive
gear and worm gear, Helical gear
with retainer and grease
3 41B4245 Line cord
4 143D100 End panel with all labels
5 175B88 Light socket
6 108D36-2 Lens
7 30B532 Capacitor - 1/2 HP
30B533 Capacitor - 1/3 HP
8 12A373 Capacitor bracket
9 41A3150 Terminal block with screws
KEY PART
NO. NO. DESCRIPTION
10 41D3058 Universal replacement motor
& bracket assembly
Complete with: Motor, worm,
bracket, bearing assembly,
RPM sensor
11 41A3583-11 Cover 1/2 HP (1356M, 1355M)
41A3583-15 Cover 1/3 HP (1346M, 1345M)
12 41A2818 Helical gear & retainer with
grease
13 41D3452 Limit switch assembly
14 41C4398A RPM sensor assembly
15 41C4246 Wire harness assembly
with plug
16 41A2826 Shaft bearing kit
17 41A2822A Interrupter cup assembly
18 41A5021-1M-315 Receiver logic board assembly
Complete with: Logic board,
End panel with all labels,
Light socket
19 41A5014-3 End panel with all labels
NOT SHOWN
41A2825 Opener assembly hardware
kit (includes screws not
designated by a number in
illustration)
1
2
2A
1A
3
7
8
4
5
6
9
19
15
18
17
16
15
14
13
11
12
10
LIMIT SWITCH
ASSEMBLY
(Down)
Contact
Brown
Wire
Drive
Gear
Center Limit
Contact
(Up)
Contact
Yellow
Wire
Grey
Wire
