Carton Inventory

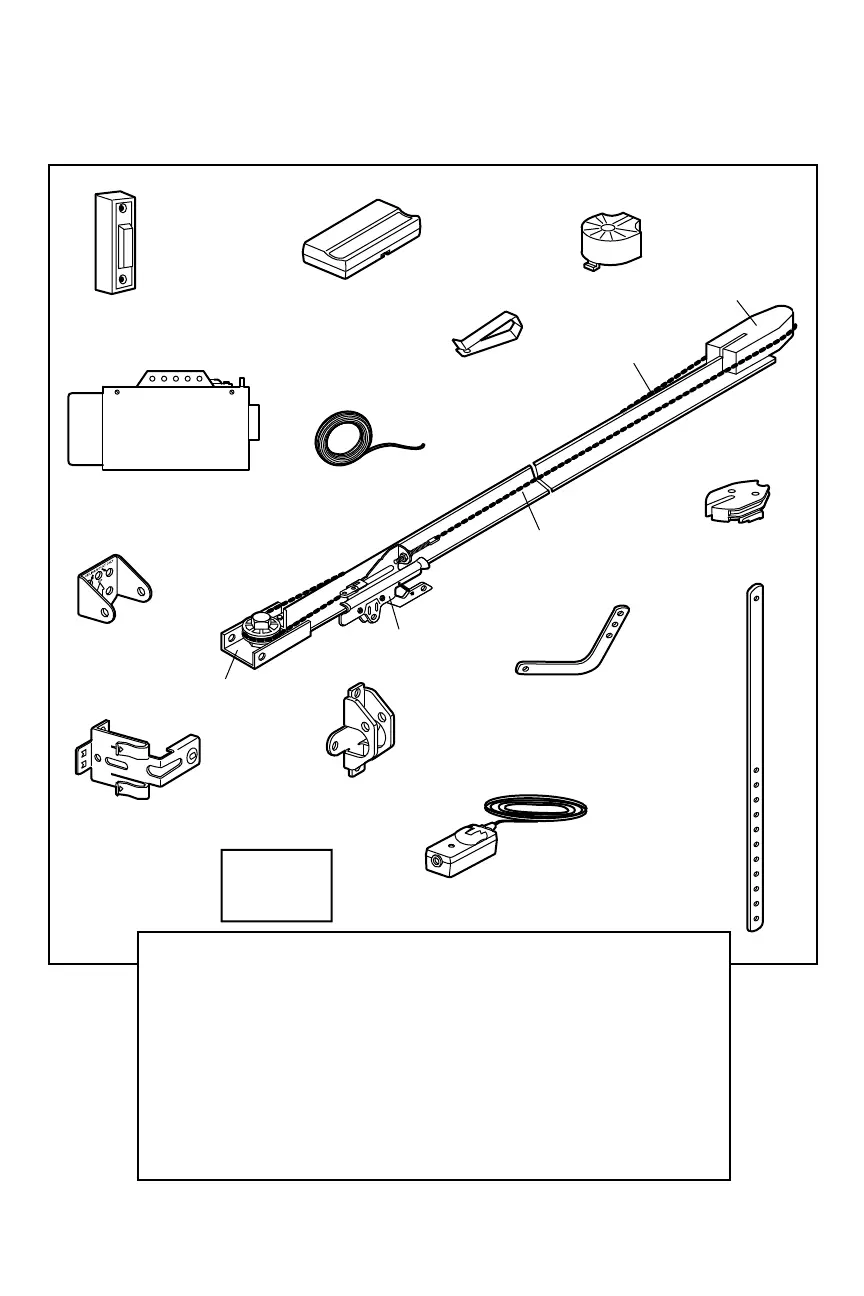

Your garage door opener is packaged in two cartons which
contain the motor unit and all parts illustrated below. Note
that accessories will depend on the model purchased. If
anything is missing, carefully check the packing material.
Parts may be stuck in the foam. Hardware for assembly
and installation is listed below. Save the carton and
packing material until installation and adjustment is
complete.
INSTALLATION HARDWARE
Hex Bolt 5/16"-18x7/8" (4)
Lag Screw 5/16"-9x1-5/8" (2)
Clevis Pin 5/16"x2-3/4" (1)
Clevis Pin 5/16"x1-1/4" (1)
Clevis Pin 5/16"x1" (1)
Nut 5/16"-18 (4)
Lock Washer 5/16" (4)
Self-Threading Screw 1/4"-14x5/8" (2)
Insulated Staples
Ring Fastener (3)
Drywall Anchors (2)
Carriage Bolt 1/4"-20x1/2" (2)
Wing Nut 1/4"-20 (2)
Rope
Handle
SECURITY✚
®
Single-Button
Remote Control (1)
Lighted Door Control Button
with 6ABX1-1/2" Screws
Motor Unit with Light Lens
Header Bracket
Safety Reversing
Sensor Bracket (2)
Safety Labels
and
Literature
Door Bracket
Curved Door
Arm Section
2-Conductor Bell
Wire White &
White/Red
Trolley
Chain Pulley
Bracket
Remote Control
Visor Clip
Chain
Styrofoam
One-Piece
Rail
Sprocket Cover
Models 1355M
& 1345M ONLY
Chain Spreader with
Screws and Washers
Models 1346M
& 1356M ONLY
Straight Door
Arm Section
The Protector System
®
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire Attached
