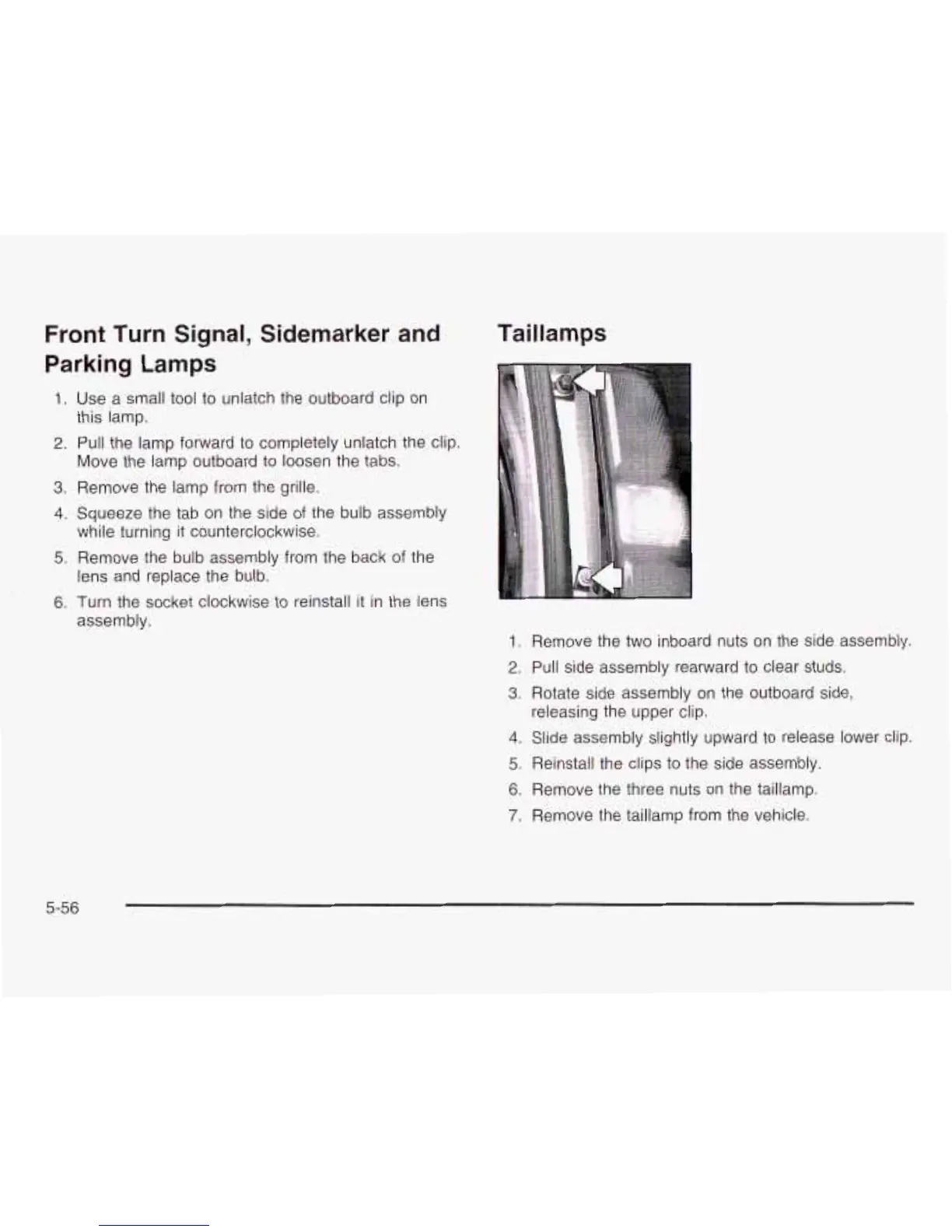

Front Turn Signal, Sidemarker and
Parking Lamps
1.
Use a small tool
to
unlatch the outboard clip on
this lamp.
2.
Pull the lamp forward
to
completely unlatch the clip.
3.
Remove the lamp from the grille.
4.
Squeeze the tab on the side of the bulb assembly
while turning
it
counterclockwise.
5.
Remove the bulb assembly from the back of the
lens and replace the bulb.
Move the lamp outboard
to
loosen the tabs.
Taillamps
6.
Turn the socket clockwise
to
reinstall it in the lens
assembly.
1.
Remove the two inboard nuts on the side assembly.
2.
Pull side assembly rearward
to
clear studs.
3.
Rotate side assembly on the outboard side,
4.
Slide assembly slightly upward
to
release lower clip.
5.
Reinstall the clips
to
the side assembly.
6.
Remove the three nuts on the taillamp.
7.
Remove the taillamp from the vehicle.
releasing the upper clip.
5-56
