Floor Console Fuse Block
The floor console fuse block is located on the
passenger’s side of the console behind the forward
panel.
The panel has four clips, one in each corner. Pull the
panel to disconnect the four clips, and access the fuses.
Use the fuse puller to remove fuses.

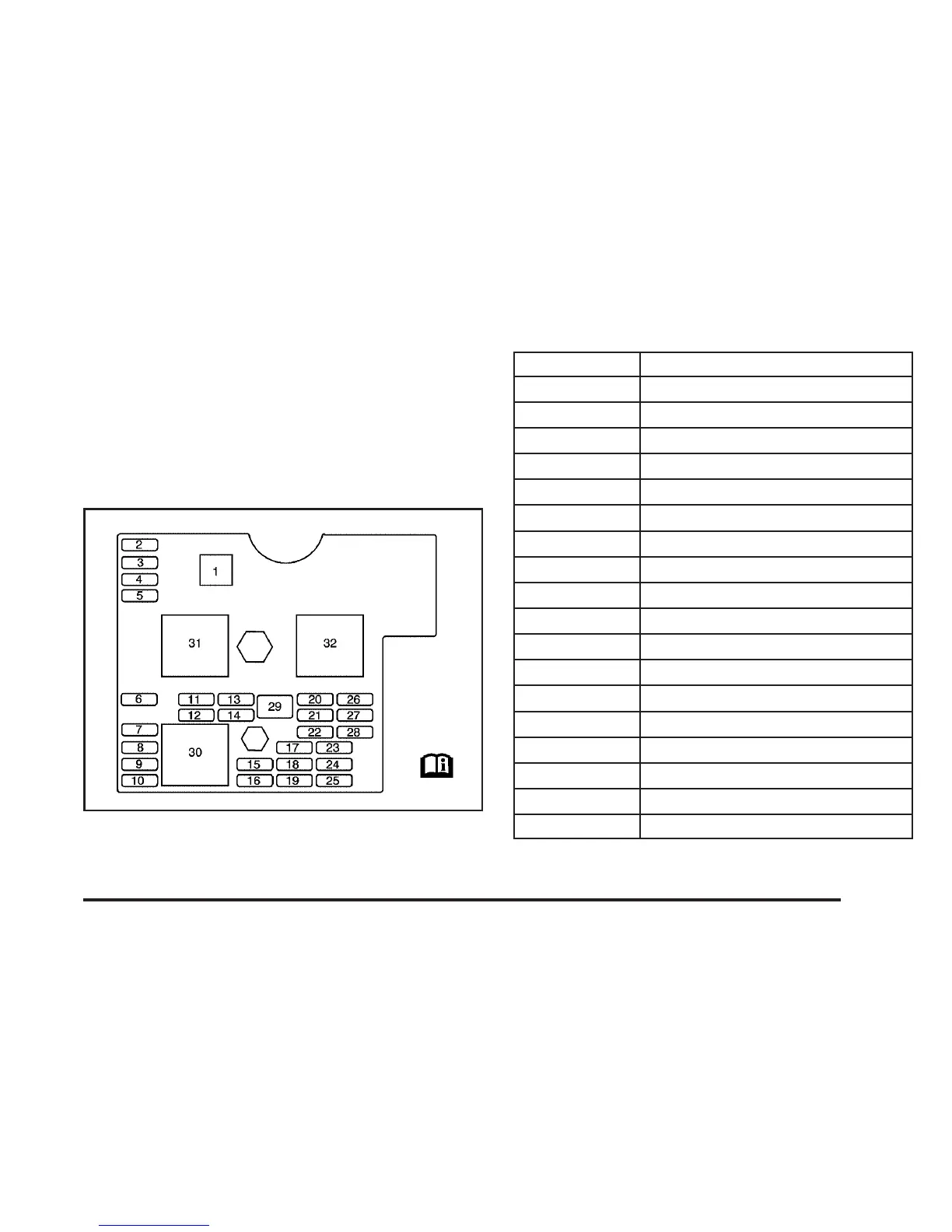

Fuses Usage
1 Fuse Puller
2 Spare
3 Spare
4 Spare
5 Spare
6 Amplifier
7 Cluster
8 Ignition Switch, PassKey
9 Stoplamp
10 Climate Control System, PassKey
11 Empty
12 Spare
13 Airbag
14 Spare
15 Wiper
16 Climate Control System, Ignition
17 Blank
18 Blank
