Rear Axle
When to Check Lubricant
Refer to the Maintenance Schedule to determine how
often to check the lubricant. See Scheduled
Maintenance on page 6-4.
How to Check Lubricant
To get an accurate reading, the vehicle should be on a
level surface.

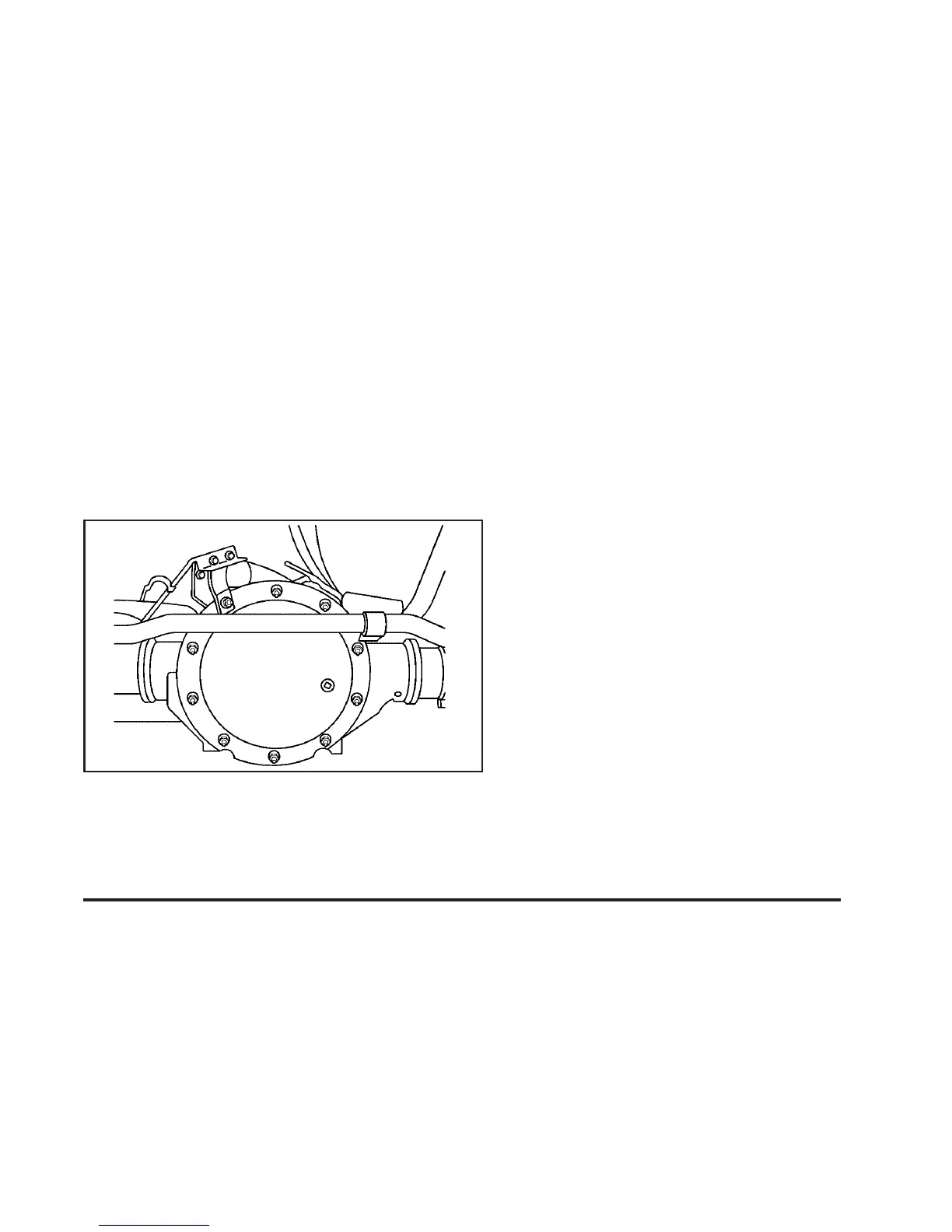

If you have the 1500 Series, the proper level is
from 5/8 inch (15 mm) to 1 5/8 inch (40 mm) below
the bottom of the filler plug hole. The proper level for
the 2500 and 3500 Series is from 0 to 1/4 (6 mm) below
the bottom of the filler plug hole. Add only enough
fluid to reach the proper level.
What to Use
Refer to the Maintenance Schedule to determine what
kind of lubricant to use. See Recommended Fluids
and Lubricants on page 6-13.
5-47
