Driving and Operating 9-77
screen can vary according to
vehicle orientation or road
conditions.

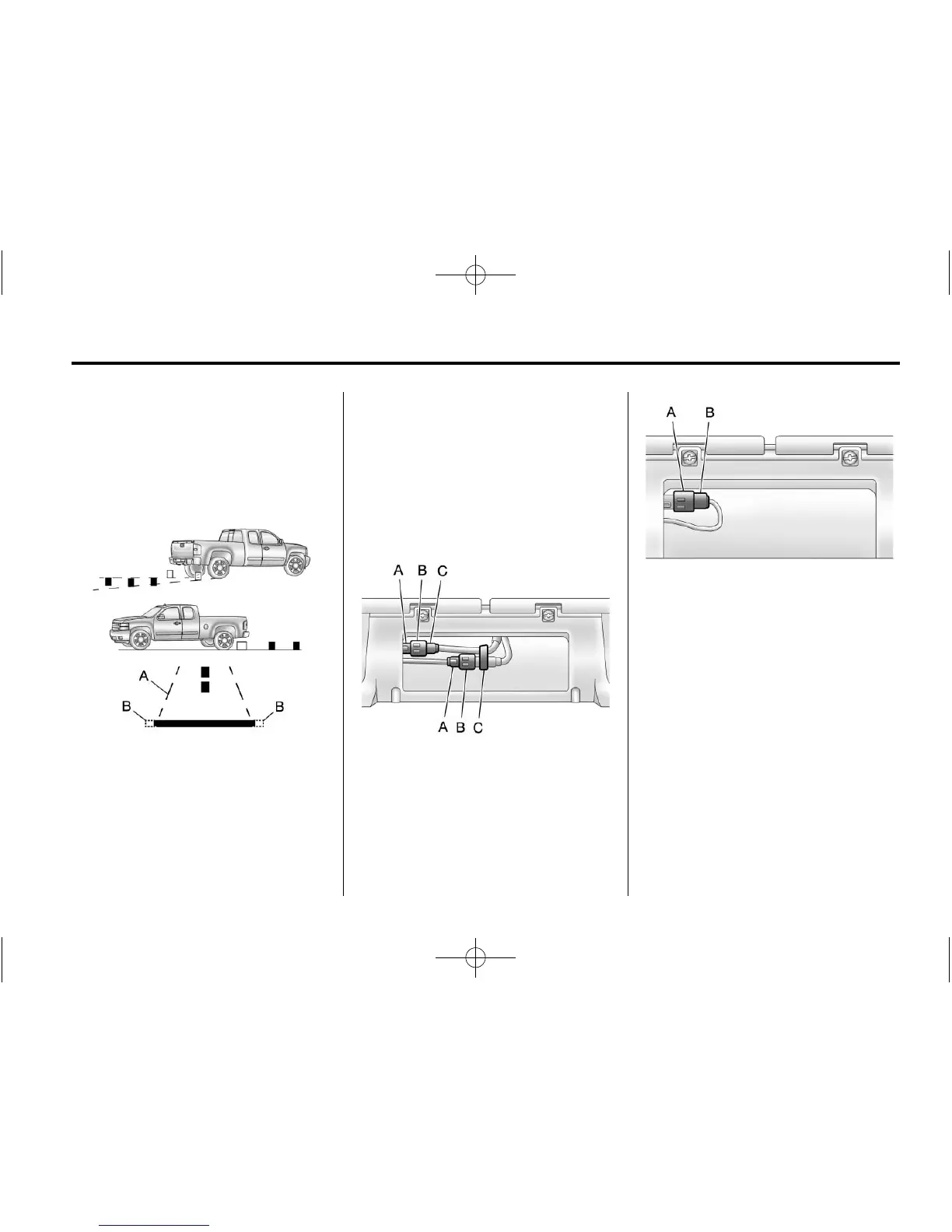

The following illustration shows the
field of view that the camera
provides.
A. View displayed by the camera
B. Corner of the rear bumper
Disconnecting the Rear Vision
Camera
The rear vision camera must be
disconnected if the tailgate needs
to be removed.
To disconnect the camera:
1. Remove the license plate.
2. Disconnect the camera
connectors from the chassis
harness, located behind the
license plate, by pressing on the
release tab on each connector.
A. Chassis harness connector
B. Release tab
C. Camera connector
3. Plug the two exposed chassis
harness connectors together to
prevent contamination.
A. Chassis harness connector
B. Release tab
4. Feed the wiring harness through
the pickup box, then plug the
camera connectors together to
prevent contamination.
5. Remove the tailgate. See
Tailgate on page 2‑10 for more
information.
6. Reinstall the license plate.
Reverse this procedure to reinstall
the rear vision camera and make
sure the grommet and connection
are secure.
