9-32 Vehicle Care
Taillamps, Turn Signal,
Sidemarker, Stoplamps,
and Back-Up Lamps

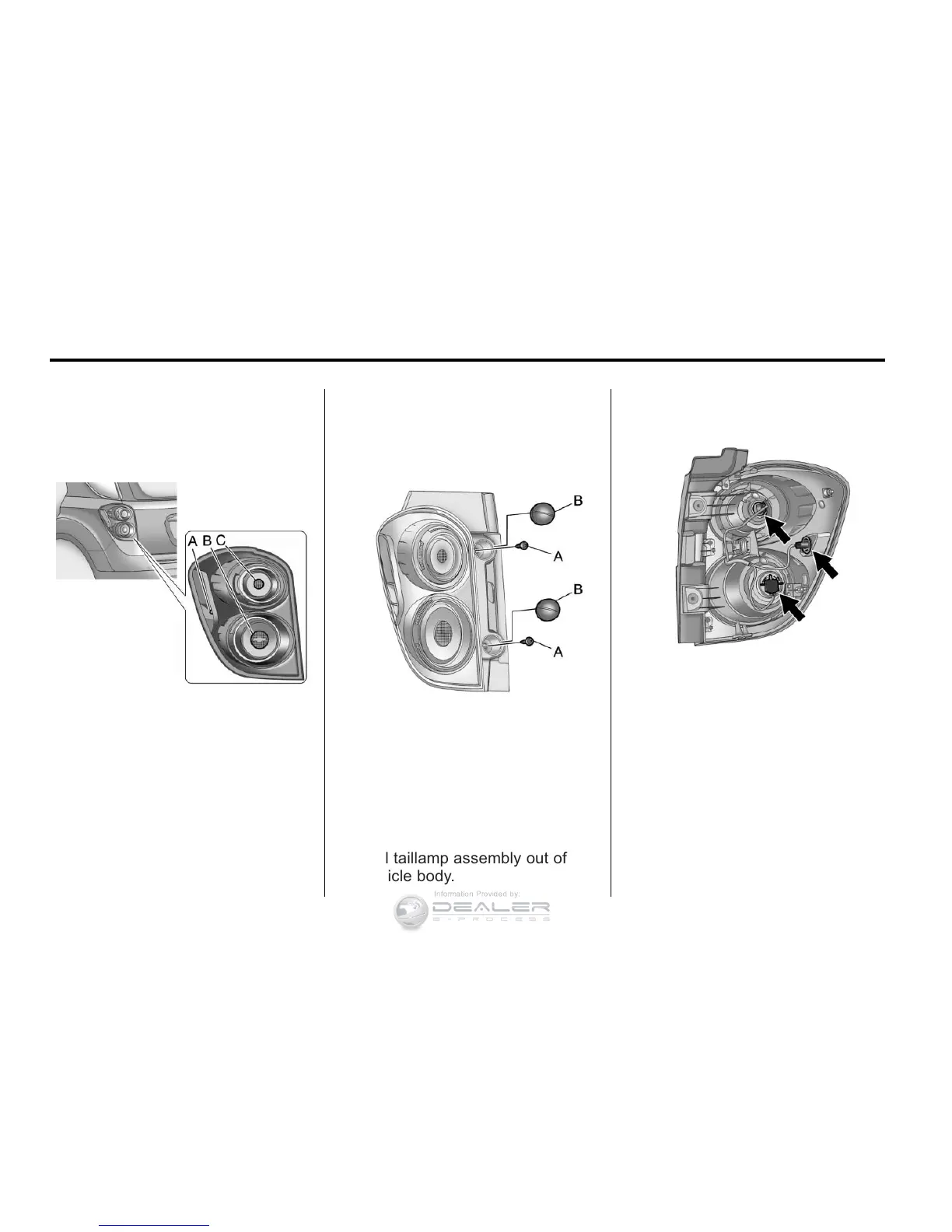

A. Sidemarker
B. Stoplamp/Turn Signal Lamp/
Taillamp
C. Back-up Lamp
To replace one of these lamps:
1. Open the liftgate. See Liftgate
(Manual)
on page 1‑8
or
Liftgate (Power) on page 1‑8.
A. Screw
B. Screw Cover
2. Remove the two screw
covers (B) from the taillamp
assembly.
3. Remove the two screws (A)
securing the taillamp assembly.
4. Pull taillamp assembly out of
vehicle body.
5. Disconnect the lamp wiring
harness.
6. Turn the bulb socket
counterclockwise and pull it out.
7. Pull the bulb straight out of the
socket.
8. Install the new bulb.
9. Push the bulb socket in and turn
it clockwise.
10. Reverse steps 2 through 5 to
reinstall lamp assembly.
