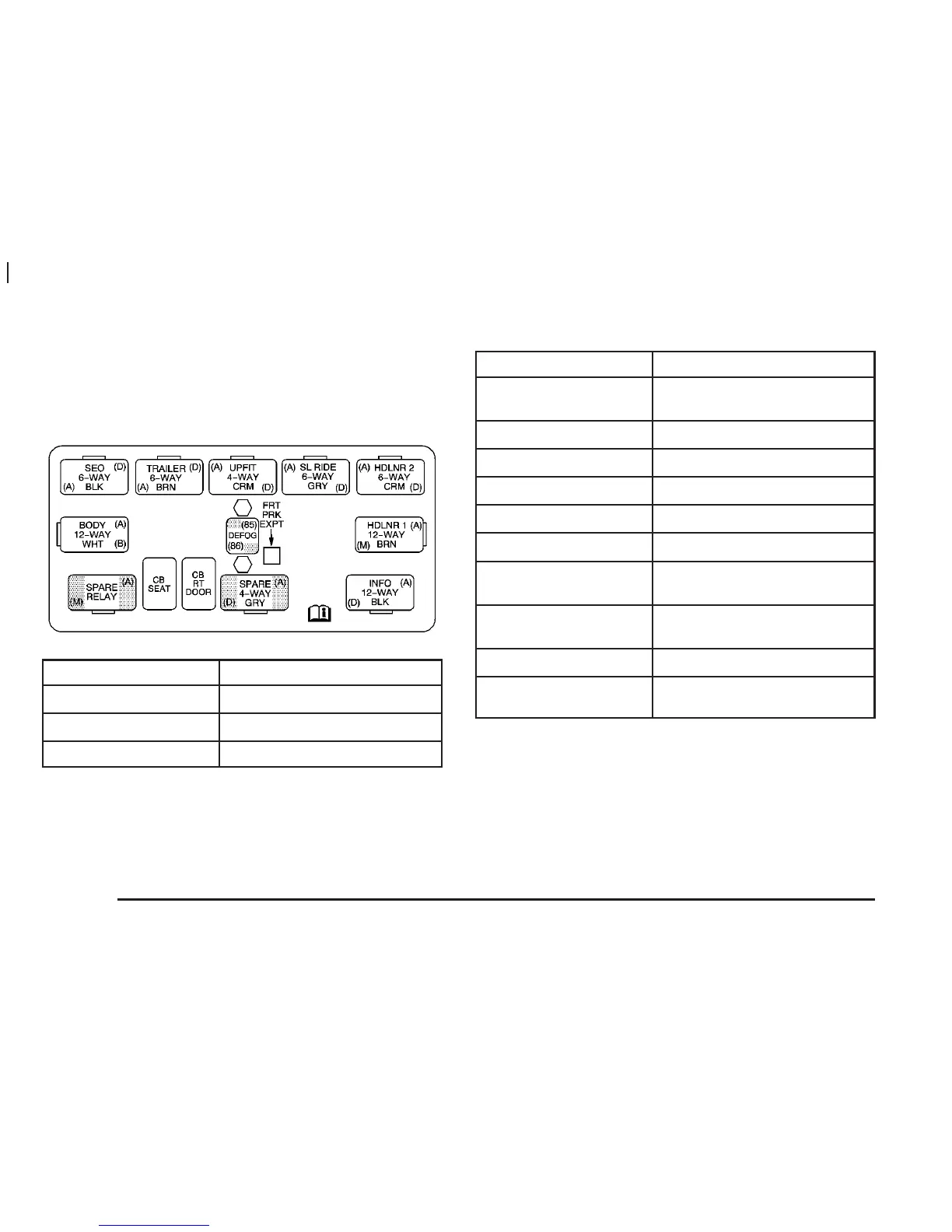

Center Instrument Panel Fuse Block
The center instrument panel utility block is located
underneath the instrument panel, to the left of the
steering column.
Device Usage
SEO Special Equipment Option
TRAILER Trailer Brake Wiring
UPFIT Upfitter (Not Used)
Device Usage
SL RIDE
Ride Control Harness
Connection
HDLR 2 Headliner Wiring Connector
BODY Body Wiring Connector
DEFOG Rear Defogger Relay
HDLNR 1 Headliner Wiring Connector 1
SPARE RELAY Not Used
CB SEAT
Driver and Passenger Seat
Module Circuit Breaker
CB RT DOOR
Right Power Window Circuit
Breaker
SPARE Not Used
INFO
Infotainment Harness
Connection
