Hardware Installation Guide for the Cisco 4451-X Integrated Services Router
OL-27644-01
Chapter 6 Installing and Upgrading Internal Modules and FRUs
Overview of the SSD Carrier Card NIM (NIM-SSD)
Installing the SSD Drives into the NIM Carrier Card
Follow these steps to insert one or two SSD drives into the carrier NIM:
Step 1 On the NIM-SSD, loosen the captive screws retaining the SSD card slot cover (Figure 6-8).

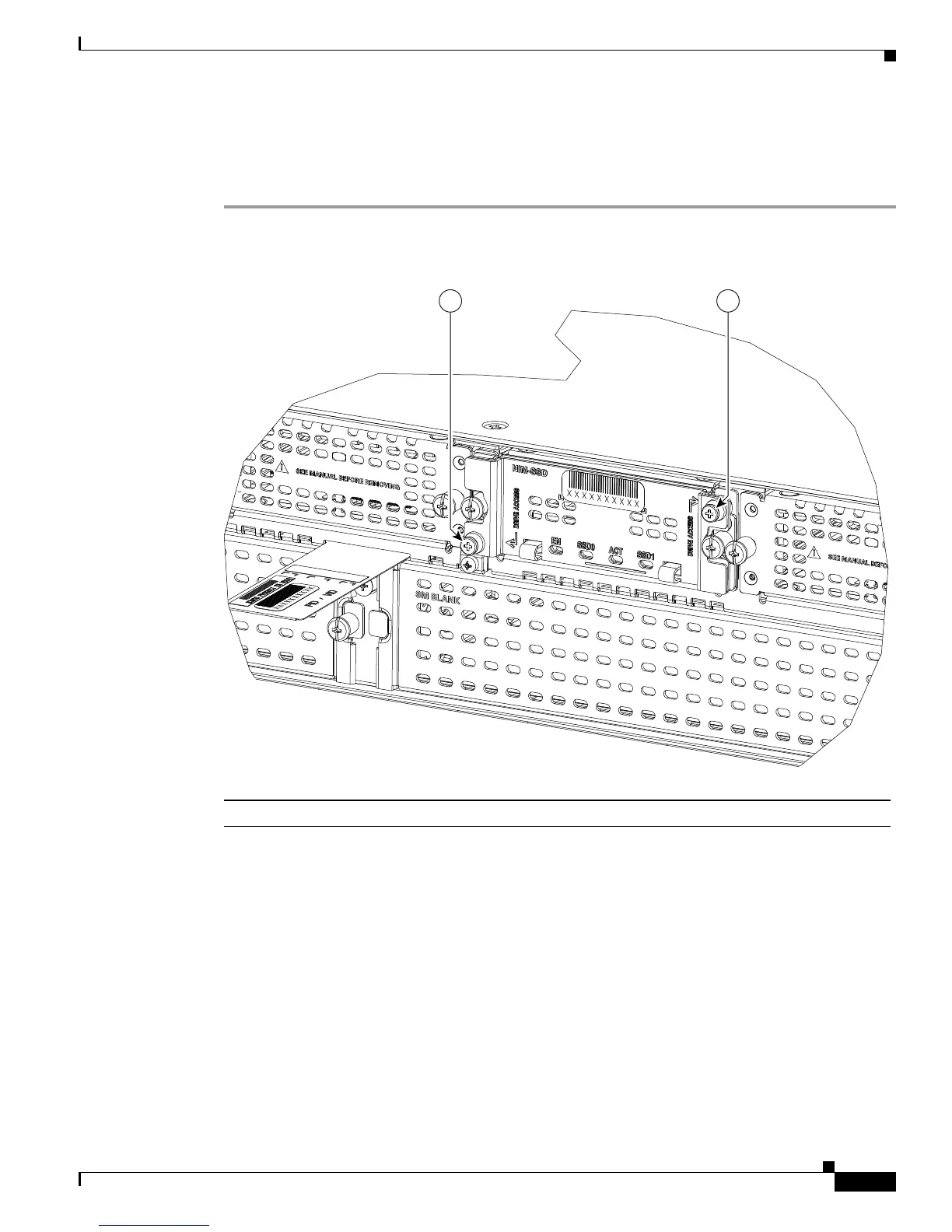

Figure 6-8 Opening the SSD Slot Cover
Step 2
Rotate the SSD card slot cover down, exposing the slots which hold the SSDs as shown in Figure 6-9.
11
347342
1. Captive screws on the SSD slot cover attaching the SSD Drive to the NIM Carrier Card
