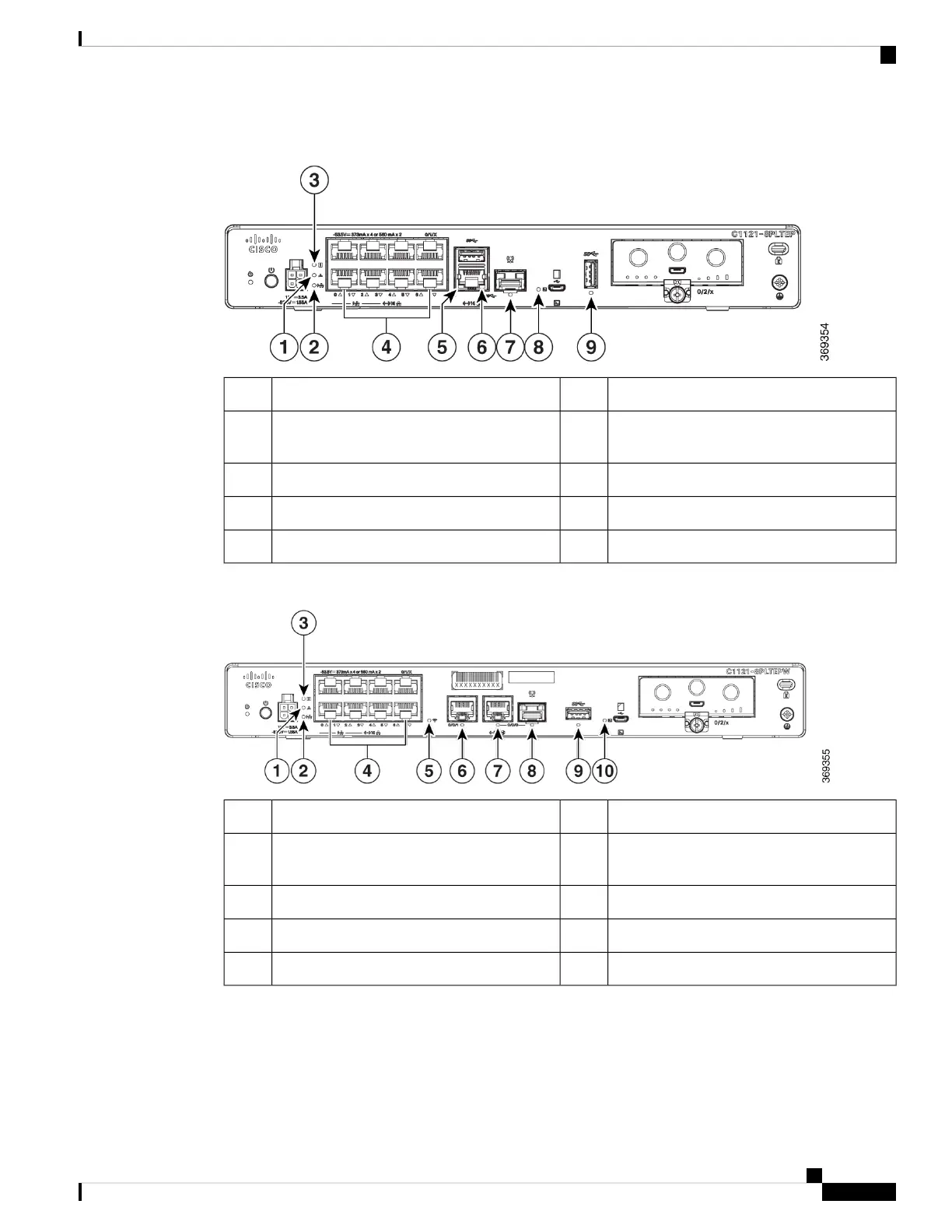

Figure 26: Cisco 11x1(X)-8P/ C11x1(X)-8PLTEP LED Indicators
PoE LED2VPN1
Ethernet Switch Ports 0-7 (0,2,4,6 at the top
and 1,3,5,7 at the bottom)
4Status3
GE 0/0/1 LED6GE 0/0/0 RJ45 LED5
Micro USB Console LED8GE 0/0/0 RJ45 LED7
USB LED9
Figure 27: Cisco 11x1(X)-8PLTEPWx LED Indicators
PoE LED2VPN1
Ethernet Switch Ports 0-7 (0,2,4,6 at the top
and 1,3,5,7 at the bottom)
4Status3
GE 0/0/0 RJ45 LED6Wi-Fi5
GE 0/0/0 SFP LED8GE 0/0/1 LED7
Micro USB Console LED10USB LED9
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
15
Overview of Cisco 1000 Series Integrated Services Routers
LED Indicators

Cisco C1111 8P Series Specifications

General

Product Series	Cisco 1100 Series
Model	C1111-8P
Form Factor	Desktop
Integrated Wi-Fi	No
Wireless	No
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Category	Router
WAN Ports	1 x GE
LAN Ports	8 x GE
Operating Temperature	32°F to 104°F (0°C to 40°C)
Remote Management Protocol	SNMP, HTTP, HTTPS
Features	Quality of Service (QoS), VLAN
