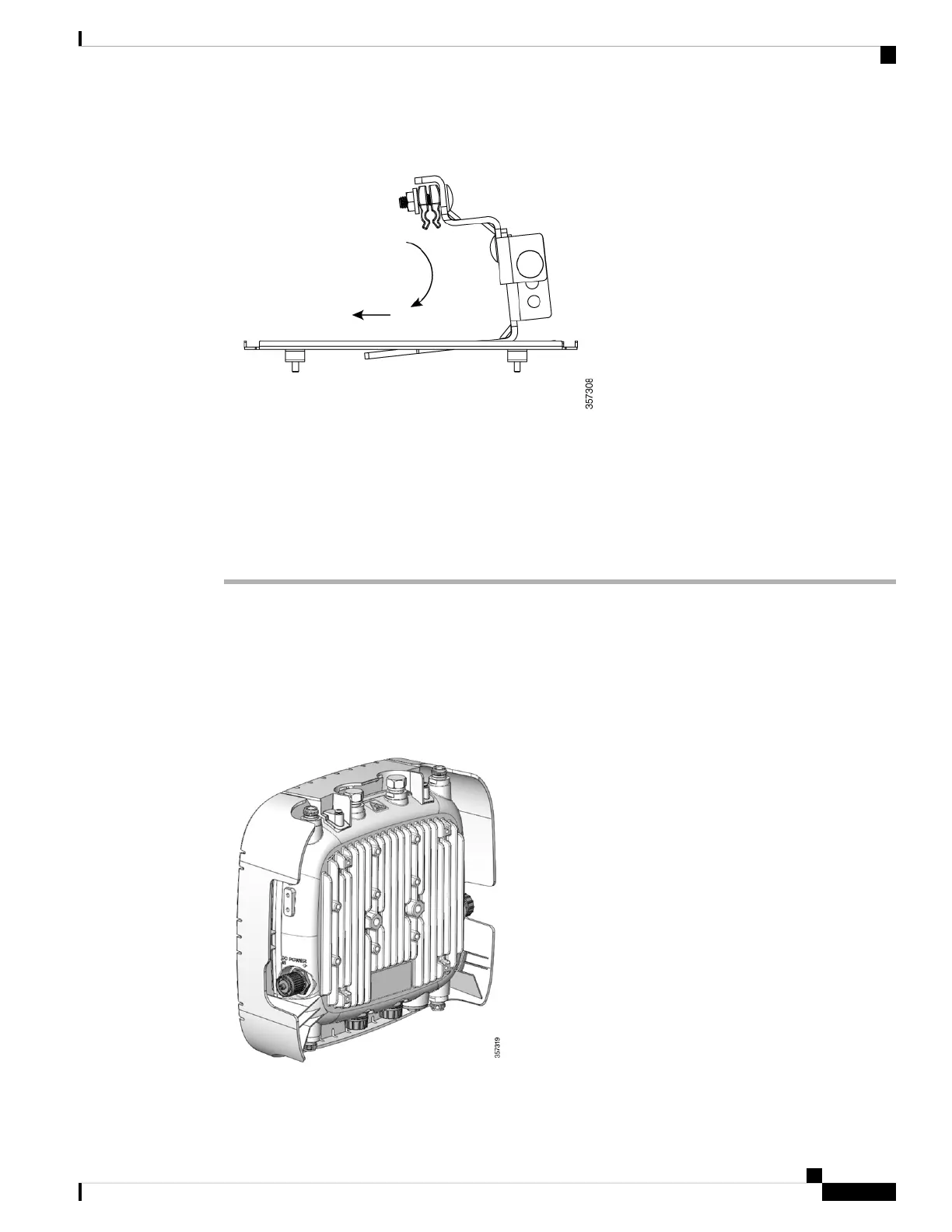

Figure 71: Assembling the cable bracket and Clamps
If needed, reposition the AP on the bracket assembly so it hangs level. Loosen the M8 screws just
enough to move on a slotted hole, then re-tighten the screws to 15 lbf-in (17 kgf-cm) of torque.
Note
Step 6 Connect the data cables, ground the AP, and power the AP.
You may require to pull the cable strand or support cable away from the fiber or cable bundle during
installation. Ensure to re-secure the cable after the installation.
Note
AP Paintable Cover Kit
You can install a cover C9124-CVR1= and paint these covers to blend the AP in its surrounding environment.
You can install the cover before or after all connections are completed. However, if you require to install the
remote cabled antennas, the shield may need to be installed before the antenna cables are attached to the AP.
Figure 72: AP with Paintable Cover Kit
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
63
Installation Overview
AP Paintable Cover Kit
