Cisco CGR 2010 User Manual

44
Installing and Connecting the Router
Connecting WAN and LAN Interfaces

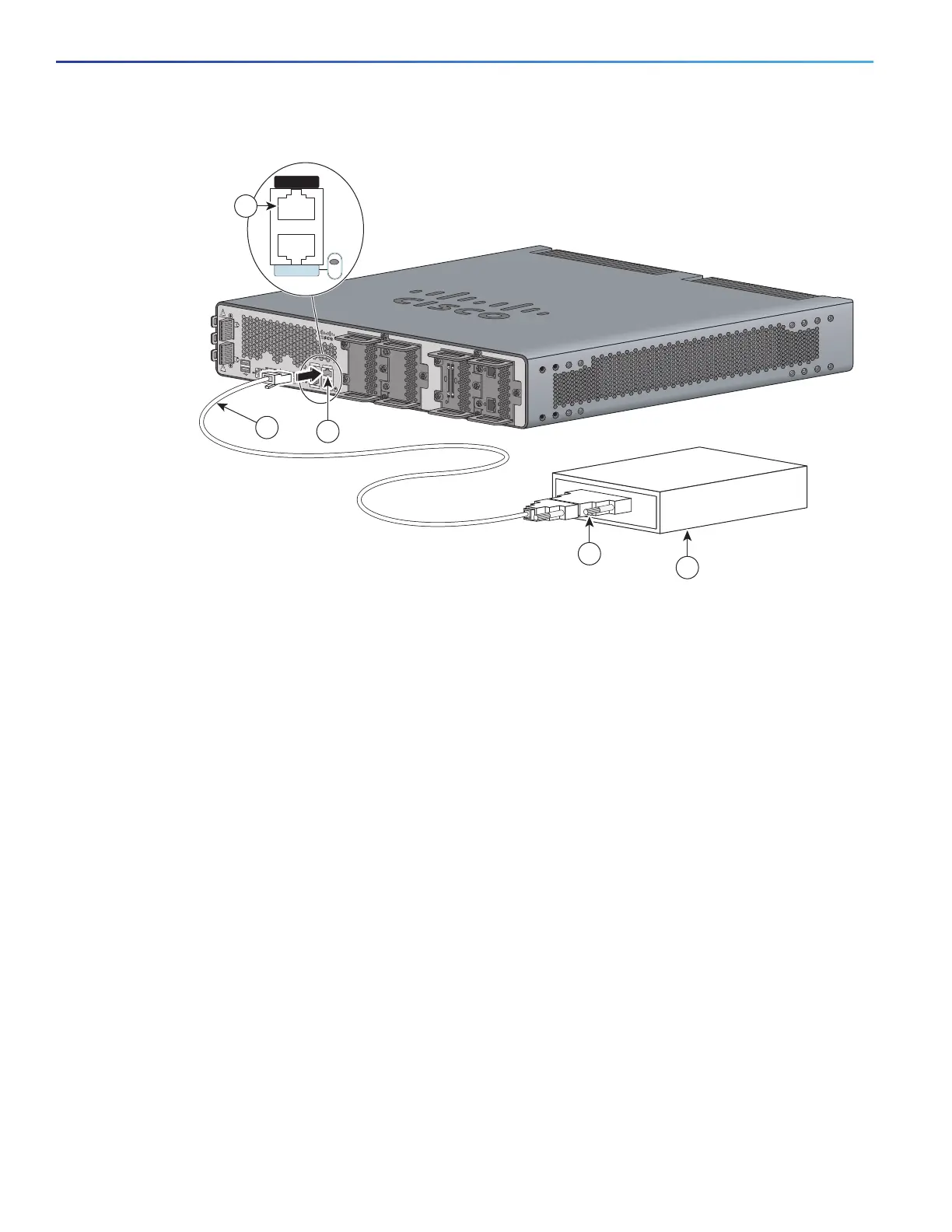

Figure 15 Connecting a Modem to the Cisco CGR 2010 Router
2. Connect the DB-9 end of the console cable to the DB-9 end of the modem adapter.
3. Connect the DB-25 end of the modem adapter to the modem.
4. Ensure that your modem and the router auxiliary port are configured for the same transmission speed (up to 115200
bps is supported) and for mode control with data carrier detect (DCD) and data terminal ready (DTR) operations.
Connecting WAN and LAN Interfaces
This section describes how to connect WAN and LAN interface cables.
Note: One or two Ethernet cables are typically provided with the router. Additional cables and transceivers can be
ordered from Cisco. For ordering information, contact customer service. For cable pinouts, see Cisco Modular Access
Router Cable Specifications.
Warning: Do not work on the system or connect or disconnect cables during periods of lightning activity. Statement
1001
Warning: To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network
voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain TNV circuits. Some LAN and WAN
ports both use RJ-45 connectors. Use caution when connecting cables. Statement 1021
Warning: Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF or
ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables, detach the end
away from the unit first. Statement 1026
1 RJ-45 AUX port 2 RJ-45-to-DB-9 cable
3 DB-9-to-DB-25 adapter 4 Modem
SFP 0/0
SFP 0/1
GE 0/0
GE 0/1
CONSOLE
AUX
EN
EN
Cisco CGR 2010
PSU2PSU1
L
N
N
L
+
Lo
-
-
Lo
+
277571
-
HI
+
+
HI
-
0
1
EN
SPD
CF
1
PS
2
ACT
SYS
0
1
S
L
S
L
SLOT 3 SLOT 2
SLOT 1 SLOT 0
CONSOLE
AUX
EN
1
2
1
3
4
CONN CONN
0-3
4-7
CD/LP AL CD/LP AL
P1 P0
