12 4024320 Rev A

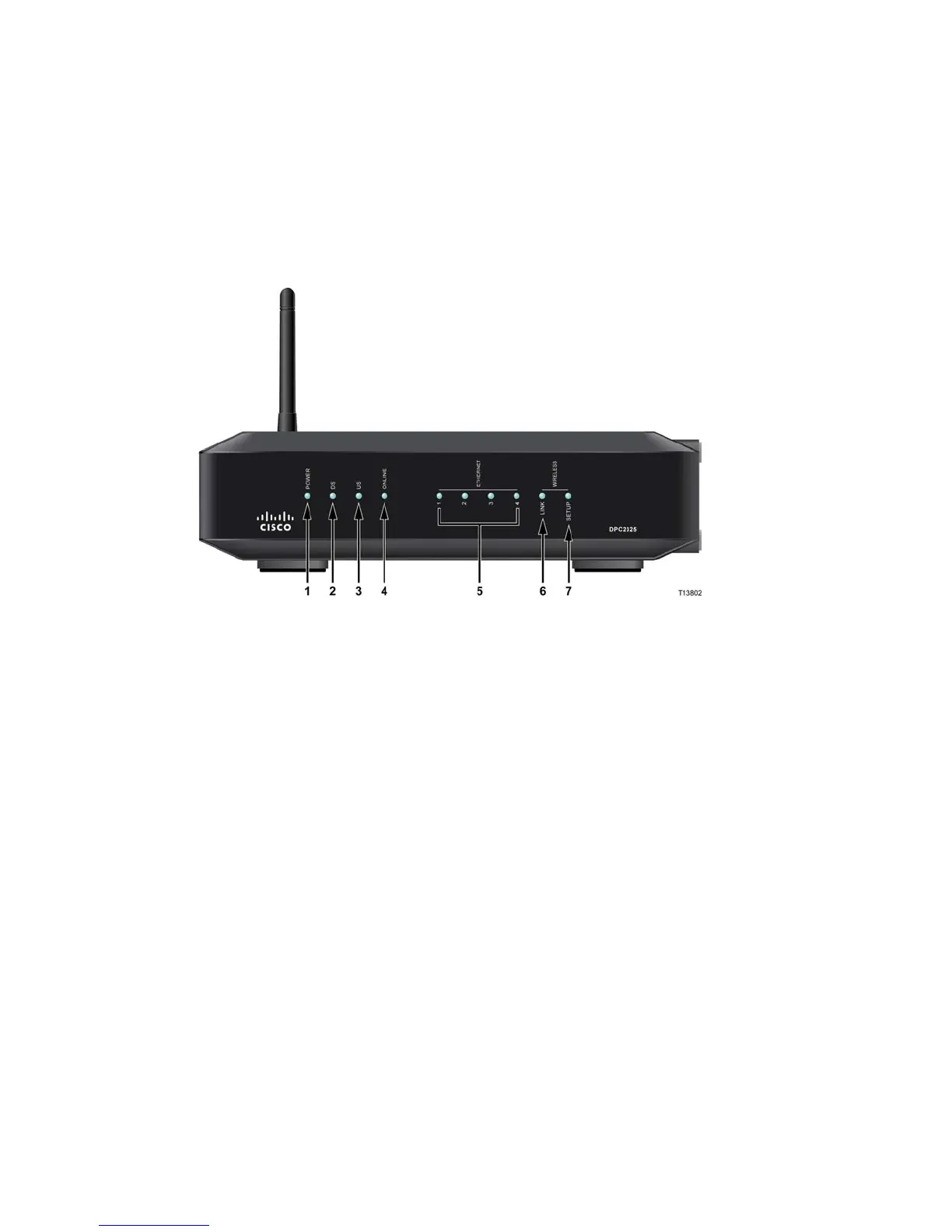

Front Panel Description

The front panel of your residential gateway provides LED status indicators that

indicate how well and at what state your residential gateway is operating. See Front

Panel LED Status Indicator Functions (on page

106), for more information on front

panel LED status indicator functions.

Model DPC2325

1 POWER—ON, power is applied to the wireless residential gateway

2 DS—ON, the wireless residential gateway is receiving data from the cable

network

3 US—ON, the wireless residential gateway is sending data to the cable network

4 ONLINE—ON, the wireless residential gateway is registered on the network and

fully operational

5 ETHERNET 1 - 4—ON, a device is connected to one of the Ethernet ports.

BLINKING indicates that data is being transferred over the Ethernet connection

6 WIRELESS LINK—ON, the Wireless Access Point is operational. BLINKING

indicates that data is being transferred over the wireless connection. OFF indicates

that the wireless access point has been disabled by the user

7 WIRELESS SETUP—OFF (normal condition) wireless setup is not active.

BLINKING indicates the user has activated wireless setup to add new wireless

clients on the wireless network
