Back Panel Description

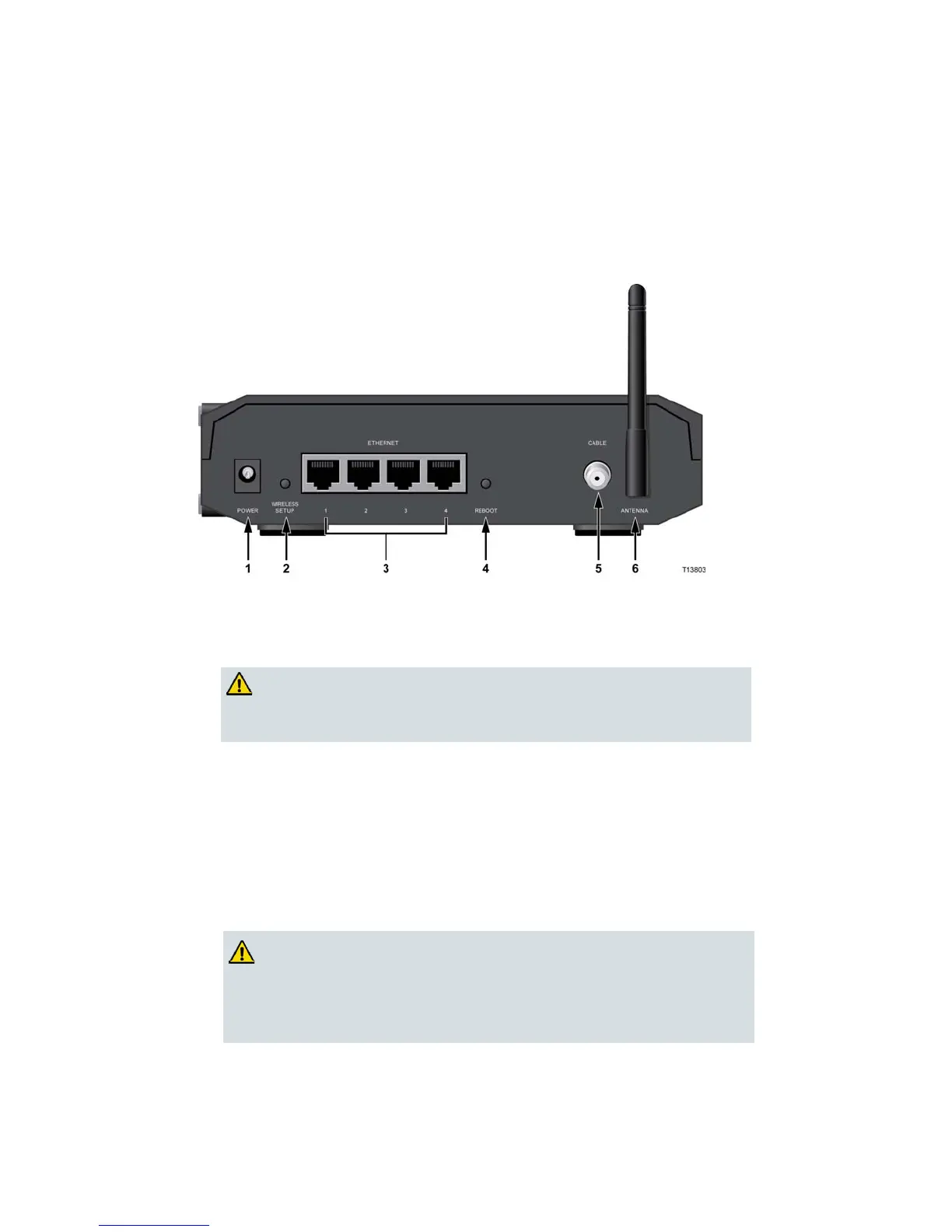

The following illustrations show the description and function of the back panel

components on the DPC/EPC2325.

External Power Supply Model

Model DPC/EPC2325

1 POWER—Connects the residential gateway to the power adapter that is provided with

your residential gateway

CAUTION:

Avoid damage to your equipment. Only use the power supply

that is provided with your residential gateway.

2 WIRELESS SETUP—Pressing this switch initiates wireless setup, this feature allows the

user to add new Wi-Fi Protected Setup (WPS) compliant wireless clients to the home

network

3 ETHERNET—Four RJ-45 Ethernet ports connect to the Ethernet port on your PC or your

home network

4 REBOOT—A momentary pressing (1-2 seconds) of this switch reboots the residential

gateway. Pressing the switch for more than ten seconds causes a reset-to-factory-default

of all settings and then reboots the gateway

CAUTION:

The Reboot button is for maintenance purposes only. Do not use

unless instructed to do so by your service provider. Doing so

may cause you to lose any cable modem settings you have

selected.

5 CABLE—F-connector connects to an active cable signal from your service provider

6 ANTENNA—Connection for external 802.11 antenna
