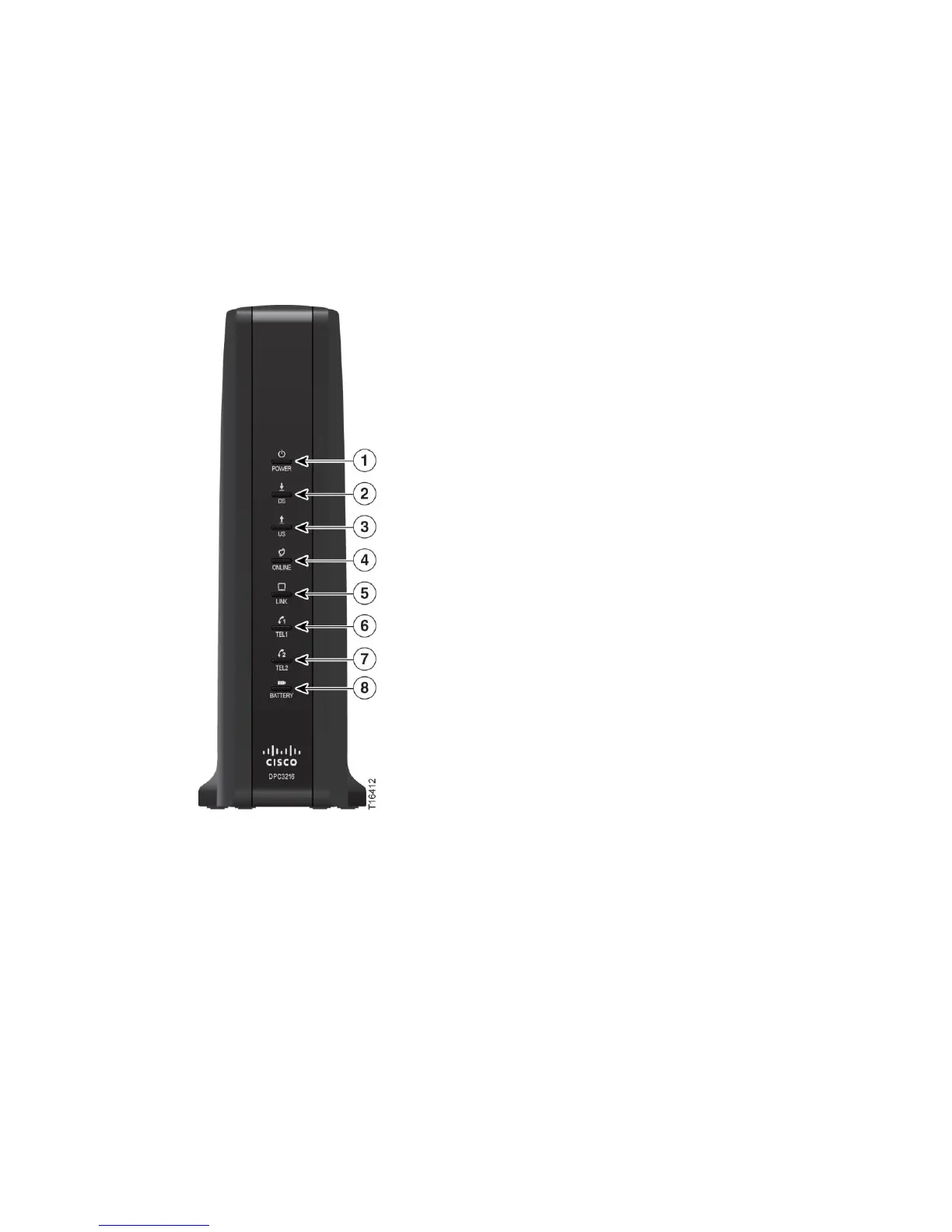

Front Panel Description
The front panel of your cable modem provides LED status indicators that indicate
how well and at what state your cable modem is operating. See Operation of Front
Panel Indicators (on page 21), for more information on front panel LED status
indicator functions.
1 POWER—ON, power is applied to the cable modem.
2 DS—ON, the cable modem is receiving data from the cable network.
3 US—ON, the cable modem is sending data to the cable network.
4 ONLINE—ON, the cable modem is registered on the network and fully
operational.
5 LINK—ON, a device is connected to the Ethernet port. BLINKING indicates that
data is being transferred over the Ethernet connection.
6 TEL1—ON indicates telephony service is enabled. Blinks when line 1 is in use.
OFF indicates that phone service for TEL 1 is not enabled.
