Appendix B Installation In a Hazardous Environment
Adding Modules to the Switch
Step 3 Push up the upper module latches (at the top of the switch and the module). See Figure B-4. Push down
the lower module latches (at the bottom of the switch and the module).

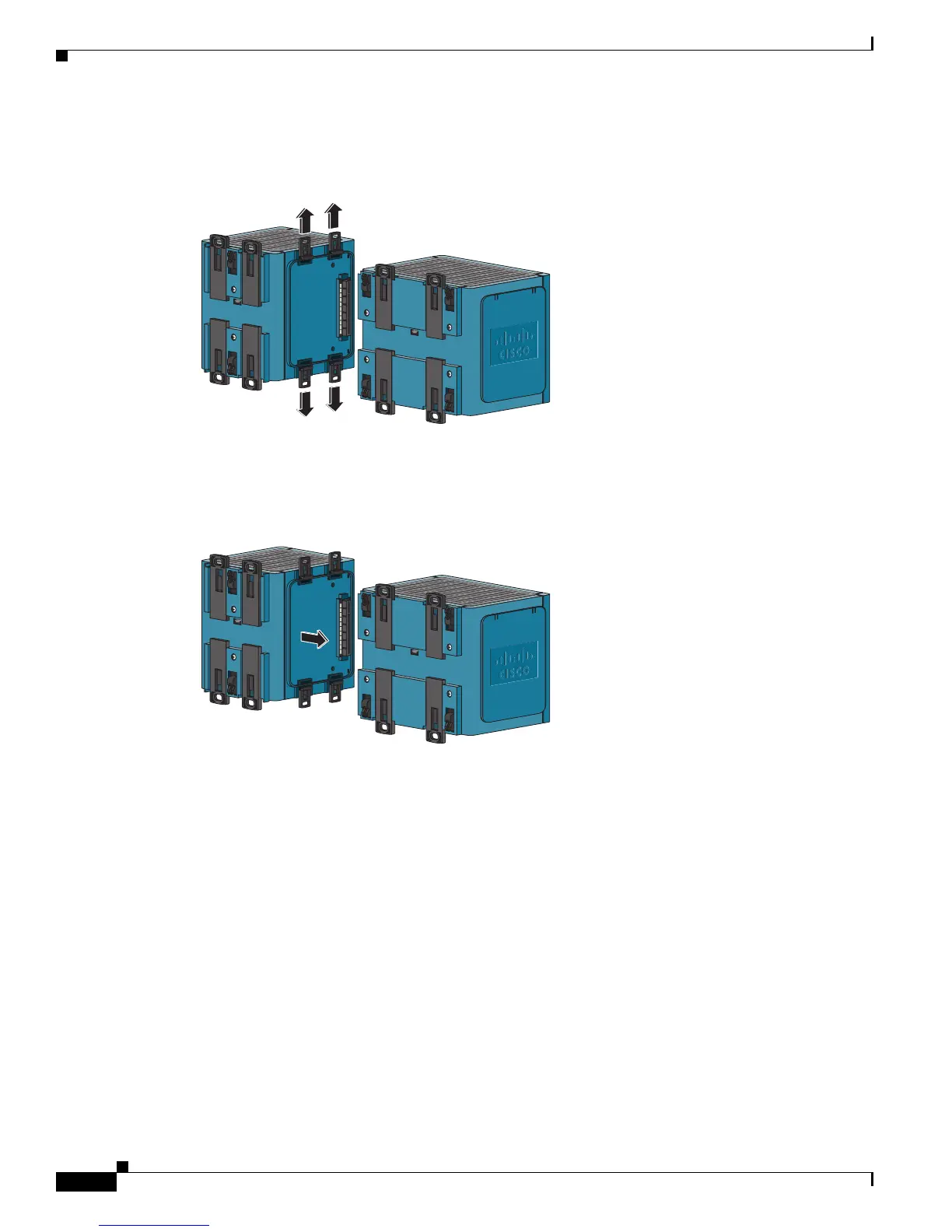

Figure B-4 Pushing the Module Latches Up
Step 4 Align the connectors on the switch and the module, and slide the switch and the module together to make
the connection. See
Figure B-5.
Figure B-5 Connecting the Switch and the Module
Step 5 Push the upper module latches down and the lower latches up. See Figure B-6.
201824
201825
